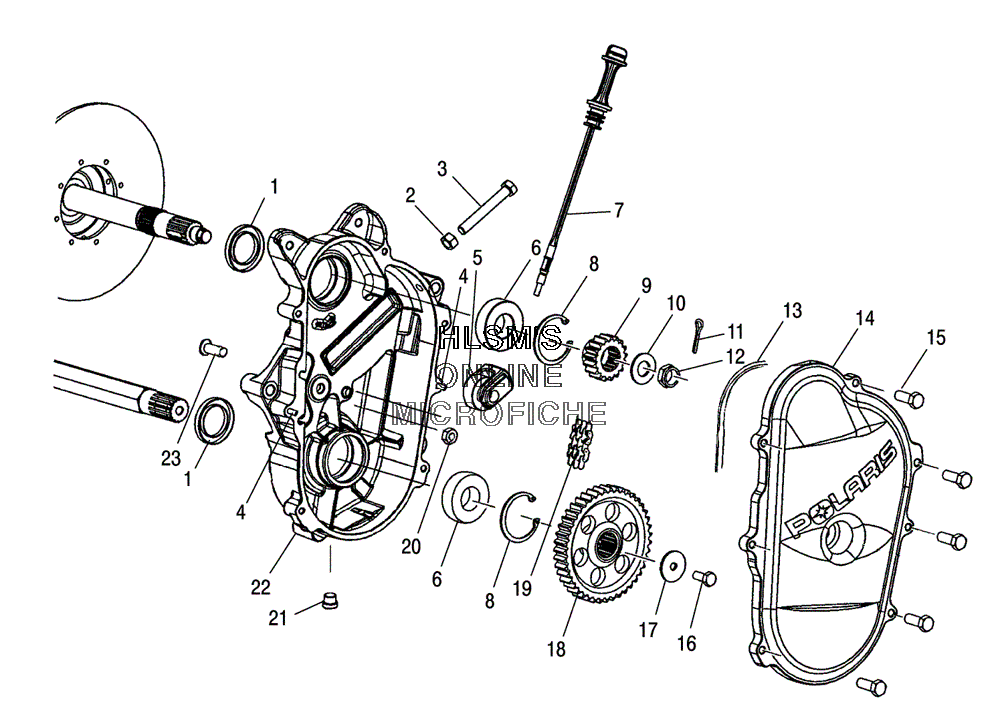

CHAINCASE ASSEMBLY для Polaris 800 EDGE TOURING (S05NT6ES) - 2005 года выпуска
-
№АртикулНазвание
-
13610030 SEAL, OIL (LEFT)SEAL, OIL (LEFT)
-
27542404 NUTNUT
-
37515459 SCREWSCREW
-
47661826 PIN, DOWELPIN, DOWEL
-
51341437 TIGHTENER, CHAIN ASSYTIGHTENER, CHAIN ASSY
-
63514309 BEARING, BALLBEARING, BALL
-
71332143 DIPSTICK ASSYDIPSTICK ASSY
-
75410675 O-RINGO-RING
-
87718406 RING, RETAININGRING, RETAINING
-
93221098 SPROCKET (22T, 3/4W 15 SPLINE HYVO PM)SPROCKET (22T, 3/4W 15 SPLINE HYVO PM)
-
107571620 WASHER, SPRINGWASHER, SPRING
-
117661203 PIN, COTTER (LEFT)PIN, COTTER (LEFT)
-
127547202 NUT 5/8-18 THIN, NYLON INSERT YNUT 5/8-18 THIN, NYLON INSERT Y
-
135812574 GASKET CHAINCASE COVERGASKET CHAINCASE COVER
-
145631354 COVER, CHAINCASECOVER, CHAINCASE
-
157512242 SCREW (LEFT)SCREW (LEFT)
-
167517979 SCREW HEXAGON HEAD NYLONSCREW HEXAGON HEAD NYLON
-
177571618 WASHER, SPRINGWASHER, SPRING
-
183222099 SPROCKET (40T/15T SPLINE HYVO PM)SPROCKET (40T/15T SPLINE HYVO PM)
-
193221109 CHAIN, HYVO (74P, 3/4W)CHAIN, HYVO (74P, 3/4W)
-
207542451 NUT, NYLOK (LEFT)NUT, NYLOK (LEFT)
-
217052115 PLUGLEFTPLUGLEFT
-
225134085 CHAINCASE (792 CD)CHAINCASE (792 CD)
-
237515477 SCREW, CARRIAGESCREW, CARRIAGE
