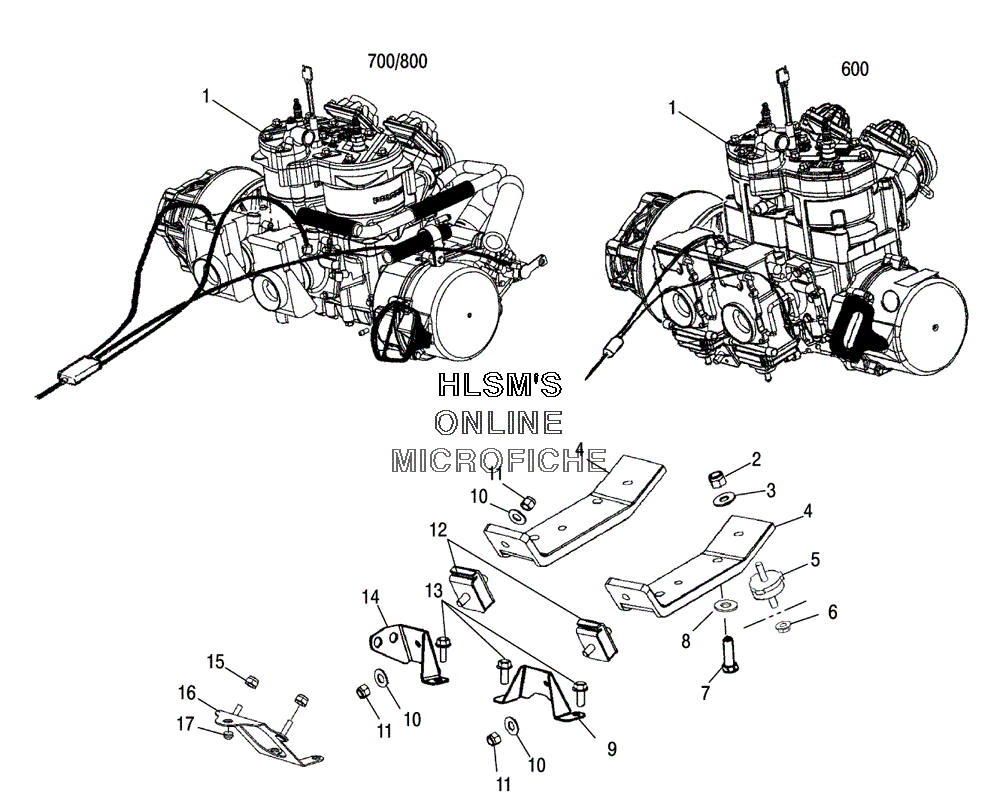

ENGINE MOUNTING W/ SHORT BLOCK для Polaris 800 RMK (S05NK6ES) - 2005 года выпуска
-
№АртикулНазвание
-
12202518 SHT KIT (BLACK)SHT KIT (BLACK)
-
27542451 NUT, NYLOKNUT, NYLOK
-
37555893 WASHER, FLATWASHER, FLAT
-
45245462 STRAP ENGINE MOUNT (LEFT)STRAP ENGINE MOUNT (LEFT)
-
45246381 STRAP ENGINE MOUNT (RIGHT)STRAP ENGINE MOUNT (RIGHT)
-
53021220 MOUNT ENGINEMOUNT ENGINE
-
67547180 NUT FLANGED 3/8-16 NYLON ZNUT FLANGED 3/8-16 NYLON Z
-
77512539 BOLTBOLT
-
87553101 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
95245044 BRACKET ENGINE MOUNT FORMED (RIGHT)BRACKET ENGINE MOUNT FORMED (RIGHT)
-
107555806 WASHER, FLATWASHER, FLAT
-
117547008 NUT, FLEXLOCKNUT, FLEXLOCK
-
123021206 MOUNT ENGINE, 3/8-16, RECTMOUNT ENGINE, 3/8-16, RECT
-
137517854 SCREW SPEC YSCREW SPEC Y
-
141013397 WELD ENGINE MOUNT BRACKET (LEFT)WELD ENGINE MOUNT BRACKET (LEFT)
-
157542122 NUT NYLOKNUT NYLOK
-
161014392 WELD BRACKET PUMP FUELWELD BRACKET PUMP FUEL
-
175410012 PLUG, RUBBER HOLE (.5DIA)PLUG, RUBBER HOLE (.5DIA)
