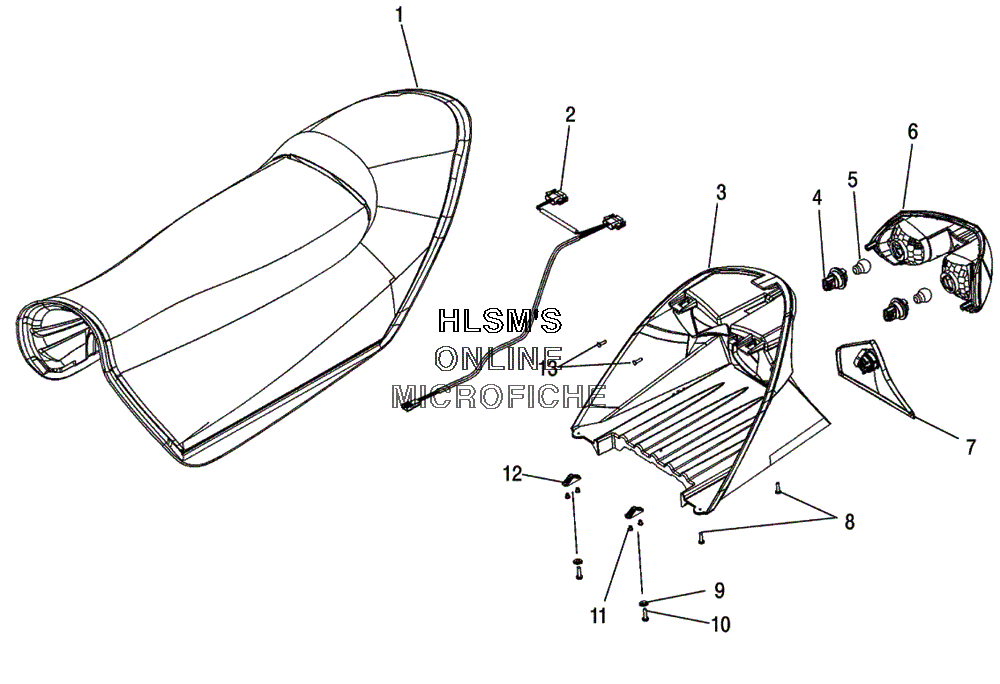

SEAT W/ TAILLIGHT для Polaris 900 FUSION (S05MP8DS) - 2005 года выпуска
-
№АртикулНазвание
-
12680002 ASM-SEATASM-SEAT
-
12680003 SEAT COVERSEAT COVER
-
22461162 HARNESS-TAILLIGHTHARNESS-TAILLIGHT
-
32632844-070 SEAT WEDGE ASM, BLACKSEAT WEDGE ASM, BLACK
-
32632844-453 ASM-SEAT WEDGE, S, AVAL GRAYASM-SEAT WEDGE, S, AVAL GRAY
-
44011009 SOCKET-BULB, AXIALSOCKET-BULB, AXIAL
-
54010764 BULB-TAILLIGHTBULB-TAILLIGHT
-
62410378 ASM-TAIL LAMPASM-TAIL LAMP
-
72632826-070 DOOR ASM, SEAT WEDGE, BLACKDOOR ASM, SEAT WEDGE, BLACK
-
72632826-453 DOOR ASM, SEAT WEDGE, AVAL GRAYDOOR ASM, SEAT WEDGE, AVAL GRAY
-
87518269 SCR-10X3/4-HI/LO, FH, PH, YSCR-10X3/4-HI/LO, FH, PH, Y
-
97558301 WASHER, FLATWASHER, FLAT
-
107517219 SCREWSCREW
-
117621319 RIVET, POP, 5/32"RIVET, POP, 5/32"
-
125631194 NUT-SEATNUT-SEAT
-
137512026 SCREWSCREW
