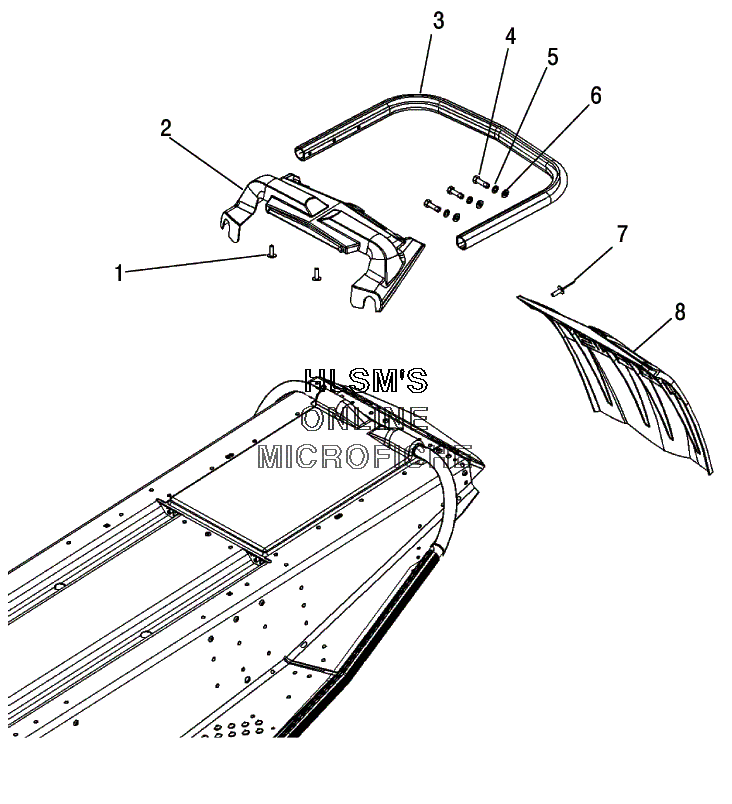

CHASSIS - REAR для Polaris 900 FUSION (S05MP8DSA) (STOCK A) - 2005 года выпуска
-
№АртикулНазвание
-
17512026 SCREWSCREW
-
22632994-070 ASM-COOLER COVER, BLK (INCL. DECAL)ASM-COOLER COVER, BLK (INCL. DECAL)
-
32632989-309 ASM-BUMPER, REAR, 121, NATURALASM-BUMPER, REAR, 121, NATURAL
-
47512113 BOLTBOLT
-
57552801 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
67558301 WASHER, FLATWASHER, FLAT
-
77621472 RIVETRIVET
-
85434954-1038 FLAP-SNOW, BLACK/WHTFLAP-SNOW, BLACK/WHT
