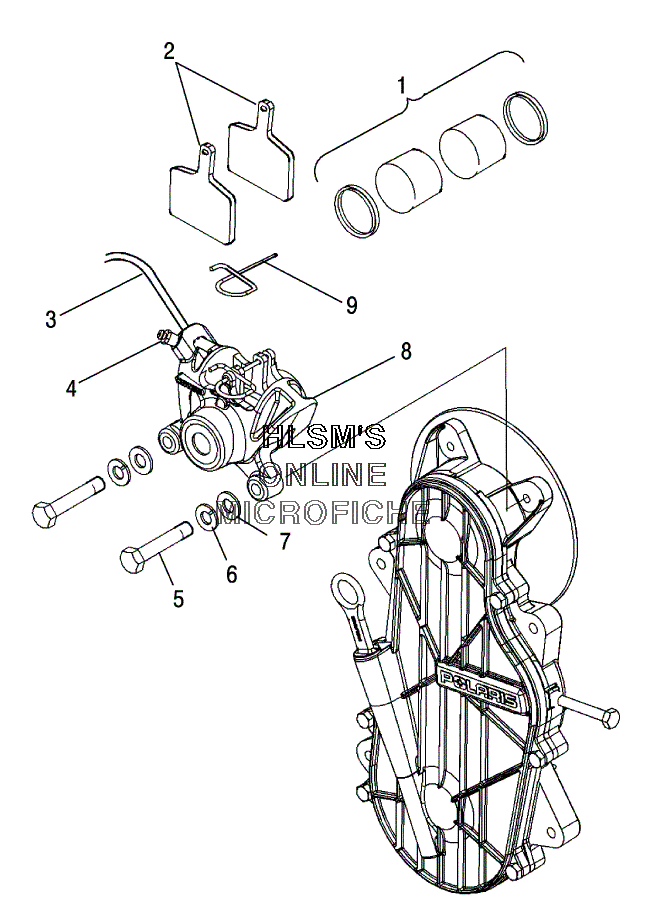

BRAKE ASSEMBLY для Polaris 900 FUSION (S05MP8DSC) (50TH MODEL) - 2005 года выпуска
-
№АртикулНазвание
-
12202207 KIT-PISTON/SEALKIT-PISTON/SEAL
-
12202204 KIT-SEALKIT-SEAL
-
22202727 KIT-BRAKE PAD, TYPE 94 (INCL. 9)KIT-BRAKE PAD, TYPE 94 (INCL. 9)
-
32202787 KIT-HOSE 25.68 1/4''X1/4'' IFKIT-HOSE 25.68 1/4''X1/4'' IF
-
42202205 KIT-BLEEDER FITTINGKIT-BLEEDER FITTING
-
57515534 SCREWSCREW
-
67552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
77556160 WASHER, .380X.813X.150WASHER, .380X.813X.150
-
82202728 KIT-ASM, BRAKE CALIPER AIRKIT-ASM, BRAKE CALIPER AIR
-
92202206 KIT-PIN RETAININGKIT-PIN RETAINING
