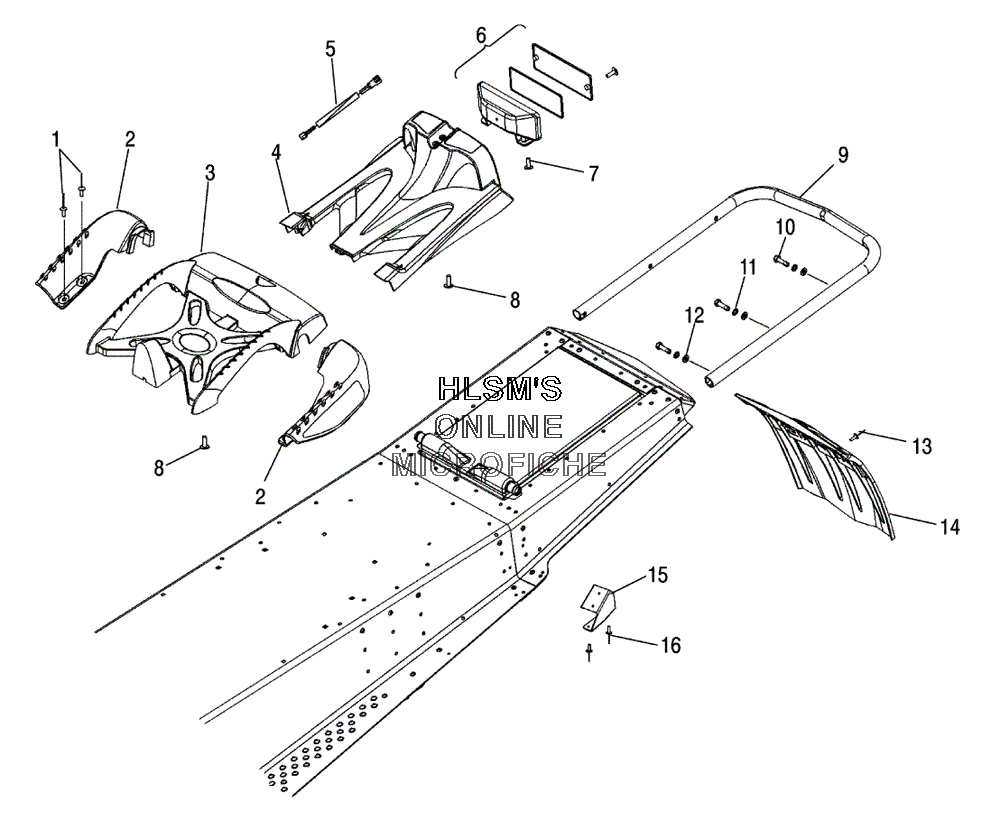

CHASSIS - REAR для Polaris 900 RMK 50th ANNIVERSARY (S05PL8) - 2005 года выпуска
-
№АртикулНазвание
-
17621467 RIVET, BLINDRIVET, BLIND
-
25430014-070 COVER GRIPPER/DEICER (BLACK/LEFT) (144" / 151")COVER GRIPPER/DEICER (BLACK/LEFT) (144" / 151")
-
25430015-070 COVER GRIPPER/DEICER (BLACK/RIGHT) (144" / 151")COVER GRIPPER/DEICER (BLACK/RIGHT) (144" / 151")
-
25435566-070 COVER GRIPPER, LONG (BLACK/LEFT) (159" / 166")COVER GRIPPER, LONG (BLACK/LEFT) (159" / 166")
-
25435567-070 COVER GRIPPER, LONG (BLACK/RIGHT) (159" / 166")COVER GRIPPER, LONG (BLACK/RIGHT) (159" / 166")
-
35435237-070 RACK (REAR/BLACK) (144" / 151")RACK (REAR/BLACK) (144" / 151")
-
35435371-070 RACK BASIC (BLACK/REAR) (159" / 166")RACK BASIC (BLACK/REAR) (159" / 166")
-
42632983-070 COVER, CLOSEOFF ASSY (BLACK) (144" / 151")COVER, CLOSEOFF ASSY (BLACK) (144" / 151")
-
42632984-070 COVER, CLOSEOFF COOLER (159" / 166")COVER, CLOSEOFF COOLER (159" / 166")
-
52410543 HARNESS TAILLIGHTHARNESS TAILLIGHT
-
62410544 TAILLIGHT, ASSYTAILLIGHT, ASSY
-
64032014 LENSLENS
-
64030043 BULBBULB
-
64032015 GASKETGASKET
-
67518019 SCREW 10X.5 PUSH PIN/HI-LOW 2 (BLACK)SCREW 10X.5 PUSH PIN/HI-LOW 2 (BLACK)
-
77512026 SCREWSCREW
-
87518158 SCREW HI/LO PUSH PIN TORXSCREW HI/LO PUSH PIN TORX
-
92632988-309 BUMPER NATURAL (REAR) (144" / 151")BUMPER NATURAL (REAR) (144" / 151")
-
92633013-309 BUMPER ASSY LONG, NATURAL (REAR) (159" / 166")BUMPER ASSY LONG, NATURAL (REAR) (159" / 166")
-
107512113 BOLTBOLT
-
117552801 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
127558301 WASHER, FLATWASHER, FLAT
-
137621472 RIVETRIVET
-
145434954-1038 FLAP-SNOW (BLACK/WHTFLAP-SNOW (BLACK/WHT
-
155248576 BRACKET GRIPPER COVER, LONG (LEFT) (159" / 166")BRACKET GRIPPER COVER, LONG (LEFT) (159" / 166")
-
155248577 BRACKET GRIPPER COVER, LONG (RIGHT) (159" / 166")BRACKET GRIPPER COVER, LONG (RIGHT) (159" / 166")
-
155247876 BRACKET GRIPPER COVER (144" / 151") (LEFT)BRACKET GRIPPER COVER (144" / 151") (LEFT)
-
155247877 BRACKET GRIPPER COVER (144" / 151") (RIGHT)BRACKET GRIPPER COVER (144" / 151") (RIGHT)
-
167661637 RIVET, INTERLOCK ZRIVET, INTERLOCK Z
