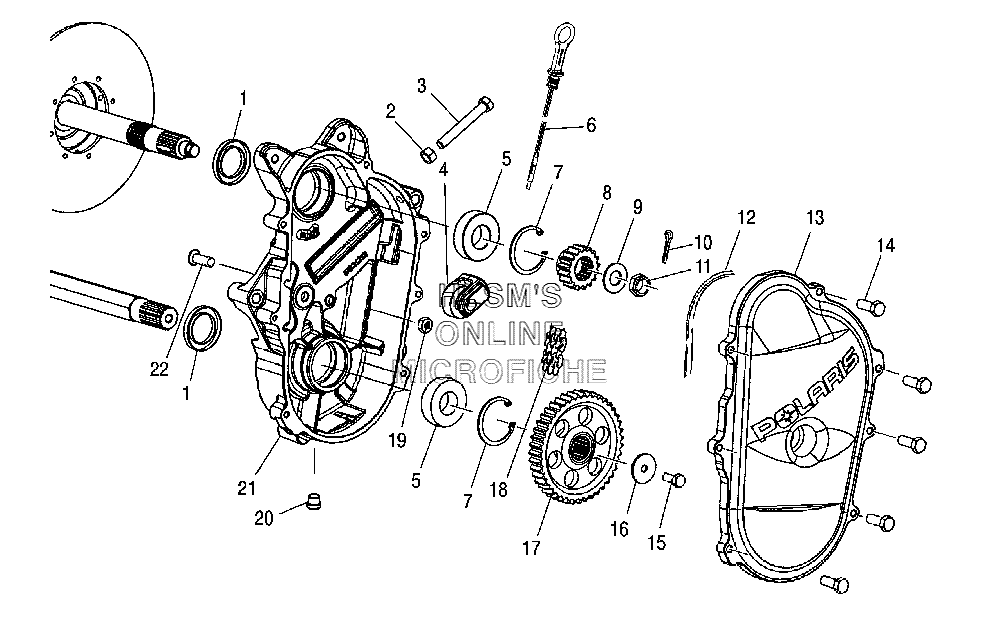

CHAINCASE ASSEMBLY для Polaris 340 Touring (S06NT3AS) - 2006 года выпуска
-
№АртикулНазвание
-
13610030 SEAL, OILSEAL, OIL
-
27542404 NUTNUT
-
37515459 SCREWSCREW
-
41341437 TIGHTENER, CHAIN ASSYTIGHTENER, CHAIN ASSY
-
53514309 BEARING, BALL (#6205)BEARING, BALL (#6205)
-
61332143 DIPSTICK ASSY (INCL. O-RING)DIPSTICK ASSY (INCL. O-RING)
-
65410675 O-RINGO-RING
-
77718406 RING, RETAININGRING, RETAINING
-
83221093 SPROCKET, HYVO (17 TEETH) (3/4W) (15 SPLINE)SPROCKET, HYVO (17 TEETH) (3/4W) (15 SPLINE)
-
97571620 WASHER, SPRINGWASHER, SPRING
-
107661203 PIN, COTTERPIN, COTTER
-
117547202 NUT, NYLON THINNUT, NYLON THIN
-
125812574 GASKET CHAINCASE COVER (7.92 CD)GASKET CHAINCASE COVER (7.92 CD)
-
135631354 COVER, CHAINCASE (7.92 CD)COVER, CHAINCASE (7.92 CD)
-
147512242 SCREWSCREW
-
157517979 SCREW, HEXAGON HEAD NYLONSCREW, HEXAGON HEAD NYLON
-
167571618 WASHER, SPRINGWASHER, SPRING
-
173222101 SPROCKET (41/15 TEETH) (SPLINE) (HYVO)SPROCKET (41/15 TEETH) (SPLINE) (HYVO)
-
183221110 CHAIN, HYVO (72P) (3/4W)CHAIN, HYVO (72P) (3/4W)
-
197542451 NUT, NYLOKNUT, NYLOK
-
207052115 PLUGPLUG
-
215134085 CHAINCASE (7.92 CD)CHAINCASE (7.92 CD)
-
227515477 SCREW, CARRIAGESCREW, CARRIAGE
