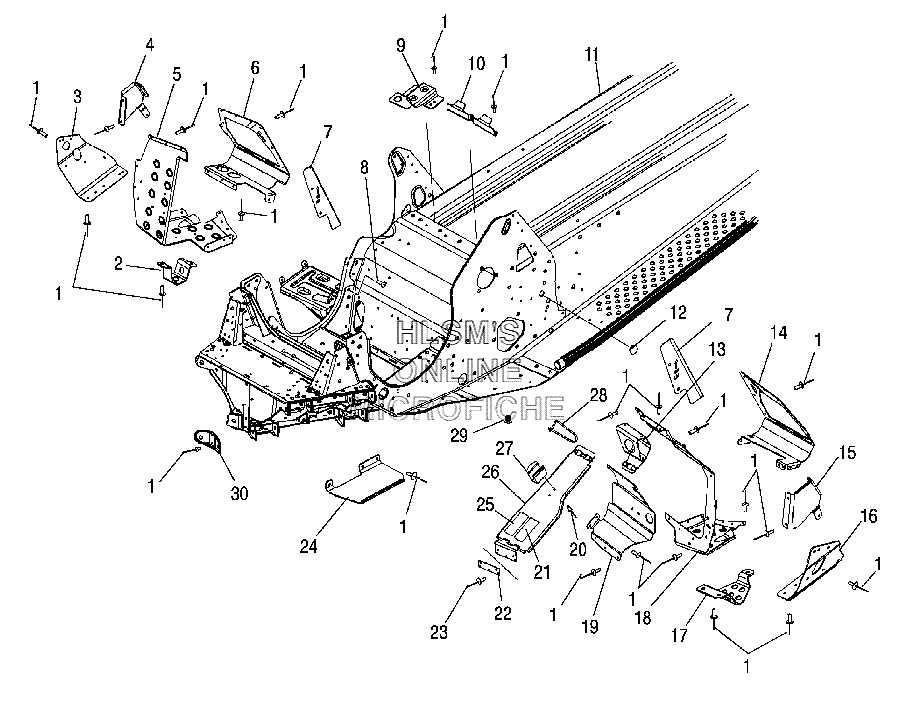

CHASSIS - FRONT #1 для Polaris 600 HO Fusion Dragon (SO6MC6FS) - 2006 года выпуска
-
№АртикулНазвание
-
17661637 RIVET, INTERLOCKRIVET, INTERLOCK
-
25248945 LEG-SUPPORT (RIGHT)LEG-SUPPORT (RIGHT)
-
35248808 SUPPORT-FOOTREST (LOWER/RIGHT)SUPPORT-FOOTREST (LOWER/RIGHT)
-
45248401 SUPPORT-FOOTREST, BUMPER (LEFT)SUPPORT-FOOTREST, BUMPER (LEFT)
-
51015091 FOOTREST ASM W/STUD (RIGHT)FOOTREST ASM W/STUD (RIGHT)
-
65248477 TOECLIP-RIGHT HANDTOECLIP-RIGHT HAND
-
75249677 CLIP-BULKHEAD SIDE (LEFT)CLIP-BULKHEAD SIDE (LEFT)
-
75249678 CLIP-BULKHEAD SIDE (RIGHT)CLIP-BULKHEAD SIDE (RIGHT)
-
87517810 SCREWSCREW
-
95249094 BRACKET-OIL BOTTLE, LOWERBRACKET-OIL BOTTLE, LOWER
-
105249666 BRACKET-AIRBOX, LOWERBRACKET-AIRBOX, LOWER
-
111014607-309 CHASSIS ASSY., RC 6 NATCHASSIS ASSY., RC 6 NAT
-
111014607-1209 CHASSIS ASSY. (BLACK)CHASSIS ASSY. (BLACK)
-
111015000-309 CHASSIS ASSY., RC 6, M-10CHASSIS ASSY., RC 6, M-10
-
111015000-1209 CHASSIS ASSY., RC 6, M-10 (BLACK)CHASSIS ASSY., RC 6, M-10 (BLACK)
-
111015333-1209 CHASSIS ASSY., 121, RC 6 IQ (DRAGON)CHASSIS ASSY., 121, RC 6 IQ (DRAGON)
-
127081085 PLUG-BARBEDPLUG-BARBED
-
135248507 BRACKET-CLUTCH GUARD, REARBRACKET-CLUTCH GUARD, REAR
-
145248476 TOECLIP (LEFT)TOECLIP (LEFT)
-
155248402 SUPPORT-FOOTREST, BUMPER (RIGHT)SUPPORT-FOOTREST, BUMPER (RIGHT)
-
165248807 SUPPORT-FOOTREST, LOWER (LEFT)SUPPORT-FOOTREST, LOWER (LEFT)
-
175248403 LEG-SUPPORT (LEFT)LEG-SUPPORT (LEFT)
-
181015301 FOOTREST ASSY., W/STUD (LEFT)FOOTREST ASSY., W/STUD (LEFT)
-
195247420 BRACKET, CLUTCH-GUARDBRACKET, CLUTCH-GUARD
-
207621429 RIVETRIVET
-
217173298 DECAL-BELT REMOVALDECAL-BELT REMOVAL
-
225211722 PLATE, BACKERPLATE, BACKER
-
237621402 RIVET, POPRIVET, POP
-
245249757 GUARD-BELTGUARD-BELT
-
257172672 DECAL-ENGINE AND CLUTCHDECAL-ENGINE AND CLUTCH
-
261014875 CLUTCH GUARD ASSY.CLUTCH GUARD ASSY.
-
275222769 CLIP, BELT RETAINERCLIP, BELT RETAINER
-
287080216 PIN-CLUTCH COVERPIN-CLUTCH COVER
-
297670067 CLIP, DARTCLIP, DART
-
305247372 BRACE-FRT LOWER A-ARMBRACE-FRT LOWER A-ARM
