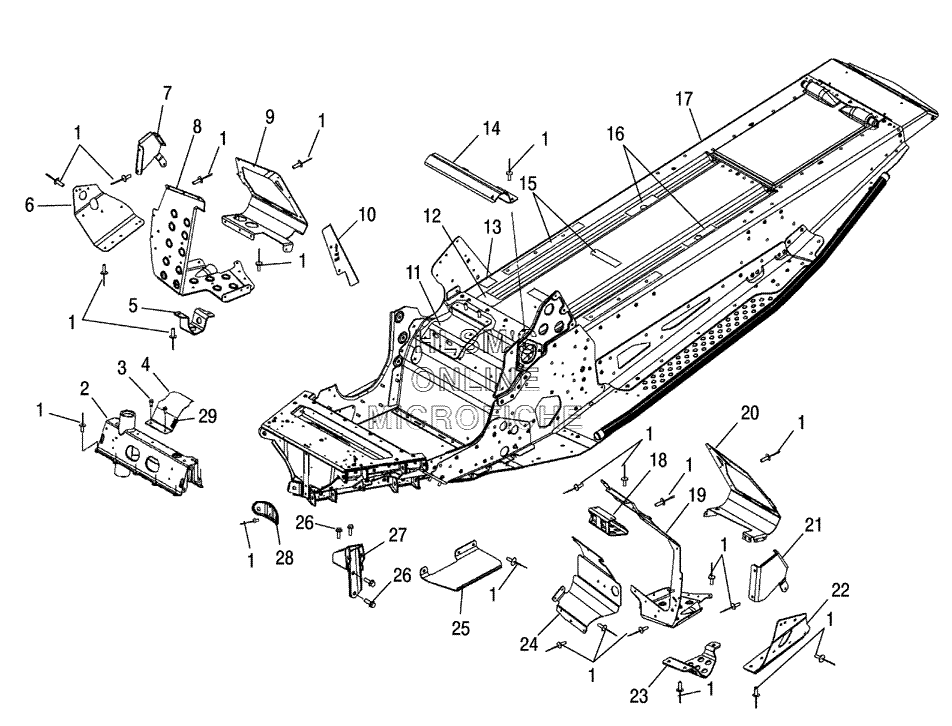

CHASSIS - FRONT для Polaris FST Classic (S06PD7FS) - 2006 года выпуска
-
№АртикулНазвание
-
17661637 RIVET, INTERLOCKRIVET, INTERLOCK
-
21014894 BRACKETBRACKET
-
37517386 SCREWSCREW
-
45249468 SHIELD HEAT, ALTERNATORSHIELD HEAT, ALTERNATOR
-
55248945 LEG SUPPORT (RIGHT)LEG SUPPORT (RIGHT)
-
65248808 SUPPORT FOOTREST (LOWER/RIGHT)SUPPORT FOOTREST (LOWER/RIGHT)
-
75248401 SUPPORT FOOTREST, BUMPER (LEFT)SUPPORT FOOTREST, BUMPER (LEFT)
-
81015091 FOOTREST WITH STUD ASSY (RIGHT)FOOTREST WITH STUD ASSY (RIGHT)
-
95248477 TOECLIP (RIGHT)TOECLIP (RIGHT)
-
105250044 CLIP BULKHEAD SIDE (RIGHT)CLIP BULKHEAD SIDE (RIGHT)
-
111014565 STEERING BRACKET MOUNT, MAN (LOWER)STEERING BRACKET MOUNT, MAN (LOWER)
-
117661637 RIVET, INTERLOCKRIVET, INTERLOCK
-
125812612 SEAL TUNNEL WEARSTRIPSEAL TUNNEL WEARSTRIP
-
135812527 TAPE POLYETHYLENE (1 1/2X1 1/2)TAPE POLYETHYLENE (1 1/2X1 1/2)
-
145248667 GUARD WIRING ECU/JACKSHAFTGUARD WIRING ECU/JACKSHAFT
-
155810290 PAD, BATTERYPAD, BATTERY
-
165810947 FOAM, SEALFOAM, SEAL
-
171014679-309 CHASSIS, BASIC ASSYCHASSIS, BASIC ASSY
-
185249078 MOUNT PLENUMMOUNT PLENUM
-
191015301 FOOTREST WITH STUD ASSY (LEFT)FOOTREST WITH STUD ASSY (LEFT)
-
205248476 TOECLIP (LEFT)TOECLIP (LEFT)
-
215248402 SUPPORT FOOTREST, BUMPER (RIGHT)SUPPORT FOOTREST, BUMPER (RIGHT)
-
225248807 SUPPORT FOOTREST (LOWER/LEFT)SUPPORT FOOTREST (LOWER/LEFT)
-
235248403 LEG SUPPORT (LEFT)LEG SUPPORT (LEFT)
-
245247420 BRACKET, CLUTCH GUARDBRACKET, CLUTCH GUARD
-
255249757 GUARD BELTGUARD BELT
-
267518179 SCREWSCREW
-
271014462-067 WELD/SHOCK MOUNT ASSY (LEFT/BLACK)WELD/SHOCK MOUNT ASSY (LEFT/BLACK)
-
271014463-067 WELD/SHOCK MOUNT ASSY (RIGHT/BLACK)WELD/SHOCK MOUNT ASSY (RIGHT/BLACK)
-
285247372 BRACE A-ARM (FRONT/LOWER)BRACE A-ARM (FRONT/LOWER)
-
295521131 TRIM, EDGE (6FT) (BLACK)TRIM, EDGE (6FT) (BLACK)
