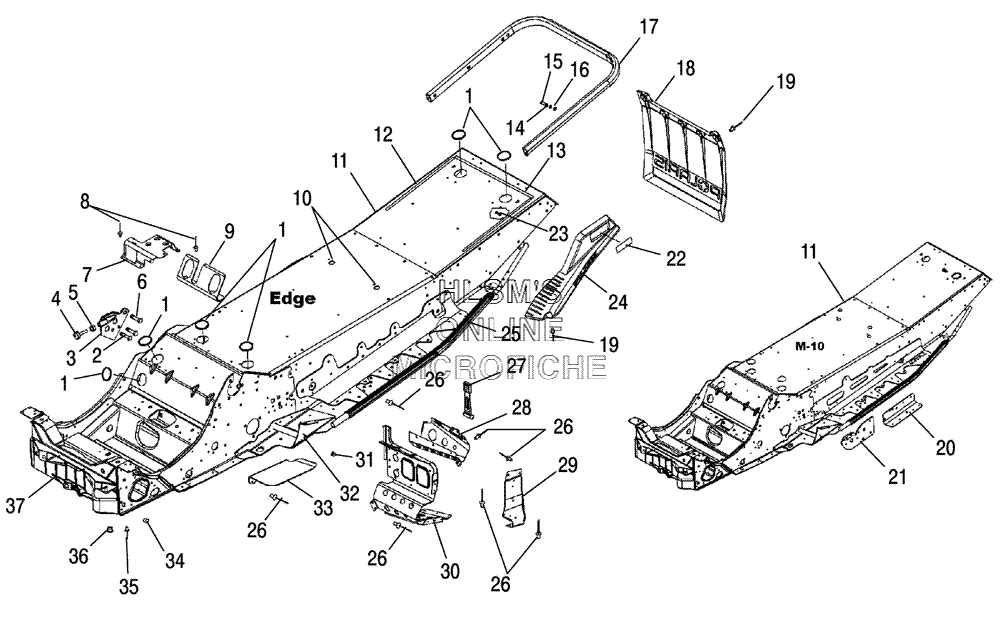

FRAME - CHASSIS для Polaris SuperSport (S06NP5BSA) - 2006 года выпуска
-
№АртикулНазвание
-
17080934 CAPLUG (1 5/8")CAPLUG (1 5/8")
-
27517854 SCREW SPEC YSCREW SPEC Y
-
31013399 WELD TORQUE STOPWELD TORQUE STOP
-
43021104 STOP, TORQUE COURSE (3/8-16)STOP, TORQUE COURSE (3/8-16)
-
57542404 NUTNUT
-
67517632 SCREWSCREW
-
75246330 BRACKET OIL TANK/HOSE SUPPORTBRACKET OIL TANK/HOSE SUPPORT
-
87621432 RIVETRIVET
-
95246177 BRACKET AIRBOXBRACKET AIRBOX
-
107080592 CAPLUG (3/4")CAPLUG (3/4")
-
111014193-309 PLATE (INCL. 32, 37)PLATE (INCL. 32, 37)
-
111014205-309 PLATE (INCL. 20, 21, 32, 37)PLATE (INCL. 20, 21, 32, 37)
-
125812290 GASKET SEAT BASEGASKET SEAT BASE
-
135812360 GASKET SEAT BASE (1/4")GASKET SEAT BASE (1/4")
-
147552801 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
157512232 BOLTBOLT
-
167558301 WASHER, FLATWASHER, FLAT
-
172632165-309 BUMPER ASSY (REAR)BUMPER ASSY (REAR)
-
185433961-1038 FLAP SNOW, SHORT (BLACK/WHITE)FLAP SNOW, SHORT (BLACK/WHITE)
-
197621472 RIVETRIVET
-
205244997-067 BRACE, TUNNEL (LOWER/LEFT/BLACK) (M-10)BRACE, TUNNEL (LOWER/LEFT/BLACK) (M-10)
-
205244998-067 BRACE, TUNNEL (LOWER/RIGHT/BLACK) (M-10)BRACE, TUNNEL (LOWER/RIGHT/BLACK) (M-10)
-
215244999-067 PAD SUSPENSION (FRONT/LEFT/BLACK) (M-10)PAD SUSPENSION (FRONT/LEFT/BLACK) (M-10)
-
215245001-067 PAD SUSPENSION (FRONT/RIGHT/BLACK) (M-10)PAD SUSPENSION (FRONT/RIGHT/BLACK) (M-10)
-
222670133 REFLECTOR ASSY (RED)REFLECTOR ASSY (RED)
-
237517441 SCREW (.75)SCREW (.75)
-
242632443-070 SNOWSKIRT/REFLECTOR ASSY (LEFT/BLACK)SNOWSKIRT/REFLECTOR ASSY (LEFT/BLACK)
-
242632444-070 SNOWSKIRT/REFLECTOR ASSY (RIGHT/BLACK)SNOWSKIRT/REFLECTOR ASSY (RIGHT/BLACK)
-
255133971 GRIP TUNNEL, COMMON (LEFT)GRIP TUNNEL, COMMON (LEFT)
-
255133972 GRIP TUNNEL, COMMON (RIGHT)GRIP TUNNEL, COMMON (RIGHT)
-
267661637 RIVET, INTERLOCK ZRIVET, INTERLOCK Z
-
275433150 STRAPSTRAP
-
285245457-067 MOUNT CONSOLE, TOE CLIP (LEFT/BLACK)MOUNT CONSOLE, TOE CLIP (LEFT/BLACK)
-
285245458-067 MOUNT CONSOLE, TOE CLIP (RIGHT/BLACK)MOUNT CONSOLE, TOE CLIP (RIGHT/BLACK)
-
295246310 SUPPORT FOOTREST (LEFT)SUPPORT FOOTREST (LEFT)
-
295246311 SUPPORT FOOTREST (RIGHT)SUPPORT FOOTREST (RIGHT)
-
305245288 FOOTREST (LEFT) (.080)FOOTREST (LEFT) (.080)
-
305247205 FOOTREST (RIGHT)FOOTREST (RIGHT)
-
317081085 PLUG BARBED (.625) (M-10)PLUG BARBED (.625) (M-10)
-
322202059 MOUNT, TRAILING ARM KIT (LEFT)MOUNT, TRAILING ARM KIT (LEFT)
-
322202598 MOUNT, TRAILING ARM KIT (RIGHT)MOUNT, TRAILING ARM KIT (RIGHT)
-
335246066 GUARD BELTGUARD BELT
-
347080416 PLUG, HOLEPLUG, HOLE
-
357661130 RIVETRIVET
-
367081076 PLUG HOLE (1.25)PLUG HOLE (1.25)
-
375132292 BULKHEAD, MACH (FRONT)BULKHEAD, MACH (FRONT)
