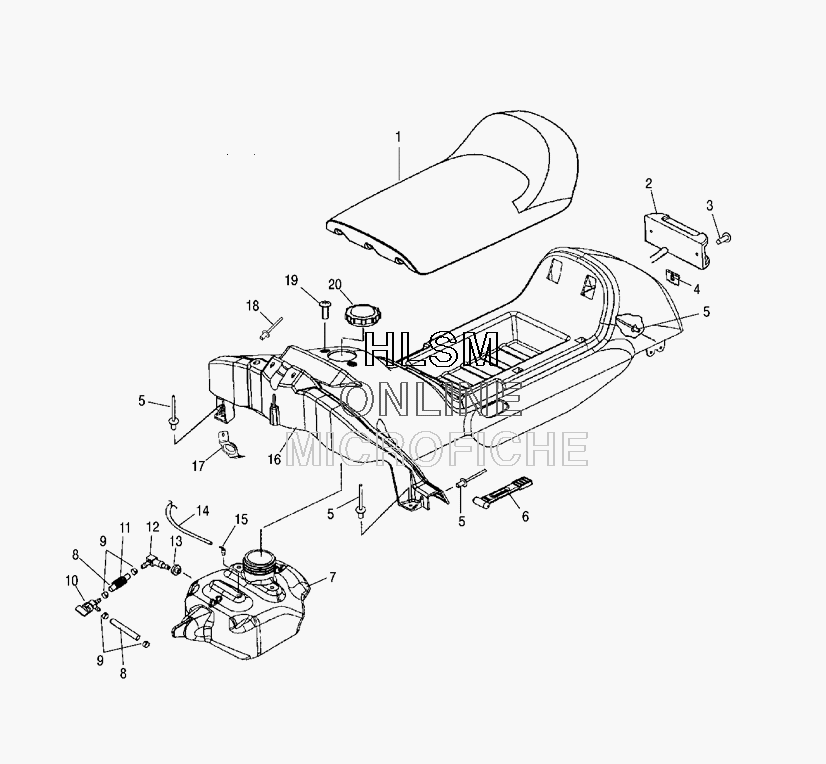

SEAT W/ GAS TANK ASSEMBLY для Polaris 120 AND EURO (S07WB1AS/AE) - 2007 года выпуска
-
№АртикулНазвание
-
12682534 ASM-SEAT CUSHION (INCL. COVER)ASM-SEAT CUSHION (INCL. COVER)
-
12682533 COVER, SEATCOVER, SEAT
-
22872427 TAILLIGHT, W/ HARNESSTAILLIGHT, W/ HARNESS
-
37512091 SCREWSCREW
-
47670094 NUTNUT
-
57621472 RIVETRIVET
-
65433150 STRAPSTRAP
-
72520171 ASM-GAS TANK, 120 (INCL. 12, 13)ASM-GAS TANK, 120 (INCL. 12, 13)
-
88350018-600 TUBING-ETHER ERETHNE, 160CM, SVCTUBING-ETHER ERETHNE, 160CM, SVC
-
97080307 CLAMP, HOSECLAMP, HOSE
-
107052249 VALVE-FUEL, PLASTIC 90°, 1/4HOSEVALVE-FUEL, PLASTIC 90°, 1/4HOSE
-
114010051-13 CONDUIT-CONVOLUTED, 13CMCONDUIT-CONVOLUTED, 13CM
-
127052348 NOZZLENOZZLE
-
137052028 GROMMETGROMMET
-
148450061-600 LINE, FUEL, 3MMX7MMLINE, FUEL, 3MMX7MM
-
157052095 FITTING, 90 DEG, 1/8FITTING, 90 DEG, 1/8
-
162632154-070 ASM-CONSOLE, SEAT/TANK CVR, BLACKASM-CONSOLE, SEAT/TANK CVR, BLACK
-
175243049 GUIDE-RECOILGUIDE-RECOIL
-
187621330 RIVET, POPRIVET, POP
-
197515148 SCREWSCREW
-
205433687 CAP, GAS TANKCAP, GAS TANK
