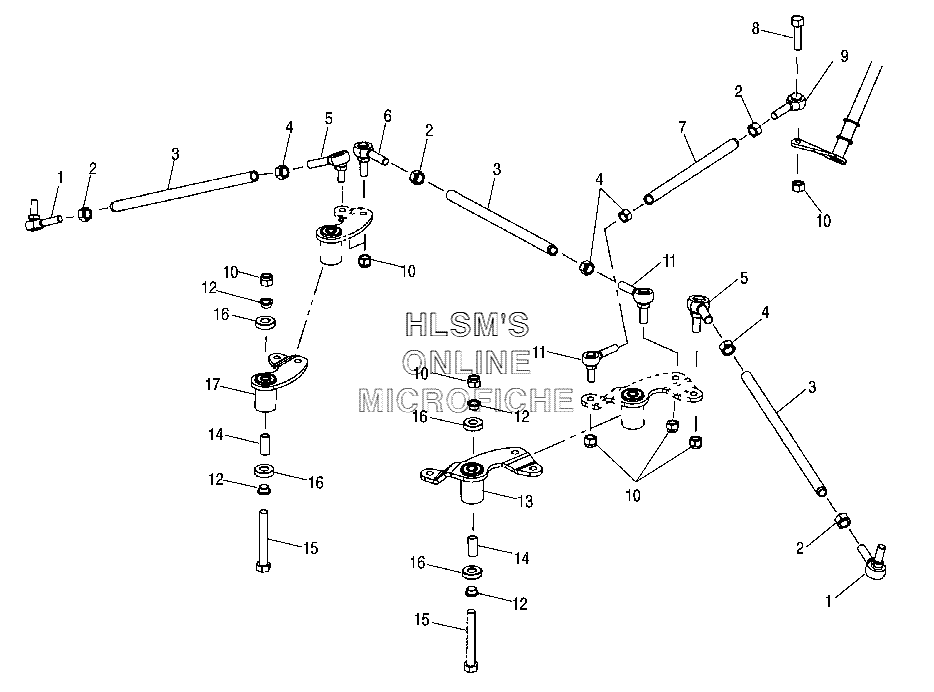

STEERING LINKAGE для Polaris 340 EDGE LX (S07ND3AS) - 2007 года выпуска
-
№АртикулНазвание
-
17061057 ROD END (3/8) (750 STUD) (RIGHT)ROD END (3/8) (750 STUD) (RIGHT)
-
27542401 NUT, HEXAGON (RIGHT)NUT, HEXAGON (RIGHT)
-
35333949 ROD TIEROD TIE
-
47542424 NUT (LEFT)NUT (LEFT)
-
57061055 ROD END 3/8 750 STUD (LEFT)ROD END 3/8 750 STUD (LEFT)
-
67061076 ROD END 3/8 (RIGHT)ROD END 3/8 (RIGHT)
-
75333773 ROD, DRAGLINK, 12.50, STEELROD, DRAGLINK, 12.50, STEEL
-
87515528 BOLTBOLT
-
97060167 ROD END (RIGHT)ROD END (RIGHT)
-
107542439 NUT, NYLOKNUT, NYLOK
-
117061075 ROD END 3/8 (LEFT)ROD END 3/8 (LEFT)
-
125132106 BUSHING REDUCER (12MM TO .385)BUSHING REDUCER (12MM TO .385)
-
131820957 PITMAN ARM ASSY (INCL. 12, 14, 16)PITMAN ARM ASSY (INCL. 12, 14, 16)
-
145133423 SPACER TUBE PITMAN/IDLER ARMSSPACER TUBE PITMAN/IDLER ARMS
-
157512435 SCREWSCREW
-
163514320 BEARING BALLBEARING BALL
-
171820959 IDLER ARM ASSY (INCL. 12, 14, 16)IDLER ARM ASSY (INCL. 12, 14, 16)
