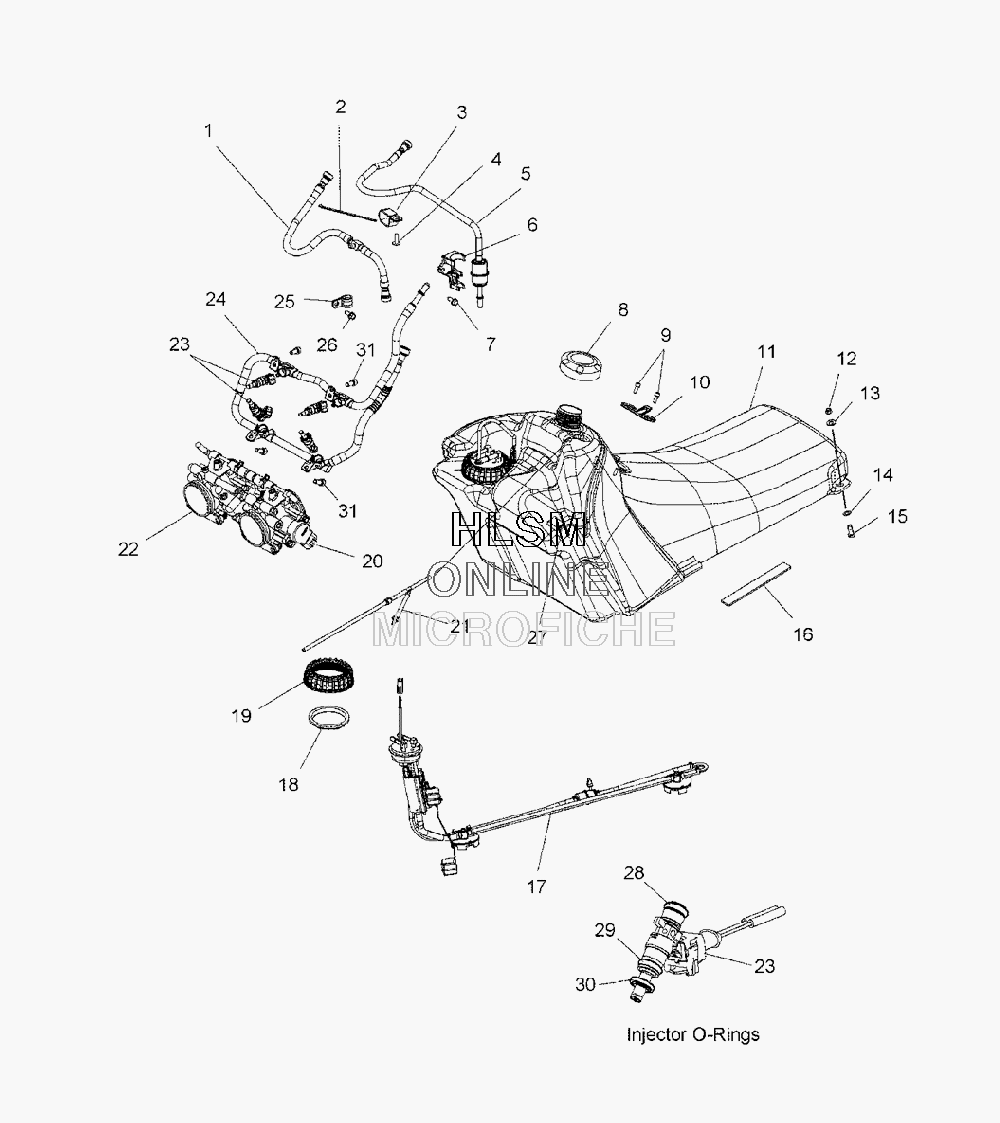

FUEL SYSTEM для Polaris 600 CLEANFIRE SWITCHBACK AND STOCK A/B (S07PS6HS/HAS/HSB) - 2007 года выпуска
-
№АртикулНазвание
-
12520648 ASM-FUEL LINE, RTRN,ASM-FUEL LINE, RTRN,
-
27080138 CABLE TIECABLE TIE
-
37081364 CLAMP-DBL TUBE, .562 VNLCOATEDCLAMP-DBL TUBE, .562 VNLCOATED
-
47517916 SCR-1/4-20X3/4-TR/TX/TAP-MSCR-1/4-20X3/4-TR/TX/TAP-M
-
52520647 ASM-FUEL LINE, FLTRASM-FUEL LINE, FLTR
-
61203256 ASM-FUEL FILTER RETAINERASM-FUEL FILTER RETAINER
-
65812996 PAD-FUEL FILTERPAD-FUEL FILTER
-
77512095 SCREWSCREW
-
85435534 CAP-FUEL TANK, ''PREMIUM''CAP-FUEL TANK, ''PREMIUM''
-
97515136 SCREWSCREW
-
105247431 BRKT-SEAT MOUNTBRKT-SEAT MOUNT
-
112203288 KIT-FUEL TANK, HI CAP, SVC (SDI) [INCL. 18, 27KIT-FUEL TANK, HI CAP, SVC (SDI) [INCL. 18, 27
-
127542122 NUT-NYLOKNUT-NYLOK
-
137555859 WASHER, FLATWASHER, FLAT
-
147670154 RETAINER-BOLT, 1/4-20RETAINER-BOLT, 1/4-20
-
157515203 BOLTBOLT
-
165810290 PAD, BATTERYPAD, BATTERY
-
172520611 FUEL PUMP AND PICK-UP ASSY.FUEL PUMP AND PICK-UP ASSY.
-
185413063 GASKET-PFAGASKET-PFA
-
195436628 NUT-PFANUT-PFA
-
203131591 SENSOR-THROTTLE POSITIONSENSOR-THROTTLE POSITION
-
212633187 ASM-VENT, FUEL TANKASM-VENT, FUEL TANK
-
221203213 ASM-THROTTLE BODY [INCL. 20]ASM-THROTTLE BODY [INCL. 20]
-
232203325-015 KIT-INJECTOR 500G/MIN, REDKIT-INJECTOR 500G/MIN, RED
-
232203325-027 KIT-INJECTOR MY07 600 SDI BLUKIT-INJECTOR MY07 600 SDI BLU
-
232203325-053 KIT-INJECTOR 500G/MIN, YLWKIT-INJECTOR 500G/MIN, YLW
-
242520572 ASM-FUEL RAIL 600 SDIASM-FUEL RAIL 600 SDI
-
257080573 CLAMP, RUBBER-COATED, .562CLAMP, RUBBER-COATED, .562
-
267512095 SCREWSCREW
-
275813100 PAD-RUBBER, 3 X 1.5X .5PAD-RUBBER, 3 X 1.5X .5
-
281500198 O-RING, (2)O-RING, (2)
-
295412891 O-RING, BOSCH, E10076 (BROWN)O-RING, BOSCH, E10076 (BROWN)
-
305436287 BUSHING-RUBBER, INJ ELASTOMER (GREEN)BUSHING-RUBBER, INJ ELASTOMER (GREEN)
-
317517431 SCREWSCREW
