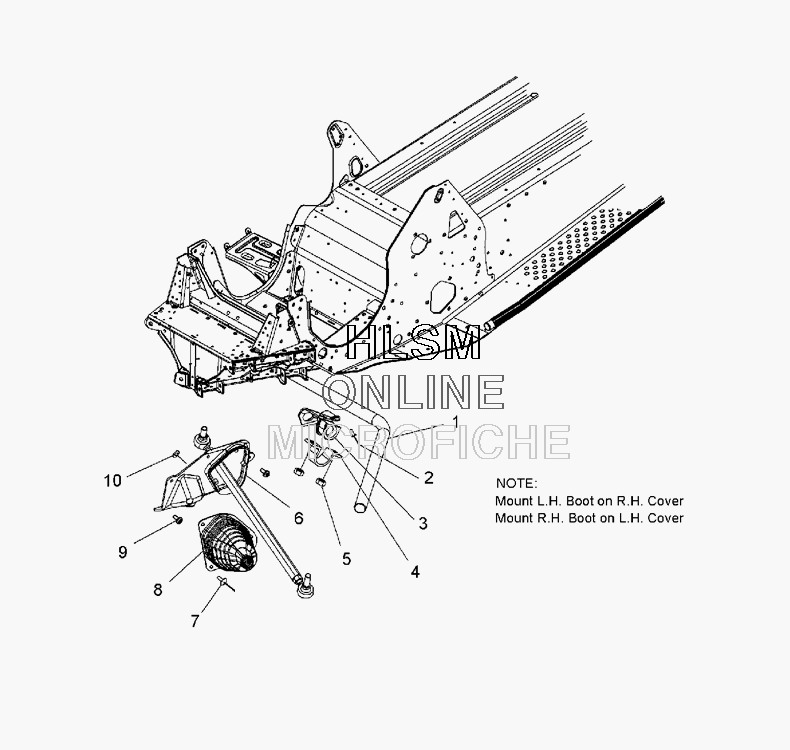

SWAY BAR для Polaris 600 HO IQ TOURING CLEANFIRE AND EURO (S07PT6HS) - 2007 года выпуска
-
№АртикулНазвание
-
15248794-067 BAR-SWAY, .594, BLACKBAR-SWAY, .594, BLACK
-
27621431 RIVETRIVET
-
35435516 BUSHING-SWAY BAR, 9/16, LEFT HANDBUSHING-SWAY BAR, 9/16, LEFT HAND
-
35435517 BUSHING-SWAY BAR, 9/16, RIGHT HANDBUSHING-SWAY BAR, 9/16, RIGHT HAND
-
45134458 CLAMP-SWAY BAR MOUNTINGCLAMP-SWAY BAR MOUNTING
-
57542122 NUT-NYLOKNUT-NYLOK
-
65436574 COVER-TIE ROD BOOT, LEFT HANDCOVER-TIE ROD BOOT, LEFT HAND
-
65436575 COVER-TIE ROD BOOT, RIGHT HANDCOVER-TIE ROD BOOT, RIGHT HAND
-
77621467 RIVET, BLINDRIVET, BLIND
-
85433532 BOOT, TIE ROD, LEFT HANDBOOT, TIE ROD, LEFT HAND
-
85433533 BOOT, TIE ROD, RIGHT HANDBOOT, TIE ROD, RIGHT HAND
-
97512084 SCREWSCREW
-
107555904 WASHERWASHER
Все узлы модели:
- AIR BOX ASSEMBLY
- BRAKE ASSEMBLY
- BUMPER/HITCH FLAP
- CARGO BOX W/ TAILLIGHT ASSY
- CHAINCASE ASSEMBLY
- CHASSIS - FOOTREST
- CHASSIS - HOOP
- CLUTCH - DRIVE
- CLUTCH - DRIVEN
- CLUTCH GUARD
- CONSOLE
- COOLING SYSTEM
- CRANKCASE ASSEMBLY
- CYLINDER ASSEMBLY
- DECALS
- DRIVE TRAIN ASSEMBLY W/ DRIVE BELT
- ENGINE MOUNTING W/ SHORT BLOCK
- EXHAUST SYSTEM
- EXHAUST VALVES W/SOLENOID
- FENDER FOAM AND FOIL
- FENDERS W/ SIDE PANELS
- FRONT BUMPER W/NOSEPAN
- FUEL SYSTEM
- HANDLEBAR ASSEMBLY W/ CONTROLS
- HEADLIGHT ASSEMBLY
- HOOD - FOAM/FOIL/SCREENS
- HOOD ASSEMBLY W/ WINDSHIELD
- OIL TANK
- PISTON AND CRANKSHAFT
- SEAT W/ TAILLIGHT
- SKI ASSEMBLY
- STARTER - RECOIL ASSEMBLY
- STARTER MOTOR W/BATTERY
- STATOR - FLYWHEEL
- STEERING - LOWER
- STEERING POST ASSEMBLY
- SUSPENSION - FRONT
- SUSPENSION - FRONT TORQUE ARM ASSEMBLY
- SUSPENSION - RAIL MOUNTING
- SUSPENSION - REAR
- SUSPENSION - REAR SHOCK TRACK (7043216)
- SUSPENSION - REAR TORQUE ARM ASSEMBLY
- • SWAY BAR
- TOOL KIT
- WATER PUMP/OIL PUMP
- WINDSHIELD
- WIRING HARNESS
