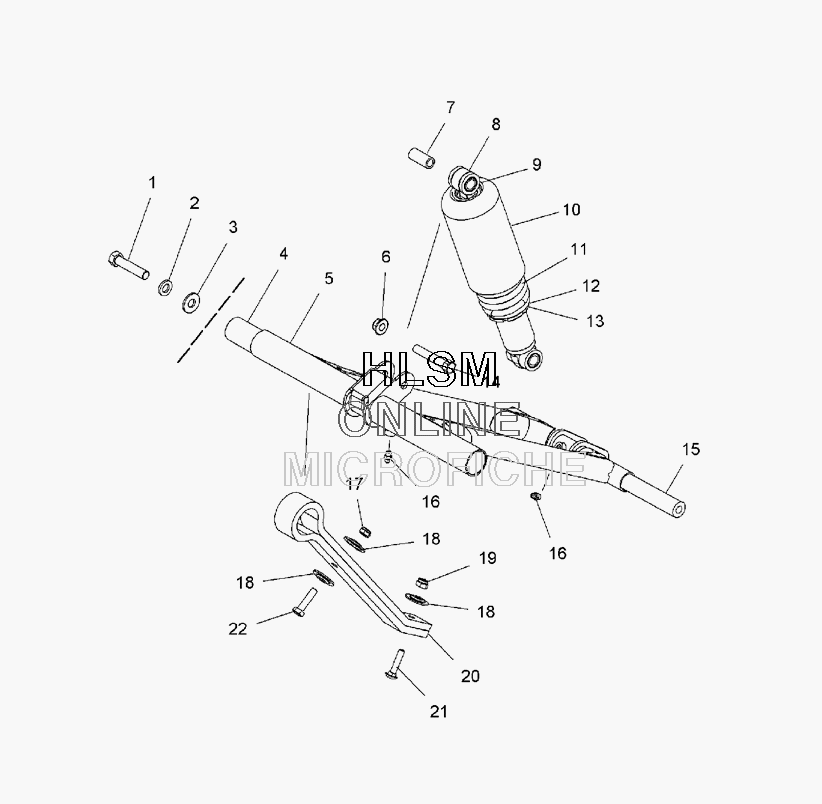

SUSPENSION - FRONT TORQUE ARM для Polaris 600 HO LX CLEAN FIRE EURO(S07PD6HE) - 2007 года выпуска
-
№АртикулНазвание
-
17518261 SCR-7/16-14X2.00 HXCP-P80-GR5YSCR-7/16-14X2.00 HXCP-P80-GR5Y
-
27552614 WASHER, LOCKWASHER, LOCK
-
37555984 WASHER, FLATWASHER, FLAT
-
45135227 SHAFT-FTA, M10, UPPERSHAFT-FTA, M10, UPPER
-
51542123-067 WELD-FTA, M-10, .803, BLKWELD-FTA, M-10, .803, BLK
-
67547263 NUT-3/8-24 NYLOKNUT-3/8-24 NYLOK
-
75333905 SLEEVE, .385X.560X1.24SLEEVE, .385X.560X1.24
-
87043207 SHOCK-F/T, ARVIN MPVSHOCK-F/T, ARVIN MPV
-
95630580 RETAINER, SPRING, SLOTTEDRETAINER, SPRING, SLOTTED
-
105433503 SHIELD-SPRING, 3.00SHIELD-SPRING, 3.00
-
117041672-067 SPRING, COMP, BLACKSPRING, COMP, BLACK
-
125245067 RETAINER-SPRING, GAB, PLATEDRETAINER-SPRING, GAB, PLATED
-
135210953 RETAINER, SPRINGRETAINER, SPRING
-
147515415 SCREWSCREW
-
155132579 SHAFT, LOWER, PIVOTSHAFT, LOWER, PIVOT
-
167080424 FITTING, LUBRICATIONFITTING, LUBRICATION
-
177542344 NUT, NYLOKNUT, NYLOK
-
185220646 WASHER, DOMEDWASHER, DOMED
-
197542324 NUT, NYLOKNUT, NYLOK
-
205411940 STRAP-LIMITER, M-10STRAP-LIMITER, M-10
-
217515316 BOLTBOLT
-
227512392 BOLTBOLT
