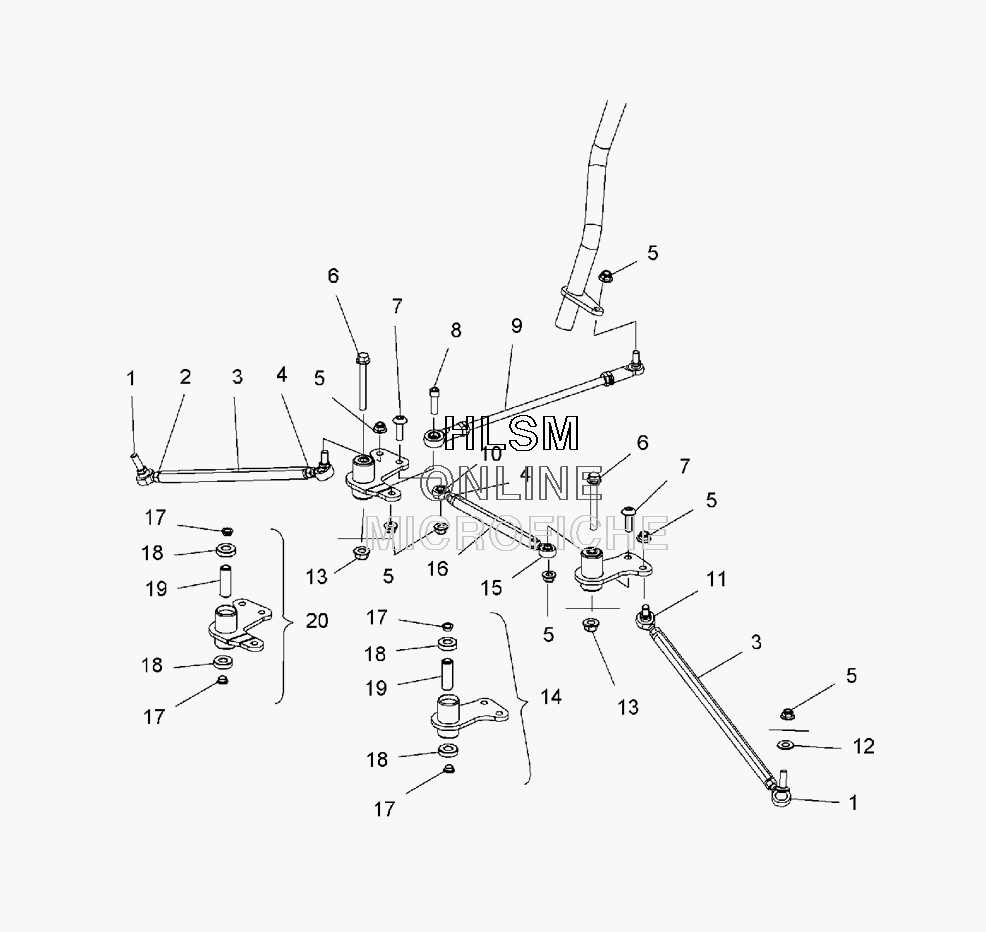

STEERING - LOWER для Polaris 600 HO SWITCHBACK (S07PS6FS) - 2007 года выпуска
-
№АртикулНазвание
-
17061057 ROD END-3/8, PL, 75°, 1.00, RIGHT HANDROD END-3/8, PL, 75°, 1.00, RIGHT HAND
-
27542401 NUT, HEX, RIGHT HANDNUT, HEX, RIGHT HAND
-
35334667 ROD-TIEROD-TIE
-
47542424 NUT, LEFT HANDNUT, LEFT HAND
-
57518277 SCR-3/8-16X3.25 FLG HG5 ZSCR-3/8-16X3.25 FLG HG5 Z
-
67547263 NUT-3/8-24 NYLOKNUT-3/8-24 NYLOK
-
77518372 SCR-3/8-24X1.25 TX/TRUSS, GR5-YSCR-3/8-24X1.25 TX/TRUSS, GR5-Y
-
87515545 BOLTBOLT
-
91822921 ASM-DRAGLINK, 14.78 FIXEDASM-DRAGLINK, 14.78 FIXED
-
107060001 ROD END-3/8, LEFT HANDROD END-3/8, LEFT HAND
-
117061055 ROD END-3/8, PL, 75° LEFT HAND, 750 STUDROD END-3/8, PL, 75° LEFT HAND, 750 STUD
-
127555806 WASHER, FLATWASHER, FLAT
-
137547180 NUT-FLANGED, 3/8-16 NYLON-ZNUT-FLANGED, 3/8-16 NYLON-Z
-
141821419 ASM., ARM-IDLERASM., ARM-IDLER
-
157060002 ROD END-3/8, RIGHT HANDROD END-3/8, RIGHT HAND
-
165334325 ROD-STEERING RACKROD-STEERING RACK
-
175132106 BUSHING-REDUCER, 12MM TO .385BUSHING-REDUCER, 12MM TO .385
-
183514320 BEARING-BALL, 600ILLUBEARING-BALL, 600ILLU
-
195135452 SPACER-TUBE PITMAN/IDLER ARMSSPACER-TUBE PITMAN/IDLER ARMS
-
201822624 PITMAN ARM ASMPITMAN ARM ASM
