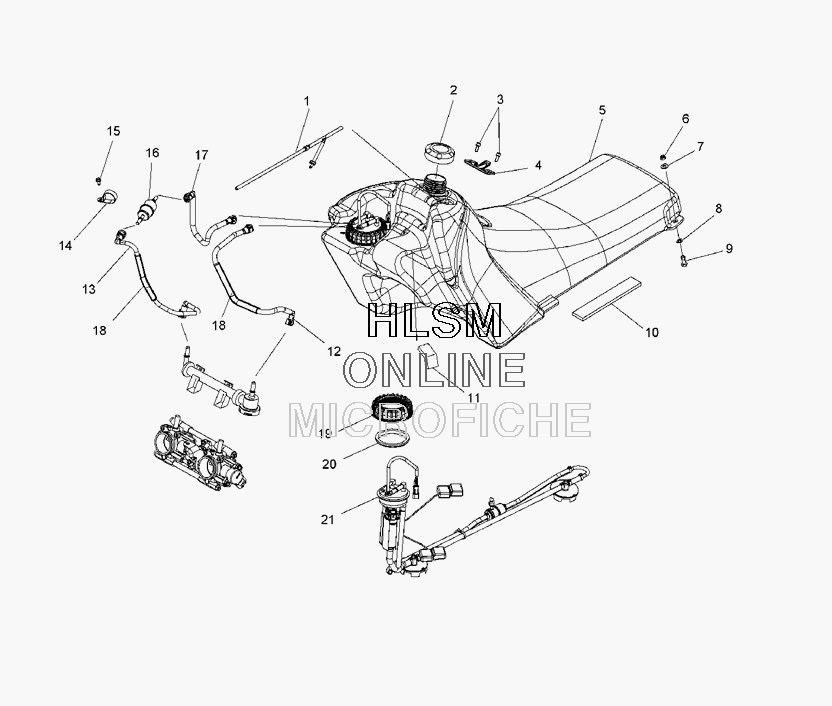

FUEL SYSTEM для Polaris FS IQ TOURING EURO(S07PT7EE) - 2007 года выпуска
-
№АртикулНазвание
-
18450003-1525 LINE, FUEL, 1/4 ID (1525 CM.) (VENT)LINE, FUEL, 1/4 ID (1525 CM.) (VENT)
-
25435534 CAP-FUEL TANK, ''PREMIUM''CAP-FUEL TANK, ''PREMIUM''
-
37515136 SCREWSCREW
-
45247431 BRKT-SEAT MOUNTBRKT-SEAT MOUNT
-
52203297 KIT-FUEL TANK, HI CAP, SVC (FS/T) (INCL. 11)KIT-FUEL TANK, HI CAP, SVC (FS/T) (INCL. 11)
-
67542122 NUT-NYLOKNUT-NYLOK
-
77555859 WASHER, FLATWASHER, FLAT
-
87670154 RETAINER-BOLT, 1/4-20RETAINER-BOLT, 1/4-20
-
97515203 BOLTBOLT
-
105810290 PAD, BATTERYPAD, BATTERY
-
115813100 PAD-RUBBER, 3 X 1.5X .5PAD-RUBBER, 3 X 1.5X .5
-
122520721 ASM-FUEL LINE, RTRN W/WRAPASM-FUEL LINE, RTRN W/WRAP
-
132520722 ASM-FUEL LINE, RAIL, S/P, W/WRAPASM-FUEL LINE, RAIL, S/P, W/WRAP
-
147080807 CLAMP-HOSECLAMP-HOSE
-
157512208 SCREWSCREW
-
162520424 FILTER-FUELFILTER-FUEL
-
172520675 ASM-FUEL LINE, FLTR TO TANKASM-FUEL LINE, FLTR TO TANK
-
185521745-150 WRAP-WEAR RST, SVC, 1/2'', 150CMWRAP-WEAR RST, SVC, 1/2'', 150CM
-
195436628 NUT-PFANUT-PFA
-
205413063 GASKET-PFAGASKET-PFA
-
212520613 ASM-PUMP/FLANGE, STD, 3 BARASM-PUMP/FLANGE, STD, 3 BAR
