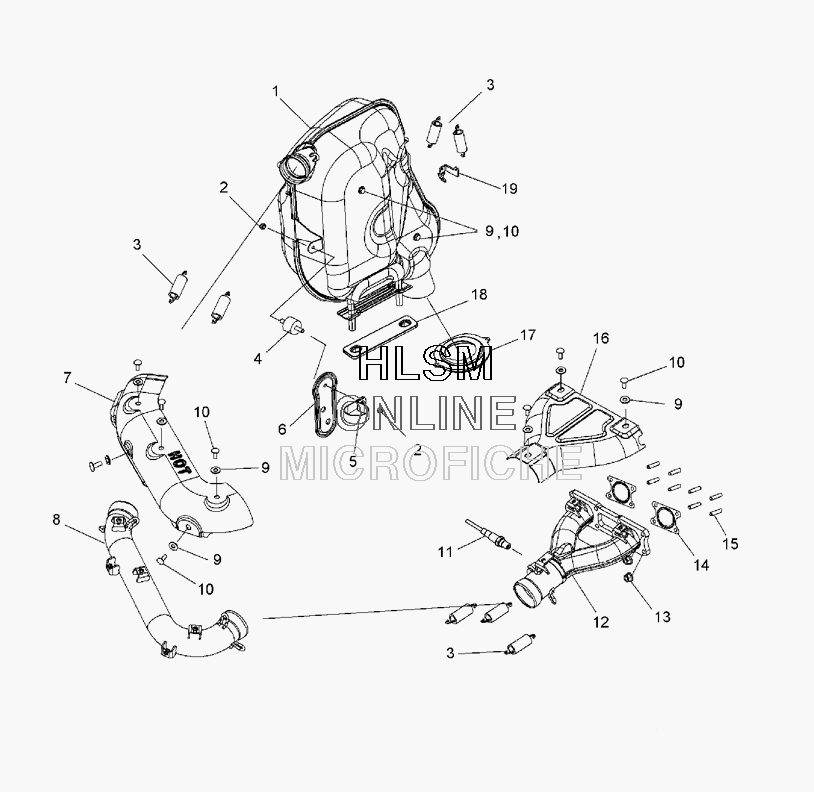

EXHAUST (FS) для Polaris FS IQ TOURING (S07PT7ES) - 2007 года выпуска
-
№АртикулНазвание
-
11261610 ASM-RESONATOR, FSASM-RESONATOR, FS
-
27542122 NUT-NYLOKNUT-NYLOK
-
37042332 SPRING, S.S.SPRING, S.S.
-
43110071 MOUNT, CARB, RUBBERMOUNT, CARB, RUBBER
-
57080807 CLAMP-HOSECLAMP-HOSE
-
65249148 BRKT-RESONATOR/CHASSISBRKT-RESONATOR/CHASSIS
-
75249492 SHIELD-HEAT, HEAD PIPE, FS, BLKSHIELD-HEAT, HEAD PIPE, FS, BLK
-
81261315 PIPE EXHAUST SS, NAPIPE EXHAUST SS, NA
-
97558301 WASHER, FLATWASHER, FLAT
-
107518583 BOLT-1/4-20X1/2 HX/CP-GR8-YBOLT-1/4-20X1/2 HX/CP-GR8-Y
-
114011040 SENSOR-OXYGEN, WIDE BANDSENSOR-OXYGEN, WIDE BAND
-
121261726 WELD-MANIFOLD, FSWELD-MANIFOLD, FS
-
130451503 NUTNUT
-
140451515 GASKET, EXHAUSTGASKET, EXHAUST
-
150452933 PIN-THREADEDPIN-THREADED
-
165249494 SHIELD-HEAT, MANIFOLD, FSSHIELD-HEAT, MANIFOLD, FS
-
175412736 BOOT-OUTLET, RESONATORBOOT-OUTLET, RESONATOR
-
185412425 GROMMET-RESONATOR, SUPPORTGROMMET-RESONATOR, SUPPORT
-
195249149 BRKT-RESONATOR/CHAINCASEBRKT-RESONATOR/CHAINCASE
