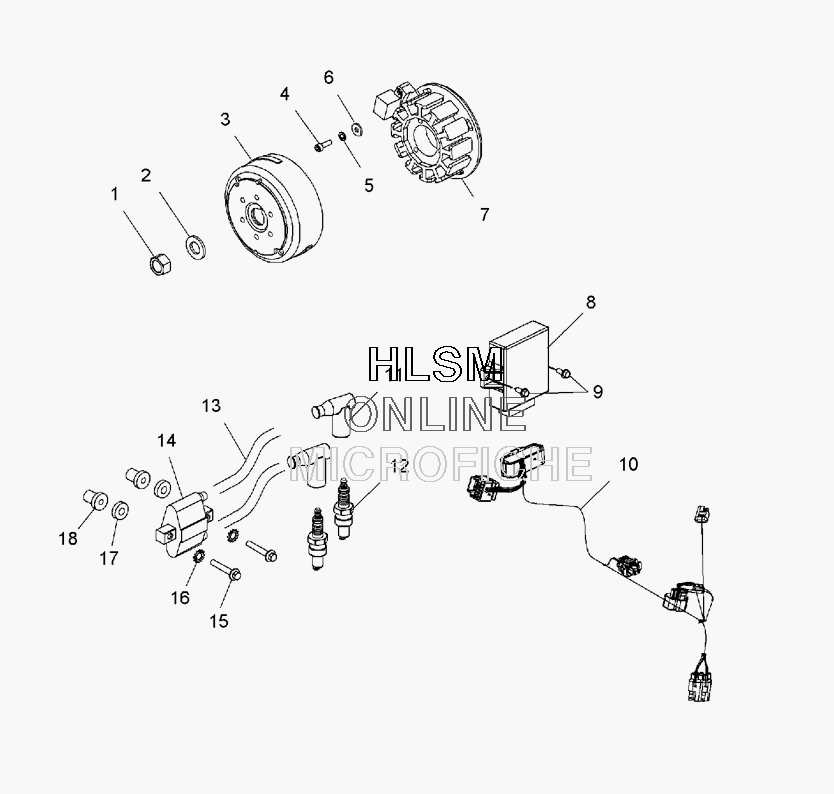

ELECTRICAL - IGNITION SYSTEM для Polaris 600 RR AND EURO (S08MX6FS/FE) - 2008 года выпуска
-
№АртикулНазвание
-
17546909 NUTNUT
-
27555907 WASHERWASHER
-
34010677 FLYWHEEL-IGN 18°FLYWHEEL-IGN 18°
-
47517314 SCREWSCREW
-
57555969 WASHER, LOCKWASHER, LOCK
-
67555970 WASHER, FLATWASHER, FLAT
-
74012132 STATOR-KOK 600RRSTATOR-KOK 600RR
-
82203802 KIT-CDI, S60-44 4012131 (INCL. NYOGEL AND DECAL)KIT-CDI, S60-44 4012131 (INCL. NYOGEL AND DECAL)
-
97512098 SCREWSCREW
-
104011992 HARNESS-IGN SNOHARNESS-IGN SNO
-
114020159 CAP, SPARK PLUGCAP, SPARK PLUG
-
123070190 SP.PLUG, CHAMPION RN57YSP.PLUG, CHAMPION RN57Y
-
134010124-305 WIRE, IGN,BULK,305CM.WIRE, IGN,BULK,305CM.
-
144060229 COIL, IGNITION, KOKCOIL, IGNITION, KOK
-
157517610 SCREWSCREW
-
167552604 WASHERWASHER
-
177555932 WASHER, NYLONWASHER, NYLON
-
187547103 NUT, WELLNUT, WELL
