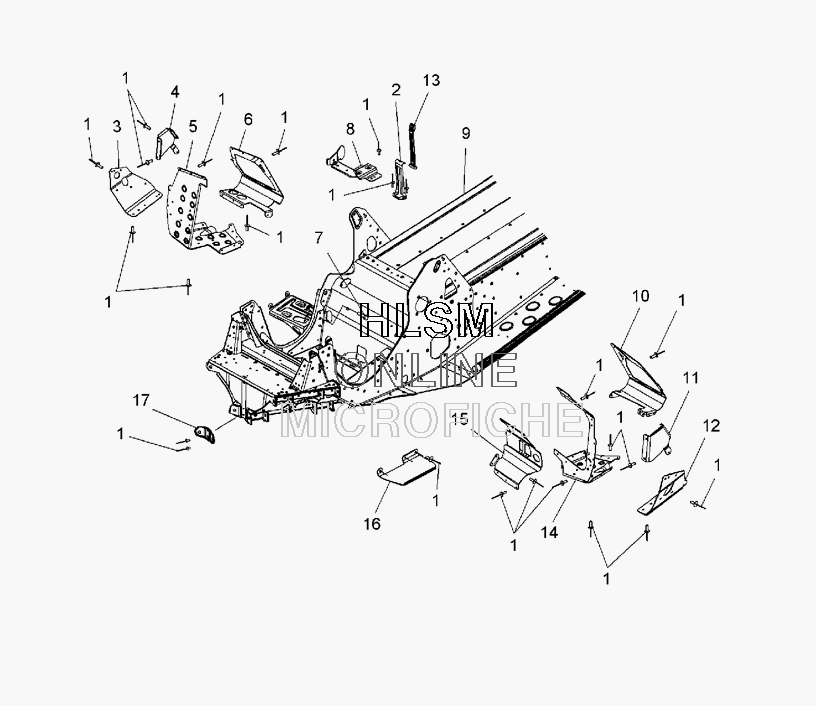

CHASSIS - FOOTREST для Polaris 600 SWITCHBACK EURO (S08PR6HE) - 2008 года выпуска
-
№АртикулНазвание
-
17661637 RIVET,INTERLOCK,ZRIVET,INTERLOCK,Z
-
25251199 BRKT-AIRBOX,LOWERBRKT-AIRBOX,LOWER
-
35248808 SUPPORT-FOOTREST,LOWER, RIGHT HANDSUPPORT-FOOTREST,LOWER, RIGHT HAND
-
45248402 SUPPORT-FOOTREST,BUMPER, RIGHT HANDSUPPORT-FOOTREST,BUMPER, RIGHT HAND
-
51016004 ASM-FOOTREST W/STUD, RIGHT HANDASM-FOOTREST W/STUD, RIGHT HAND
-
65248477 TOECLIP-RIGHT HANDTOECLIP-RIGHT HAND
-
77517810 SCR,5/16X24X3/4 TRXPNHDSCR,5/16X24X3/4 TRXPNHD
-
85249094 BRKT-OIL BOTTLE,LOWERBRKT-OIL BOTTLE,LOWER
-
91015865-309 ASM-CHASSIS,136,RC6,SDI,S/BNATASM-CHASSIS,136,RC6,SDI,S/BNAT
-
105250948 TOECLIP-LEFT HANDTOECLIP-LEFT HAND
-
115248401 SUPPORT-FOOTREST,BUMPER, LEFT HANDSUPPORT-FOOTREST,BUMPER, LEFT HAND
-
125248807 SUPPORT-FOOTREST,LOWER, LEFT HANDSUPPORT-FOOTREST,LOWER, LEFT HAND
-
135411129 STRAP,TIE-DOWNSTRAP,TIE-DOWN
-
141015583 ASM-FOOTREST W/STUD, LEFT HANDASM-FOOTREST W/STUD, LEFT HAND
-
155247420 BRACKET,CLUTCH-GUARDBRACKET,CLUTCH-GUARD
-
165249757 GUARD-BELTGUARD-BELT
-
175247372 BRACE-FRT LOWER A-ARMBRACE-FRT LOWER A-ARM
