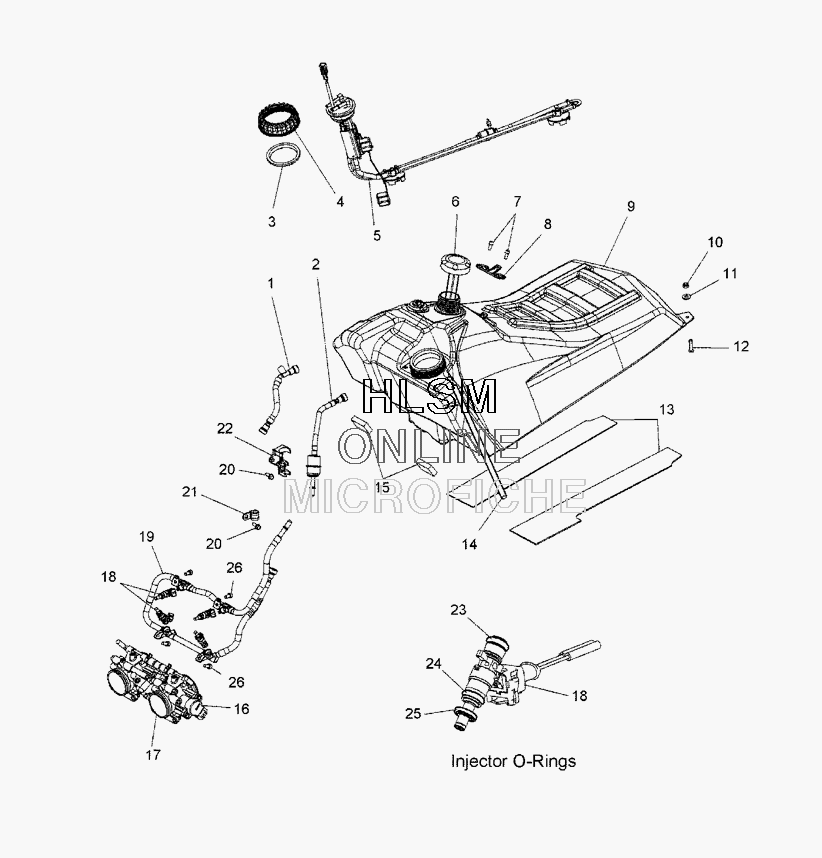

FUEL SYSTEM для Polaris 700 RMK EARLY PROD (S08PL7JST) - 2008 года выпуска
-
№АртикулНазвание
-
12520770 ASM-FUE LLINE, RETURN, RMK SDIASM-FUE LLINE, RETURN, RMK SDI
-
22520771 ASM-FUEL LINE, W/FILTER, RMK SDIASM-FUEL LINE, W/FILTER, RMK SDI
-
35413063 GASKET-PFAGASKET-PFA
-
45436628 NUT-PFANUT-PFA
-
52520874 ASM-PUMP/FLANGE.STD, 4 BAR (ALSO ORDER #3 GASKET)ASM-PUMP/FLANGE.STD, 4 BAR (ALSO ORDER #3 GASKET)
-
62520815 CAP-FUEL, W/GAUGE, 14.00CAP-FUEL, W/GAUGE, 14.00
-
77515136 SCREWSCREW
-
85247431 BRKT-SEAT MOUNTBRKT-SEAT MOUNT
-
92520741 ASM-TANK FUEL, MOLDED, RMK (ALSO ORDER #3 GASKET)ASM-TANK FUEL, MOLDED, RMK (ALSO ORDER #3 GASKET)
-
107542122 NUT-NYLOKNUT-NYLOK
-
117556386 WSHR-.275X.84X.075 BLACK-MWSHR-.275X.84X.075 BLACK-M
-
127512193 BOLT, CARRIAGEBOLT, CARRIAGE
-
135813057 PAD-GAS TANK, LEFT HANDPAD-GAS TANK, LEFT HAND
-
135813076 PAD-GAS TANK, RIGHT HANDPAD-GAS TANK, RIGHT HAND
-
148450126-104 LINE-VENT, 5/16 ID, 104 CMLINE-VENT, 5/16 ID, 104 CM
-
155813178 PAD-RUBBER 1.88X1.38X.5PAD-RUBBER 1.88X1.38X.5
-
163131591 SENSOR-THROTTLE POSITIONSENSOR-THROTTLE POSITION
-
171203505 ASM-THROTTLE BODY (INCL. 16)ASM-THROTTLE BODY (INCL. 16)
-
182203575-015 KIT-INJECTOR MY08 800SDI REDKIT-INJECTOR MY08 800SDI RED
-
182203575-027 KIT-INJECTOR MY08 800SDI BLUKIT-INJECTOR MY08 800SDI BLU
-
182203575-053 KIT-INJECTOR MY08 800SDI YLWKIT-INJECTOR MY08 800SDI YLW
-
192520572 ASM-FUEL RAIL 600 SDIASM-FUEL RAIL 600 SDI
-
207512095 SCREWSCREW
-
217080573 CLAMP, RUBBER-COATED, .562CLAMP, RUBBER-COATED, .562
-
221203256 ASM-FUEL FILTER RETAINERASM-FUEL FILTER RETAINER
-
225812996 PAD-FUEL FILTERPAD-FUEL FILTER
-
231500198 O-RING, (2) [BLACK]O-RING, (2) [BLACK]
-
245412891 O-RING, BOSCH, E10076 (BROWN)O-RING, BOSCH, E10076 (BROWN)
-
255436287 BUSHING-RUBBER, INJ ELASTOMER (GREEN)BUSHING-RUBBER, INJ ELASTOMER (GREEN)
-
267517431 SCREWSCREW
