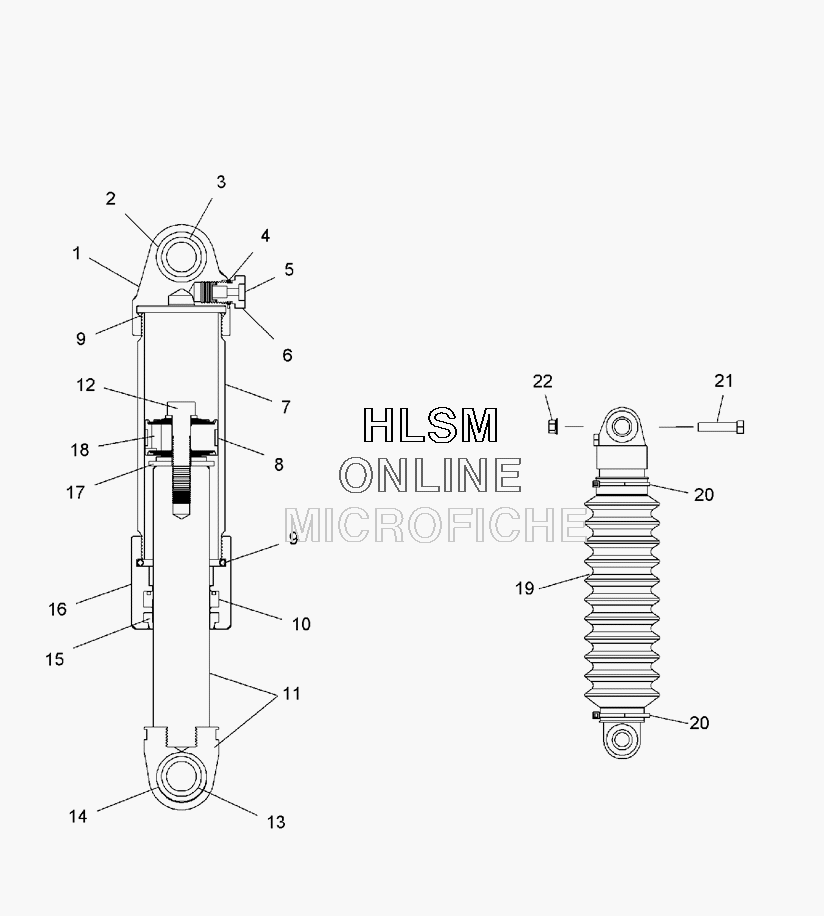

SUSPENSION - FRONT SHOCK TRACK для Polaris 800 DRAGON RMK 155 (S08PG8ES) - 2008 года выпуска
-
№АртикулНазвание
-
-7043365 SHOCK-FRT TRACK SHOCK, WEE, RMKSHOCK-FRT TRACK SHOCK, WEE, RMK
-
-1800320 ASM. SEAL REBUILD (540323) (INCL. 9, 10, 15)ASM. SEAL REBUILD (540323) (INCL. 9, 10, 15)
-
11800273 BODY LOOP (200147)BODY LOOP (200147)
-
21800289 BUSHING, SMALL (100312)BUSHING, SMALL (100312)
-
31800290 SLEEVE, SM. BUSHING (600319)SLEEVE, SM. BUSHING (600319)
-
41800108 O-RINGO-RING
-
51800109 SCREW-BUTTON HEAD 8/32SCREW-BUTTON HEAD 8/32
-
61800107 VALVE-NEEDLEVALVE-NEEDLE
-
71800274 BODY (500162)BODY (500162)
-
81800029 WEAR BAND, TEFLON (100311)WEAR BAND, TEFLON (100311)
-
91800030 O-RING BODYO-RING BODY
-
101800278 U-CUP SEAL (500323)U-CUP SEAL (500323)
-
111800318 ASM., SHAFT/EYELET (640169)ASM., SHAFT/EYELET (640169)
-
121800275 BOLT 3/8X1 1/2 (500314)BOLT 3/8X1 1/2 (500314)
-
131800287 SLEEVE, LG. BUSHING (200329)SLEEVE, LG. BUSHING (200329)
-
141800033 BUSHING/URETHANEBUSHING/URETHANE
-
151800279 WIPER SEAL (500321)WIPER SEAL (500321)
-
161800277 SEAL HEAD (500157)SEAL HEAD (500157)
-
171800276 WASHER (500503)WASHER (500503)
-
181800130 ASM-PISTON W/BAND CONVEXASM-PISTON W/BAND CONVEX
-
195413136 BOOT-FRT TRACK SHOCKBOOT-FRT TRACK SHOCK
-
207080138 CABLE TIECABLE TIE
-
217512410 BOLTBOLT
-
227542411 NUT, FLEXLOCNUT, FLEXLOC
