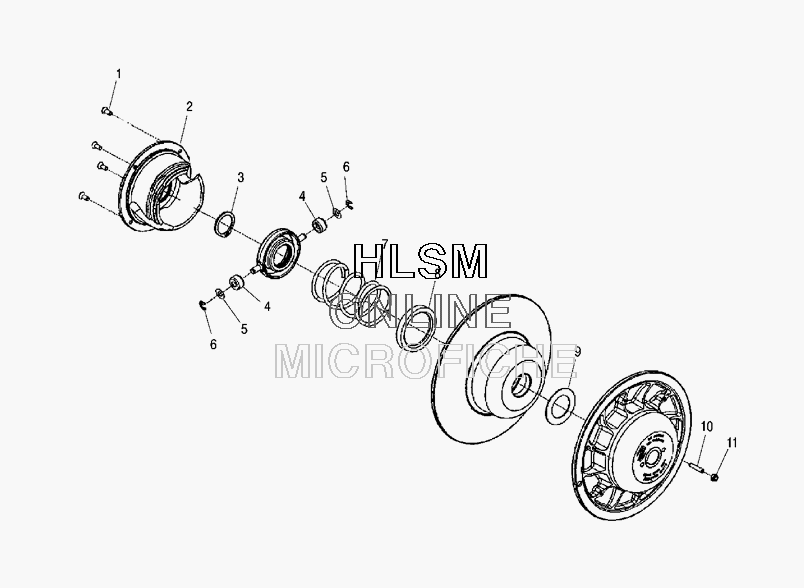

CLUTCH - DRIVEN для Polaris 800 IQ (S08PB8ES) - 2008 года выпуска
-
№АртикулНазвание
-
1322643 ASM-DRVN CLTCH, TEAM, BSC, LWTSPL (INCL. 3-5, 8-11)ASM-DRVN CLTCH, TEAM, BSC, LWTSPL (INCL. 3-5, 8-11)
-
13234381 SCREW-CAP TORX SFCH1/4-28X.625SCREW-CAP TORX SFCH1/4-28X.625
-
25135401 RAMP-DRVN, (64/42/36)ER, LWTRAMP-DRVN, (64/42/36)ER, LWT
-
37710583 RET.RING-RET.RING-
-
45434534 ROLLERROLLER
-
57556226 WASHER-THRUSTWASHER-THRUST
-
67710523 RET.E-RING-E T.375RET.E-RING-E T.375
-
77043057 SPRING-DRVN CLTCH, LEFT HAND RED/BLUESPRING-DRVN CLTCH, LEFT HAND RED/BLUE
-
87556227 WASHER-THRUSTWASHER-THRUST
-
97556370 WASHERWASHER
-
103234228 SCREW-SET HEX SKT 1/4-20X1.25SCREW-SET HEX SKT 1/4-20X1.25
-
117542103 NUT, FLEXLOCNUT, FLEXLOC
