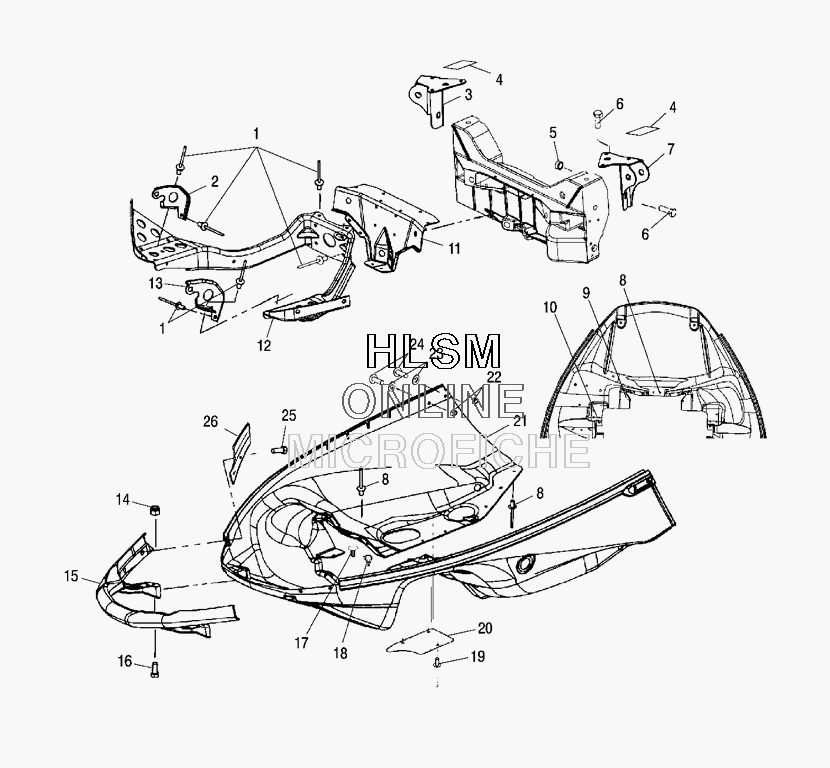

NOSEPAN ASSEMBLY для Polaris SUPERSPORT AND EURO (S08NP5BS/BE) - 2008 года выпуска
-
№АртикулНазвание
-
17661637 RIVET, INTERLOCK, ZRIVET, INTERLOCK, Z
-
25243992-067 HINGE-LOWER PIVOT, BLACK, RIGHT HANDHINGE-LOWER PIVOT, BLACK, RIGHT HAND
-
35243978 MNT, UPPER SHOCK, BLACKHD, RIGHT HANDMNT, UPPER SHOCK, BLACKHD, RIGHT HAND
-
45810947 FOAM, SEALFOAM, SEAL
-
57547180 NUT-FLANGED, 3/8-16 NYLON-ZNUT-FLANGED, 3/8-16 NYLON-Z
-
67517935 SCR-3/8, 16X1 1/4 HXSOC CS ZY3SCR-3/8, 16X1 1/4 HXSOC CS ZY3
-
75243977 MOUNT-UPPER SHOCK, BLACKHD, LEFT HANDMOUNT-UPPER SHOCK, BLACKHD, LEFT HAND
-
87621467 RIVET, BLINDRIVET, BLIND
-
97621431 RIVETRIVET
-
107661136 RVT-3/16(.376-.500)ST-ST-LF-ZRVT-3/16(.376-.500)ST-ST-LF-Z
-
115244049-067 BRKT, RAD.ROD SUPPORT, BLACKBRKT, RAD.ROD SUPPORT, BLACK
-
125244050 BRACE, PAN LOWERBRACE, PAN LOWER
-
135243991-067 HINGE-LOWER PIVOT, LEFT HAND, BLACKHINGE-LOWER PIVOT, LEFT HAND, BLACK
-
147542153 NUT, NYLOK, FLANGEDNUT, NYLOK, FLANGED
-
155434439-070 BUMPER-FRT, W/OUT NUTSERTS, BLACKBUMPER-FRT, W/OUT NUTSERTS, BLACK
-
167512163 BOLTBOLT
-
177670131 PLUG-NYLON, .322X.480PLUG-NYLON, .322X.480
-
184020139 CLIP, ROSEBUDCLIP, ROSEBUD
-
197621472 RIVETRIVET
-
205245853 SHIELD, HEAT, EXTENDEDSHIELD, HEAT, EXTENDED
-
215434343-070 NOSEPAN-GAS ASSIST, BLACKNOSEPAN-GAS ASSIST, BLACK
-
227542122 NUT-NYLOKNUT-NYLOK
-
237555827 WASHERWASHER
-
247515166 SCREWSCREW
-
257517986 SCR-1/4-10 3/4 UNSLT HWH-YSCR-1/4-10 3/4 UNSLT HWH-Y
-
265244888 GUIDE-HOOD, LEFT HANDGUIDE-HOOD, LEFT HAND
-
265244889 GUIDE-HOOD, RIGHT HANDGUIDE-HOOD, RIGHT HAND
