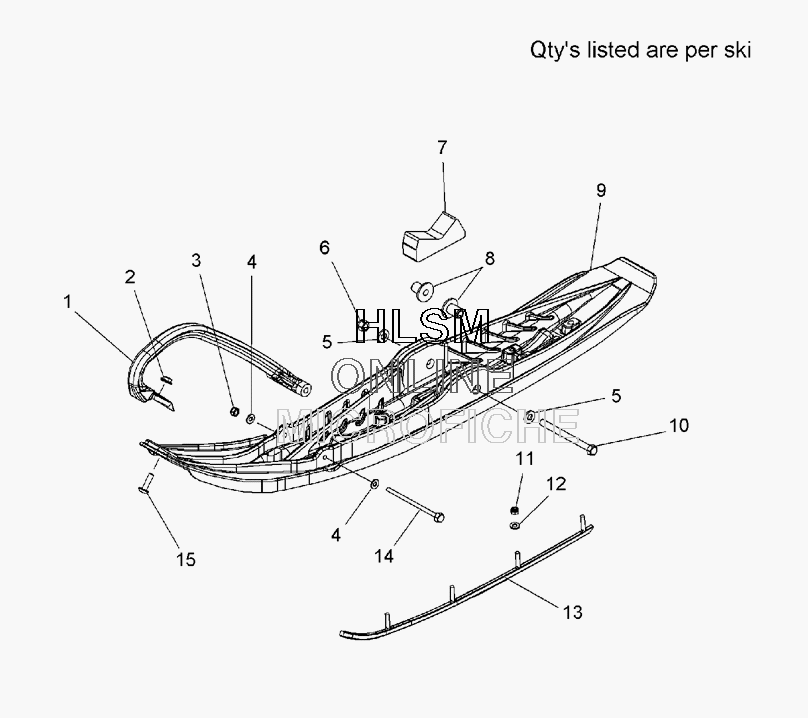

SKI ASSEMBLY для Polaris TRAIL RMK EURO (S08NJ5BE) - 2008 года выпуска
-
№АртикулНазвание
-
15435681-070 TOE-PLASTIC SKI, BLACKTOE-PLASTIC SKI, BLACK
-
27542321 NUT, FLANGENUT, FLANGE
-
37542122 NUT-NYLOKNUT-NYLOK
-
47558301 WASHER, FLATWASHER, FLAT
-
57556130 WASHER-.406X1.25X.125WASHER-.406X1.25X.125
-
67542439 NUT, NYLOKNUT, NYLOK
-
75412018 STOP, RUBBERSTOP, RUBBER
-
85134797 BUSHING-PLSTC SKI, .390 ID, LONGBUSHING-PLSTC SKI, .390 ID, LONG
-
91822933-070 ASM-SKI, IQ2 TRAK, SVC, BLACKASM-SKI, IQ2 TRAK, SVC, BLACK
-
107518481 SCR-3/8-24X6.00-HXCP-GR8-YSCR-3/8-24X6.00-HXCP-GR8-Y
-
117542324 NUT, NYLOKNUT, NYLOK
-
127555843 WASHER, WROUGHTWASHER, WROUGHT
-
132875954 CARBIDE SKAG 3'' 60 DEG. IQ (PAIR)CARBIDE SKAG 3'' 60 DEG. IQ (PAIR)
-
147518047 BOLT-1/4-20X4.75 HX/CP GRSBOLT-1/4-20X4.75 HX/CP GRS
-
157516317 SCREW-5/16-18X1.00, TORX, NYLONSCREW-5/16-18X1.00, TORX, NYLON
