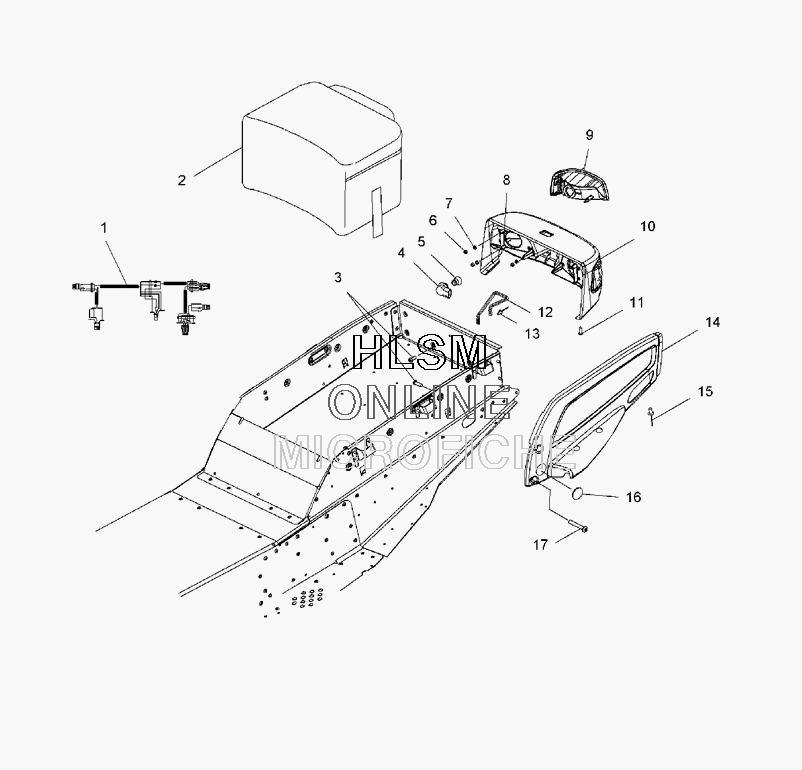

CARGO BOX W/ TAILLIGHT ASSY для Polaris TRAIL TOURING DELUXE FLEET (S08NT5BSF) - 2008 года выпуска
-
№АртикулНазвание
-
-2410324-070 ASM-TAILLIGHT, EDGE TOURING, BLACK (INCL. 6-9)ASM-TAILLIGHT, EDGE TOURING, BLACK (INCL. 6-9)
-
12461166 HARNESS-TAILLIGHTHARNESS-TAILLIGHT
-
22875964 BAG, 2 UP TOURINGBAG, 2 UP TOURING
-
37512076 SCREWSCREW
-
44010767 SOCKET-BULBSOCKET-BULB
-
54010764 BULB-TAILLIGHTBULB-TAILLIGHT
-
67546703 NUT, NYLOKNUT, NYLOK
-
77556088 WASHER, FLATWASHER, FLAT
-
87670042 U CLIPU CLIP
-
92410327 ASM-REFLECTOR, LEFT HANDASM-REFLECTOR, LEFT HAND
-
92410328 ASM-REFLECTOR, RIGHT HANDASM-REFLECTOR, RIGHT HAND
-
117670125 FASTNER-PUSH-ON CLIP, .250FASTNER-PUSH-ON CLIP, .250
-
125246523 BAIL-TRUNK LOCKBAIL-TRUNK LOCK
-
137661637 RIVET, INTERLOCK, ZRIVET, INTERLOCK, Z
-
145435128-070 SKIRT-SNOW, EDGE, LEFT HAND, BLACKSKIRT-SNOW, EDGE, LEFT HAND, BLACK
-
145435129-070 SKIRT-SNOW, EDGE, RIGHT HAND, BLACKSKIRT-SNOW, EDGE, RIGHT HAND, BLACK
-
145412449 PLUG-HANDWARMER SWITCH (RH ONLY)PLUG-HANDWARMER SWITCH (RH ONLY)
-
157621467 RIVET, BLINDRIVET, BLIND
-
165410582 PLUG, CATCH HOLEPLUG, CATCH HOLE
-
177517916 SCR-1/4-20X3/4-TR/TX/TAP-MSCR-1/4-20X3/4-TR/TX/TAP-M
