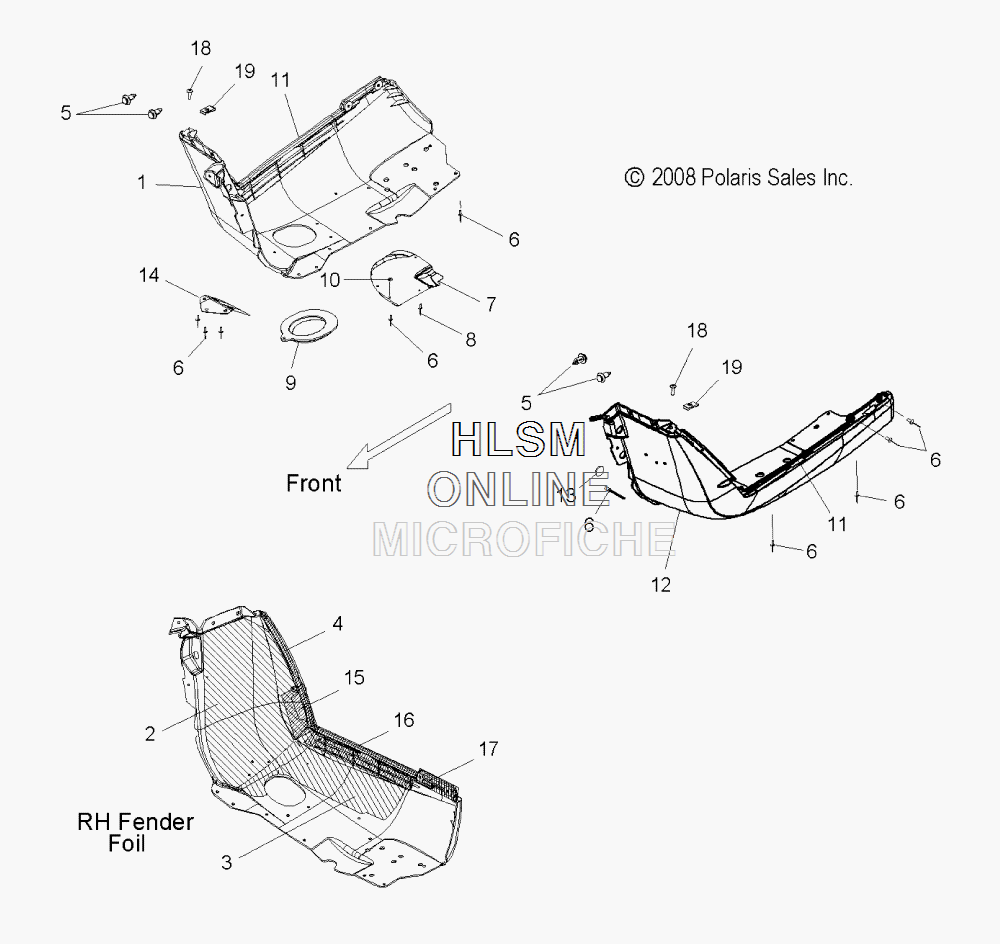

FENDERS для Polaris 600 DRAGON ES EURO (S09PE6HEL) - 2009 года выпуска
-
№АртикулНазвание
-
12633674-070 ASM., FENDER, RIGHT HAND (BLACK) (INCL. 2-4,11,15-17)ASM., FENDER, RIGHT HAND (BLACK) (INCL. 2-4,11,15-17)
-
25812972 FOAM/FIBER, FENDER, UPPER, RIGHT HANDFOAM/FIBER, FENDER, UPPER, RIGHT HAND
-
35812973 FOAM/FIBER, FENDER, LOWER, RIGHT HANDFOAM/FIBER, FENDER, LOWER, RIGHT HAND
-
45812255 FOILFOIL
-
57661859 RIVET, NYLONRIVET, NYLON
-
67621467 RIVETRIVET
-
75249116-329 PLATE, PROTECTION, FENDER (BLACK)PLATE, PROTECTION, FENDER (BLACK)
-
87661136 RIVETRIVET
-
95437194 BOOT, OUTLET, EXHAUSTBOOT, OUTLET, EXHAUST
-
107556044 WASHERWASHER
-
115521697-350 SEAL, BULBSEAL, BULB
-
122633673-070 ASM., FENDER, LEFT HAND (BLACK) (INCL. 11)ASM., FENDER, LEFT HAND (BLACK) (INCL. 11)
-
135411009 PLUG, HOLEPLUG, HOLE
-
145249759 DEFLECTOR, EXHAUST W/HOLESDEFLECTOR, EXHAUST W/HOLES
-
155813318 FOAM/FIBER, FENDERFOAM/FIBER, FENDER
-
165813314 FIBER, FENDERFIBER, FENDER
-
175812772 FOIL, SIDE PANELFOIL, SIDE PANEL
-
187517916 SCREWSCREW
-
197670057 NUT, U-TYPE, SPEEDNUT, U-TYPE, SPEED
Все узлы модели:
- AIR INTAKE SYSTEM
- BATTERY W/CABLES
- BRAKE ASSEMBLY KIT
- BUMPER - FRONT W/ NOSEPAN- FOAM- AND FOIL
- BUMPER - REAR W/SNOWFLAP AND TAILLIGHT
- CHAINCASE ASSEMBLY
- CHASSIS - FRONT
- CHASSIS ASSEMBLY
- CLUTCH - PRIMARY
- CLUTCH - SECONDARY
- CLUTCH GUARD W/COVER
- CONSOLE
- COOLING SYSTEM
- CRANKCASE ASSEMBLY
- CRANKSHAFT ASSY. W/ PISTON
- CYLINDER ASSEMBLY
- DECALS
- ELECTRICAL - IGNITION SYSTEM
- ELECTRICAL - SENSORS AND SWITCHES
- ENGINE MOUNTING W/ SHORT BLOCK
- EXHAUST SYSTEM
- EXHAUST VALVES W/SOLENOID
- • FENDERS
- FOOTRESTS
- FUEL TANK
- GAUGE - MULTI FUNCTION
- HANDLEBAR ASSEMBLY
- HEADLIGHT AND TAILLIGHT
- HOOD - FOAM/FOIL
- HOOD - SCREENS - HINGES
- HOOD ASSEMBLY W/ HEADLIGHT
- JACKSHAFT ASSEMBLY
- OIL PUMP W/LINES
- OIL TANK ASSEMBLY
- REED VALVE W/THROTTLE BODY ADAPTOR
- SEAT ASSEMBLY
- SIDE PANELS
- SKI ASSEMBLY
- STARTER - RECOIL ASSEMBLY
- STARTING MOTOR
- STEERING - LOWER W/TIE RODS
- STEERING POST ASSEMBLY
- SUSPENSION - FRONT
- SUSPENSION - FRONT SHOCK TRACK
- SUSPENSION - IFS SHOCK
- SUSPENSION - RAIL MOUNTING
- SUSPENSION - REAR
- SUSPENSION - REAR SHOCK TRACK
- SUSPENSION - SWAYBAR
- THROTTLE BODY ASSEMBLY W/RAIL AND LINES
- THROTTLE CONTROL ASSEMBLY
- TOOL KIT W/OWNERS MANUAL
- TORQUE ARM - FRONT
- TORQUE ARM - REAR
- WATER PUMP
- WINDSHIELD
- WIRING HARNESS
