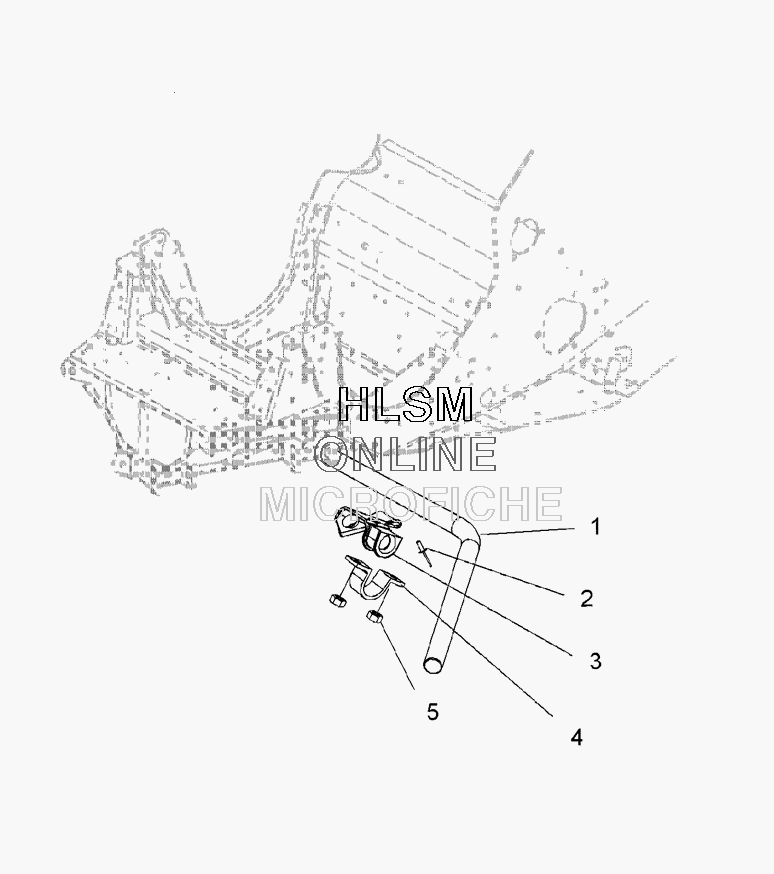

SUSPENSION - SWAYBAR для Polaris 600 DRAGON SWITCHBACK EURO (S09PS6HEL) - 2009 года выпуска
-
№АртикулНазвание
-
15248794-067 BAR-SWAY, .594, BLACKBAR-SWAY, .594, BLACK
-
27621431 RIVETRIVET
-
35435516 BUSHING-SWAY BAR, 9/16, LEFT HANDBUSHING-SWAY BAR, 9/16, LEFT HAND
-
35435517 BUSHING-SWAY BAR, 9/16, RIGHT HANDBUSHING-SWAY BAR, 9/16, RIGHT HAND
-
45134458 CLAMP-SWAY BAR MOUNTINGCLAMP-SWAY BAR MOUNTING
-
57542122 NUT-NYLOKNUT-NYLOK
