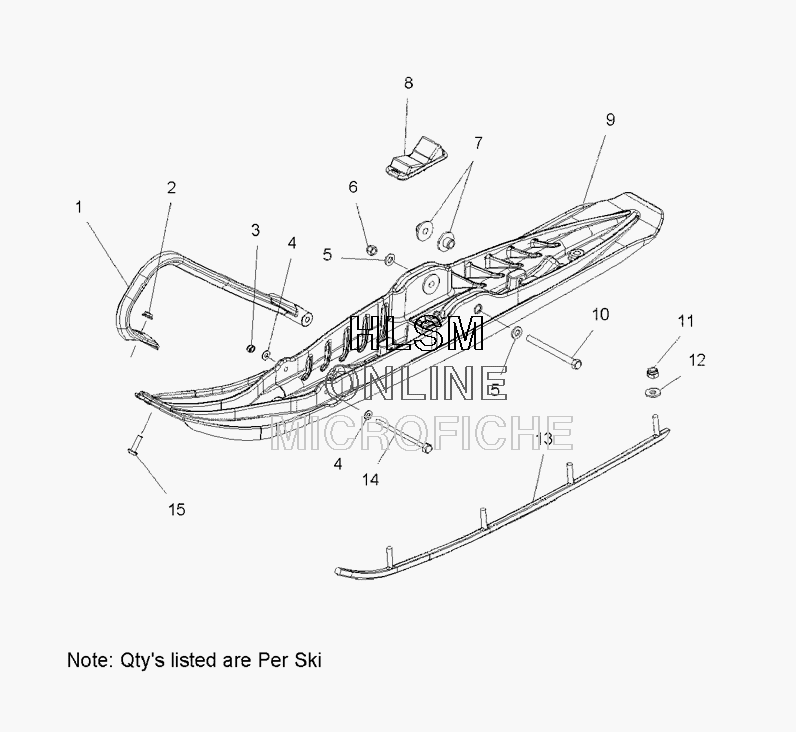

SKI ASSEMBLY для Polaris 600 IQ EURO (S09PB6HEL) - 2009 года выпуска
-
№АртикулНазвание
-
15435681-070 TOE-PLASTIC SKI, BLACKTOE-PLASTIC SKI, BLACK
-
27542321 NUT,FLANGENUT,FLANGE
-
37542122 NUT-NYLOKNUT-NYLOK
-
47558301 WASHER, FLATWASHER, FLAT
-
57556130 WASHER-.406X1.25X.125WASHER-.406X1.25X.125
-
67547263 NUT-3/8-24 NYLOKNUT-3/8-24 NYLOK
-
75134797 BUSHING-PLSTC SKI,.390 ID,LONGBUSHING-PLSTC SKI,.390 ID,LONG
-
85413116 STOP-SKI RUBBER,CRSTOP-SKI RUBBER,CR
-
91822933-070 ASM-SKI,IQ2 TRAK,SVC, BLACK (INCL. 7)ASM-SKI,IQ2 TRAK,SVC, BLACK (INCL. 7)
-
107518481 SCR-3/8-24X6.00-HXCP-GR8-YSCR-3/8-24X6.00-HXCP-GR8-Y
-
117542324 NUT,NYLOKNUT,NYLOK
-
127555843 WASHER,WROUGHTWASHER,WROUGHT
-
132875954 CARBIDE SKAG 3'' 60 DEG. IQ (PAIR)CARBIDE SKAG 3'' 60 DEG. IQ (PAIR)
-
147518047 BOLT-1/4-20X4.75 HX/CP GRSBOLT-1/4-20X4.75 HX/CP GRS
-
157516317 SCREW-5/16-18X1.00,TORX,NYLONSCREW-5/16-18X1.00,TORX,NYLON
