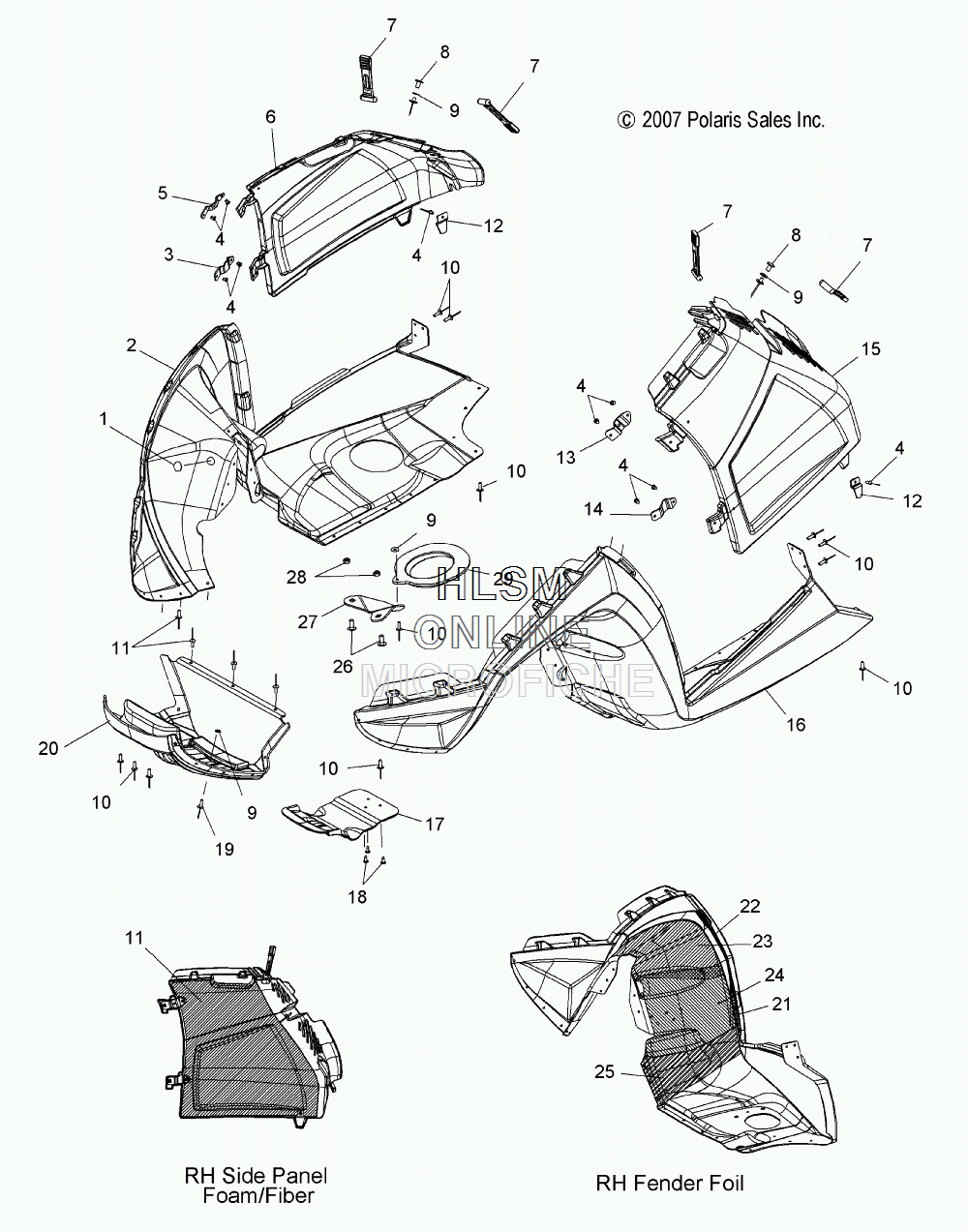

NOSEPAN AND SIDEPANELS для Polaris 600 IQ RACER EURO (S09MX6JE) - 2009 года выпуска
-
№АртикулНазвание
-
15410582 PLUG, CLUTCH HOLEPLUG, CLUTCH HOLE
-
22633609-070 ASM., FENDER, W/FOIL, RIGHT HAND (BLACK) (INCL. 3-5,7-10,21-25)ASM., FENDER, W/FOIL, RIGHT HAND (BLACK) (INCL. 3-5,7-10,21-25)
-
35248923 SUPPORT, SIDE PANEL, LOWER, RIGHT HANDSUPPORT, SIDE PANEL, LOWER, RIGHT HAND
-
47621472 RIVETRIVET
-
55249036 SUPPORT, SIDE PANEL, UPPER, RIGHT HANDSUPPORT, SIDE PANEL, UPPER, RIGHT HAND
-
62633613-070 ASM., SIDE PANEL, RIGHT HAND (BLACK) (INCL. 3-5,7-9,11,12)ASM., SIDE PANEL, RIGHT HAND (BLACK) (INCL. 3-5,7-9,11,12)
-
75433150 STRAPSTRAP
-
81015421 ASM., RIVET/RETAINERASM., RIVET/RETAINER
-
97555904 RIVET, BURRRIVET, BURR
-
107621467 RIVETRIVET
-
115813245 FOAM/FIBER, SIDE PANEL, RIGHT HANDFOAM/FIBER, SIDE PANEL, RIGHT HAND
-
125249245 BRACKET, SIDE PANEL, TABBRACKET, SIDE PANEL, TAB
-
135249035 SUPPORT, SIDE PANEL, UPPER, LEFT HANDSUPPORT, SIDE PANEL, UPPER, LEFT HAND
-
145248922 SUPPORT, SIDE PANEL, LOWER, LEFT HANDSUPPORT, SIDE PANEL, LOWER, LEFT HAND
-
152633287-070 ASM., PANEL, SIDE, LEFT HAND (BLACK) (INCL. 4,7,8,12-14)ASM., PANEL, SIDE, LEFT HAND (BLACK) (INCL. 4,7,8,12-14)
-
165436889-070 FENDER, LEFT HAND (BLACK)FENDER, LEFT HAND (BLACK)
-
175436882-070 PLATE, SKID (BLACK)PLATE, SKID (BLACK)
-
187518352 SCREWSCREW
-
197621418 RIVETRIVET
-
205436358-070 NOSEPAN (BLACK)NOSEPAN (BLACK)
-
215811948 FOILFOIL
-
225812255 FOILFOIL
-
235812837 FOIL, FENDER, UPPER, RIGHT HANDFOIL, FENDER, UPPER, RIGHT HAND
-
245812838 FOIL, FENDER, LOWER, RIGHT HANDFOIL, FENDER, LOWER, RIGHT HAND
-
255813308 FOIL, FENDER BOTTOM, RIGHT HANDFOIL, FENDER BOTTOM, RIGHT HAND
-
267512377 BOLT, CARRIAGEBOLT, CARRIAGE
-
275251444 DEFLECTOR, SNOW, EXHAUSTDEFLECTOR, SNOW, EXHAUST
-
287542321 NUT, FLANGENUT, FLANGE
-
295436066 BOOT, EXHAUST, OUTLETBOOT, EXHAUST, OUTLET
