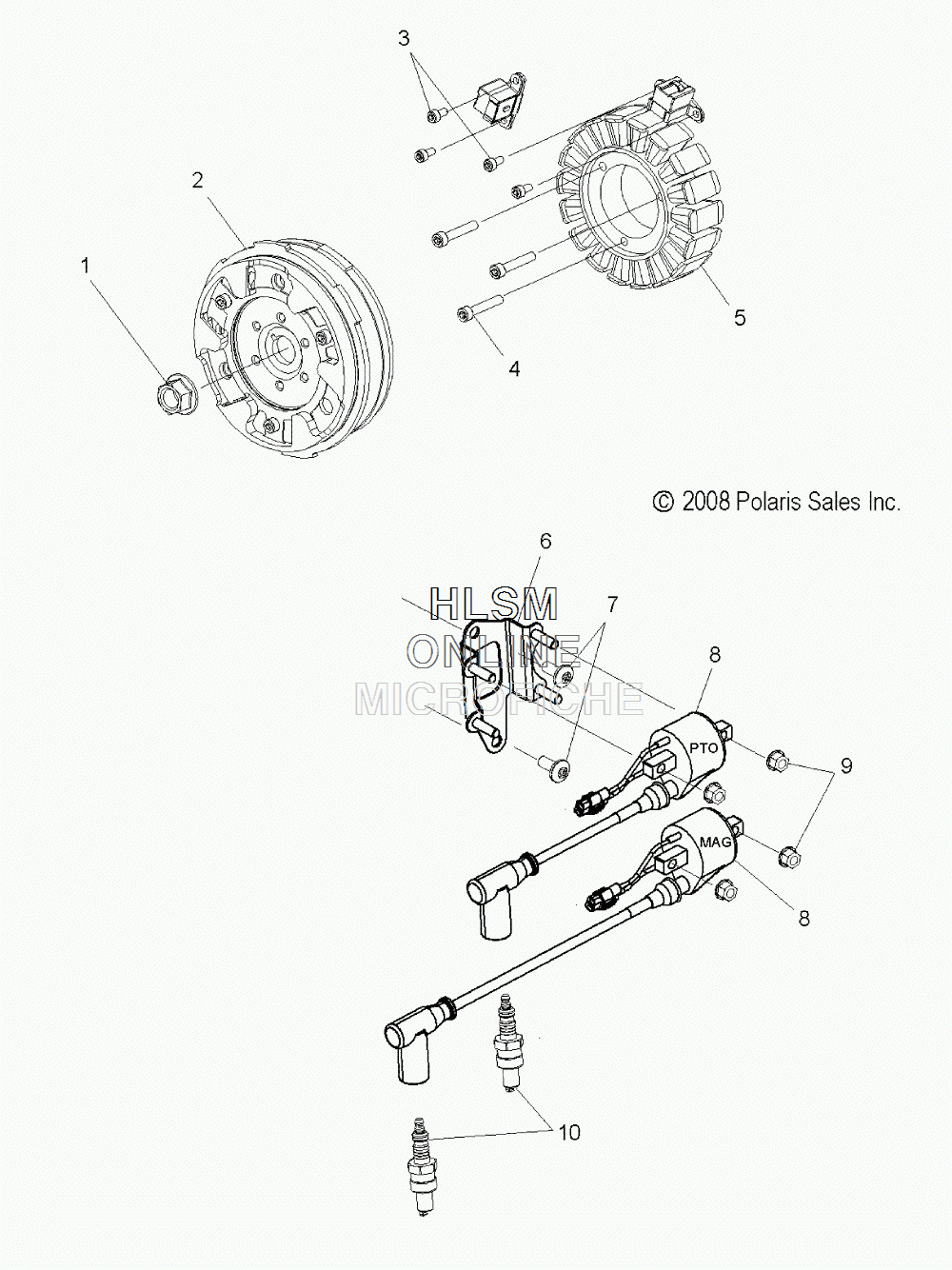

ELECTRICAL - IGNITION SYSTEM для Polaris 600 IQ SHIFT 136 (S09PR6KS) - 2009 года выпуска
-
№АртикулНазвание
-
17518299 NUT, FLANGENUT, FLANGE
-
24012121 FLYWHEELFLYWHEEL
-
37517847 SCREWSCREW
-
47517848 SCREWSCREW
-
54012113 STATORSTATOR
-
61016573 ASM., BRACKET/COIL W/STUDSASM., BRACKET/COIL W/STUDS
-
77515148 SCREWSCREW
-
84012140 CAP, IGNITION W/SEALCAP, IGNITION W/SEAL
-
84012168 COIL, IGNITION, CDI, DC-SDI, MAGCOIL, IGNITION, CDI, DC-SDI, MAG
-
84012169 COIL, IGNITION, CDI, DC-SDI, PTOCOIL, IGNITION, CDI, DC-SDI, PTO
-
97546703 NUT, NYLOKNUT, NYLOK
-
103022082 PLUG, SPARK, BPR 9ESPLUG, SPARK, BPR 9ES
