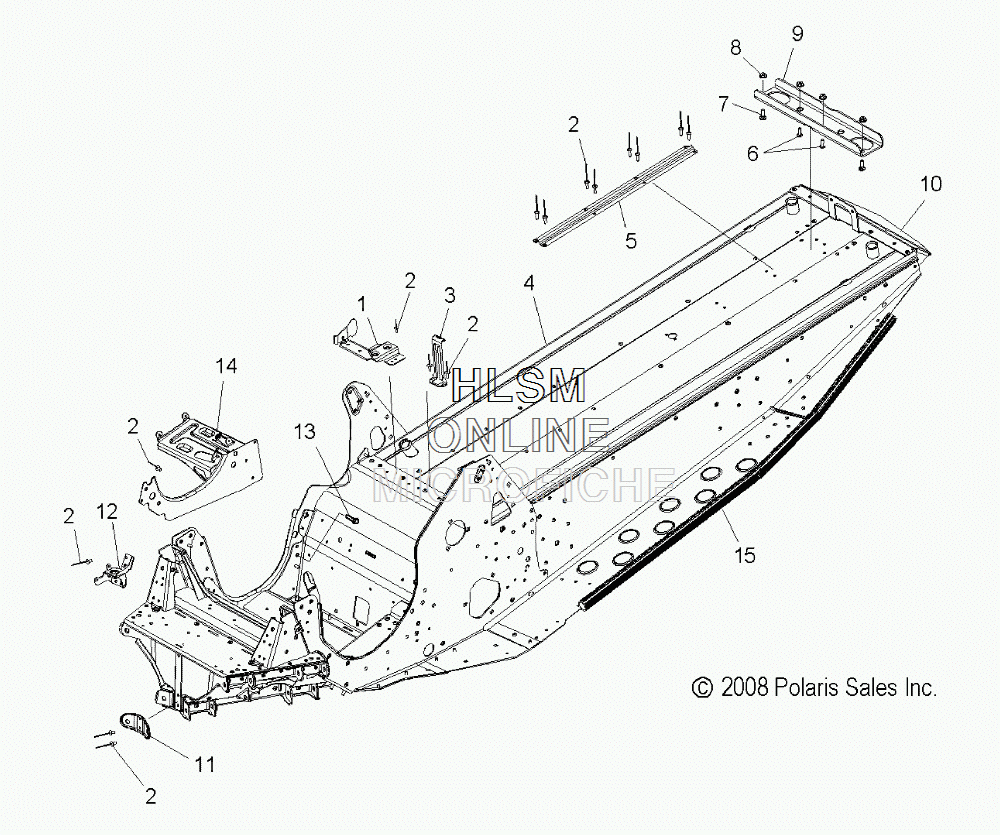

CHASSIS ASSEMBLY для Polaris 800 DRAGON ES EURO (S09PE8EEL) - 2009 года выпуска
-
№АртикулНазвание
-
15249094 BRACKET, OIL BOTTLE, LOWERBRACKET, OIL BOTTLE, LOWER
-
27661637 RIVETRIVET
-
35251199 BRACKET, AIR BOX, LOWERBRACKET, AIR BOX, LOWER
-
41016502-309 ASM., CHASSIS, NATURALASM., CHASSIS, NATURAL
-
55251356 COVER, TAILLIGHT HARNESSCOVER, TAILLIGHT HARNESS
-
67512297 SCREWSCREW
-
77512193 BOLT, CARRIAGEBOLT, CARRIAGE
-
87542153 NUT, FLANGENUT, FLANGE
-
95251625 BRACKET, REINFORCEMENT, TUNNELBRACKET, REINFORCEMENT, TUNNEL
-
105250893 CLOSEOFF, TUNNEL, REARCLOSEOFF, TUNNEL, REAR
-
115247372 BRACE, FRONT LOWER A-ARMBRACE, FRONT LOWER A-ARM
-
121261403 BRACKET, CHASSIS, TUNED PIPEBRACKET, CHASSIS, TUNED PIPE
-
137517810 SCREWSCREW
-
141016055-329 BRACKET, CHASSIS/RESONATOR (BLACK)BRACKET, CHASSIS/RESONATOR (BLACK)
-
155136054 GRIPPER, TUNNEL, LEFT HANDGRIPPER, TUNNEL, LEFT HAND
-
155136055 GRIPPER, TUNNEL, RIGHT HANDGRIPPER, TUNNEL, RIGHT HAND
Все узлы модели:
- AIR INTAKE SYSTEM
- BATTERY W/CABLES
- BRAKE ASSEMBLY KITS
- BUMPER - FRONT W/ NOSEPAN- FOAM- AND FOIL
- BUMPER - REAR W/SNOWFLAP AND TAILLIGHT
- CHAINCASE ASSEMBLY
- CHASSIS - FRONT
- • CHASSIS ASSEMBLY
- CLUTCH - PRIMARY
- CLUTCH - SECONDARY
- CLUTCH GUARD W/COVER
- CONSOLE
- COOLING SYSTEM
- CRANKCASE ASSEMBLY
- CRANKSHAFT ASSY. W/ PISTON
- CYLINDER ASSEMBLY
- DECALS
- ELECTRICAL - IGNITION SYSTEM
- ELECTRICAL - SENSORS AND SWITCHES
- ENGINE MOUNTING W/ SHORT BLOCK
- EXHAUST SYSTEM
- EXHAUST VALVES W/SOLENOID
- FENDERS
- FOOTRESTS
- FUEL TANK
- GAUGE - MULTI FUNCTION
- HANDLEBAR ASSEMBLY
- HEADLIGHT AND TAILLIGHT
- HOOD - FOAM/FOIL
- HOOD - SCREENS - HINGES
- HOOD ASSEMBLY W/ HEADLIGHT
- JACKSHAFT ASSEMBLY
- OIL PUMP W/LINES
- OIL TANK ASSEMBLY
- REED VALVE W/THROTTLE BODY ADAPTOR
- SEAT ASSEMBLY
- SIDE PANELS
- SKI ASSEMBLY
- STARTER - RECOIL ASSEMBLY
- STARTING MOTOR
- STEERING - LOWER W/TIE RODS
- STEERING POST ASSEMBLY
- SUSPENSION - FRONT
- SUSPENSION - FRONT SHOCK TRACK
- SUSPENSION - IFS SHOCK
- SUSPENSION - RAIL MOUNTING
- SUSPENSION - REAR
- SUSPENSION - REAR SHOCK TRACK
- SUSPENSION - SWAYBAR
- THROTTLE BODY ASSEMBLY W/RAIL AND LINES
- THROTTLE CONTROL ASSEMBLY
- TOOL KIT W/ OWNERS MANUAL
- TORQUE ARM - FRONT
- TORQUE ARM - REAR
- WATER PUMP
- WINDSHIELD
- WIRING HARNESS
