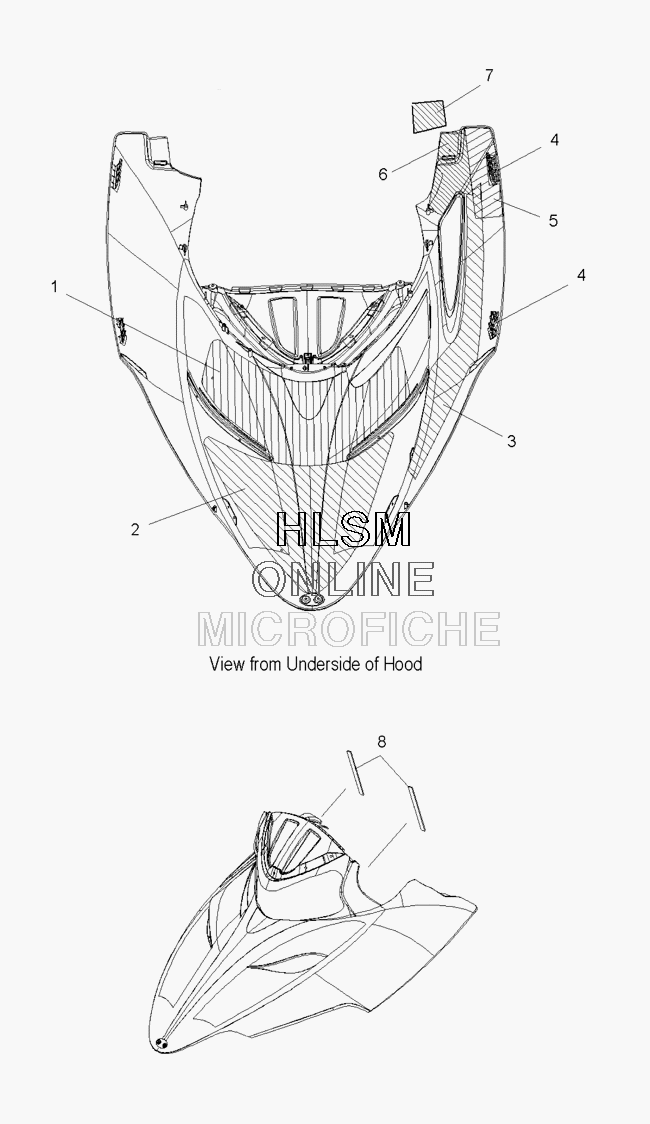

HOOD - FOAM/FOIL для Polaris 800 DRAGON RMK 163 ES (S09PH8ESL) - 2009 года выпуска
-
№АртикулНазвание
-
15813137 FOAM/FIBER-HOOD,UPPER,HI TEMPFOAM/FIBER-HOOD,UPPER,HI TEMP
-
25813138 FOAM/FIBER-HOOD,LOWER,HI TEMPFOAM/FIBER-HOOD,LOWER,HI TEMP
-
35813296 FOAM/FIBER-HOOD SIDE, RIGHT HANDFOAM/FIBER-HOOD SIDE, RIGHT HAND
-
45812834 FOIL, RIB, SIDE PANELFOIL, RIB, SIDE PANEL
-
55813288 FOIL-REAR HOOD,SDIFOIL-REAR HOOD,SDI
-
65813289 FOIL-REAR HOOD,SDIFOIL-REAR HOOD,SDI
-
75812929 FABRIC-HEAT RESFABRIC-HEAT RES
-
85813125 FOAM-INSTRUMENT POD, SEAL, 10''FOAM-INSTRUMENT POD, SEAL, 10''
Все узлы модели:
- BATTERY W/CABLES
- BRAKE ASSEMBLY
- BUMPER - REAR W/SNOWFLAP
- BUMPER - REAR W/SNOWFLAP AND TAILLIGHT
- CHAINCASE ASSEMBLY
- CHASSIS - FRONT
- CHASSIS ASSEMBLY
- CLUTCH - PRIMARY
- CLUTCH - SECONDARY
- CLUTCH GUARD W/COVER
- CONSOLE
- COOLING SYSTEM
- CRANKCASE ASSEMBLY
- CYLINDER ASSEMBLY
- DECALS
- ENGINE MOUNTING W/ SHORT BLOCK
- EXHAUST SYSTEM
- EXHAUST VALVES W/SOLENOID
- FENDERS
- FUEL TANK
- GAUGE - MULTI FUNCTION
- HANDLEBAR ASSEMBLY
- HEADLIGHT AND TAILLIGHT
- • HOOD - FOAM/FOIL
- HOOD - FOAM/FOIL/SCREENS
- HOOD - SCREENS - HINGES
- IGNITION SYSTEM
- JACKSHAFT ASSEMBLY W/ DRIVE BELT
- OIL PUMP W/LINES
- OIL TANK
- PISTON AND CRANKSHAFT
- RAIL MOUNTING
- REED VALVE W/THROTTLE BODY ADAPTOR
- SEAT
- SIDE PANELS
- SKI ASSEMBLY
- STARTER - RECOIL ASSEMBLY
- STARTING MOTOR
- STEERING - LOWER W/TIE RODS
- STEERING POST ASSEMBLY
- SUSPENSION - FRONT
- SUSPENSION - FRONT SHOCK TRACK
- SUSPENSION - FRONT SHOCK TRACK - EXTERNAL
- SUSPENSION - FRONT TORQUE ARM ASSEMBLY
- SUSPENSION - IFS SHOCK
- SUSPENSION - IFS SHOCK - EXTERNAL
- SUSPENSION - REAR
- SUSPENSION - REAR SHOCK TRACK
- SUSPENSION - REAR SHOCK TRACK - EXTERNAL
- SUSPENSION - REAR TORQUE ARM ASSEMBLY
- SUSPENSION - SWAYBAR
- SWITCHES - SENSORS
- THROTTLE BODY ASSEMBLY W/FUEL LINES
- THROTTLE CONTROL ASSEMBLY
- TOOL KIT W/OWNERS MANUAL
- WATER PUMP
- WINDSHIELD
- WIRE HARNESS W/COMPONENTS
