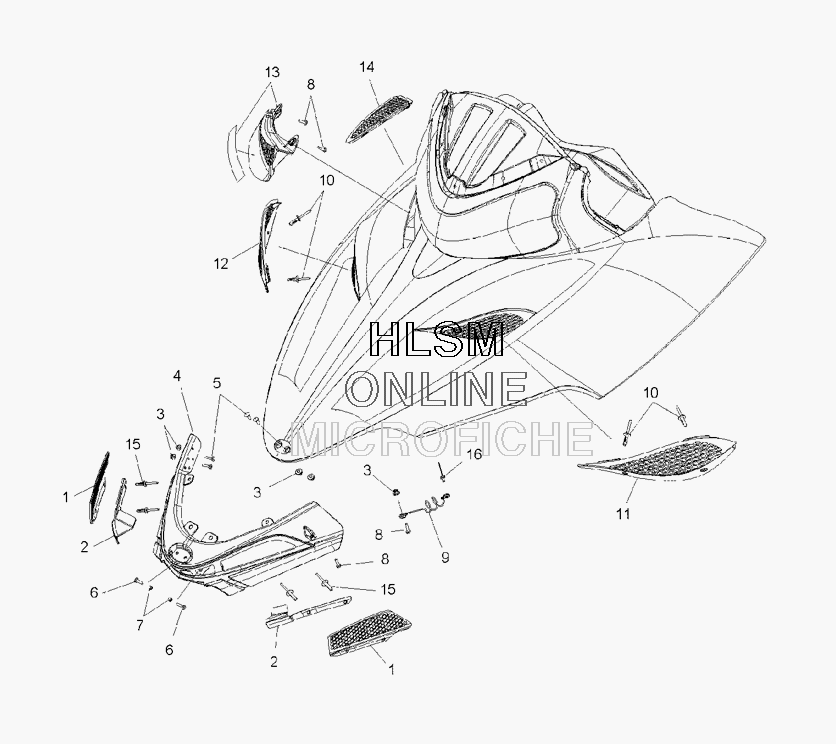

HOOD - SCREENS - HINGES для Polaris 800 RMK 155 ES (S09PM8ESL) - 2009 года выпуска
-
№АртикулНазвание
-
15437655-070 SCREEN-HINGE, LEFT HAND, BLACKSCREEN-HINGE, LEFT HAND, BLACK
-
15437656-070 SCREEN-HINGE, RIGHT HAND, BLACKSCREEN-HINGE, RIGHT HAND, BLACK
-
25437856-070 COVER-HINGE OPENING, LEFT HAND, BLACKCOVER-HINGE OPENING, LEFT HAND, BLACK
-
25437857-070 COVER-HINGE OPENING, RIGHT HAND, BLACKCOVER-HINGE OPENING, RIGHT HAND, BLACK
-
37518287 NUT-#10-24 NYLOK INSERTNUT-#10-24 NYLOK INSERT
-
45437441-070 HINGE-GRILL,HOOD, BLACKHINGE-GRILL,HOOD, BLACK
-
57518281 SCR-10-24X5/8 TORX TH MS STL YSCR-10-24X5/8 TORX TH MS STL Y
-
67518912 SCR-1/4-20X3/4PH/TR,GR2W/PATCHSCR-1/4-20X3/4PH/TR,GR2W/PATCH
-
75333796 SPACERSPACER
-
87518577 SCR-10X 5/8 TX PN PLST-243SCR-10X 5/8 TX PN PLST-243
-
97081133 CABLE-HOOD RETAINERCABLE-HOOD RETAINER
-
107081040 RIVET-PLASTIC,R-LOCK,.197 DIARIVET-PLASTIC,R-LOCK,.197 DIA
-
115435846-070 SCREEN-HOOD,HI TEMP, LEFT HAND, BLACKSCREEN-HOOD,HI TEMP, LEFT HAND, BLACK
-
125435847-070 SCREEN-HOOD,HI TEMP, RIGHT HAND, BLACKSCREEN-HOOD,HI TEMP, RIGHT HAND, BLACK
-
135436408-070 SCREEN-BRAKE VENT, BLACKSCREEN-BRAKE VENT, BLACK
-
135812984 FOAM-ACRYLIC TAPE,1/2'' X 9''FOAM-ACRYLIC TAPE,1/2'' X 9''
-
145435923-070 SCREEN-HOOD,TOP, BLACKSCREEN-HOOD,TOP, BLACK
-
157661922 RIVET-PLASTIC,(.236-.394)RIVET-PLASTIC,(.236-.394)
-
167661637 RIVET,INTERLOCK,ZRIVET,INTERLOCK,Z
Все узлы модели:
- BATTERY W/CABLES
- BRAKE ASSEMBLY
- BUMPER - REAR W/SNOWFLAP
- BUMPER - REAR W/SNOWFLAP AND TAILLIGHT
- CHAINCASE ASSEMBLY
- CHASSIS - FRONT
- CHASSIS ASSEMBLY
- CLUTCH - PRIMARY
- CLUTCH - SECONDARY
- CLUTCH GUARD W/COVER
- CONSOLE
- COOLING SYSTEM
- CRANKCASE ASSEMBLY
- CYLINDER ASSEMBLY
- DECALS
- ENGINE MOUNTING W/ SHORT BLOCK
- EXHAUST SYSTEM
- EXHAUST VALVES W/SOLENOID
- FENDERS
- FUEL TANK
- GAUGE - MULTI FUNCTION
- HANDLEBAR ASSEMBLY
- HEADLIGHT AND TAILLIGHT
- HOOD - FOAM/FOIL
- HOOD - FOAM/FOIL/SCREENS
- • HOOD - SCREENS - HINGES
- IGNITION SYSTEM
- JACKSHAFT ASSEMBLY W/ DRIVE BELT
- OIL PUMP W/LINES
- OIL TANK
- PISTON AND CRANKSHAFT
- RAIL MOUNTING
- REED VALVE W/THROTTLE BODY ADAPTOR
- SEAT
- SIDE PANELS
- SKI ASSEMBLY
- STARTER - RECOIL ASSEMBLY
- STARTING MOTOR
- STEERING - LOWER W/TIE RODS
- STEERING POST ASSEMBLY
- SUSPENSION - FRONT
- SUSPENSION - FRONT SHOCK TRACK
- SUSPENSION - FRONT SHOCK TRACK - EXTERNAL
- SUSPENSION - FRONT TORQUE ARM ASSEMBLY
- SUSPENSION - IFS SHOCK
- SUSPENSION - IFS SHOCK - EXTERNAL
- SUSPENSION - REAR
- SUSPENSION - REAR SHOCK TRACK
- SUSPENSION - REAR SHOCK TRACK - EXTERNAL
- SUSPENSION - REAR TORQUE ARM ASSEMBLY
- SUSPENSION - SWAYBAR
- SWITCHES - SENSORS
- THROTTLE BODY ASSEMBLY W/FUEL LINES
- THROTTLE CONTROL ASSEMBLY
- TOOL KIT W/OWNERS MANUAL
- WATER PUMP
- WINDSHIELD
- WIRE HARNESS W/COMPONENTS
