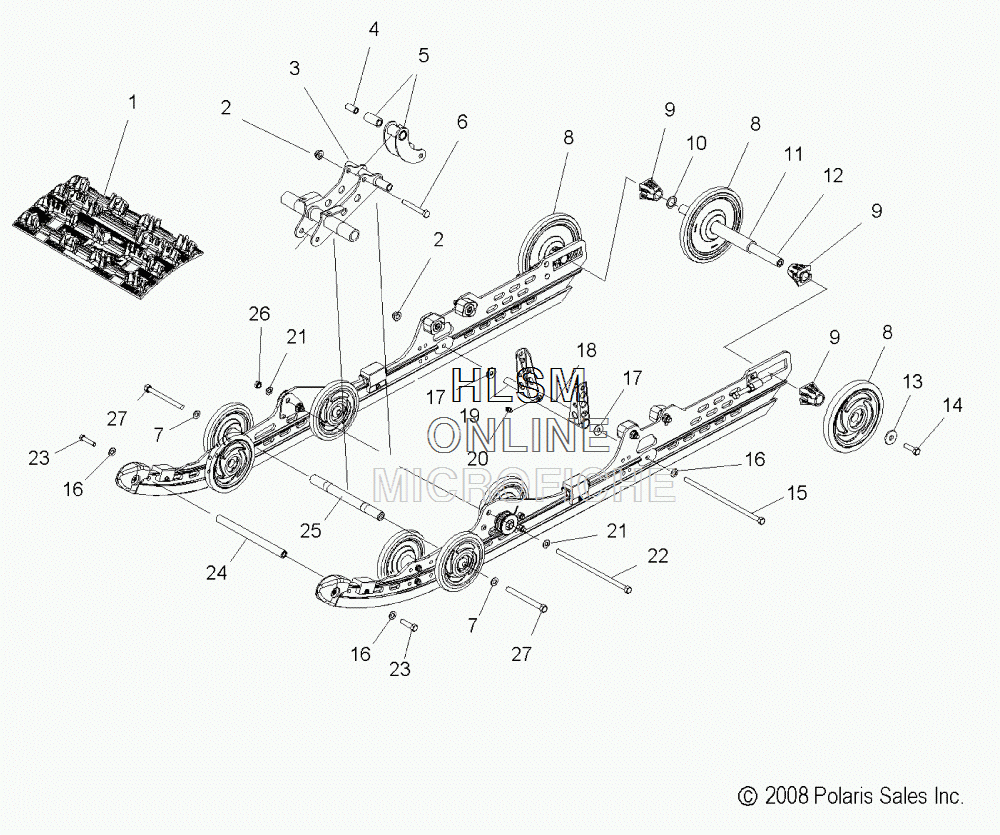

SUSPENSION - REAR для Polaris 800 SWITCHBACK (S09PR8ESL) - 2009 года выпуска
-
№АртикулНазвание
-
12875639 KIT, TRACK, 136 INCH, 1.25, RIP SAWKIT, TRACK, 136 INCH, 1.25, RIP SAW
-
27547263 NUT, NYLOKNUT, NYLOK
-
31542465-329 H-BRACKET (BLACK)H-BRACKET (BLACK)
-
45333906 SLEEVESLEEVE
-
51542059-067 PIVOT, SHOCK (BLACK)PIVOT, SHOCK (BLACK)
-
55134600 BUSHINGBUSHING
-
67515417 SCREWSCREW
-
77556130 WASHER, BELLEWASHER, BELLE
-
81590388-070 ASM., WHEEL (BLACK)ASM., WHEEL (BLACK)
-
87710444 RING, RETAINING (1 PER WHEEL)RING, RETAINING (1 PER WHEEL)
-
83514384 BEARING (1 PER WHEEL)BEARING (1 PER WHEEL)
-
95432535 SPACER, IDLERSPACER, IDLER
-
107555918 BUSHINGBUSHING
-
115333285 SPACER, IDLER, LONGSPACER, IDLER, LONG
-
125020744 SHAFT, IDLERSHAFT, IDLER
-
137556130 WASHER, BELLEWASHER, BELLE
-
147517731 BOLTBOLT
-
157517921 SCREWSCREW
-
167556188 WASHER, FLATWASHER, FLAT
-
177555893 WASHER, FLATWASHER, FLAT
-
181541928-067 ARM, REAR PIVOT (BLACK)ARM, REAR PIVOT (BLACK)
-
195334162 TUBETUBE
-
207080424 FITTING, LUBRICATIONFITTING, LUBRICATION
-
217556156 WASHERWASHER
-
227518339 SCREWSCREW
-
237518005 SCREWSCREW
-
245134078 SHAFTSHAFT
-
255136230 SHAFTSHAFT
-
267542522 NUT, FLANGE LOCKNUT, FLANGE LOCK
-
277518919 SCREWSCREW
