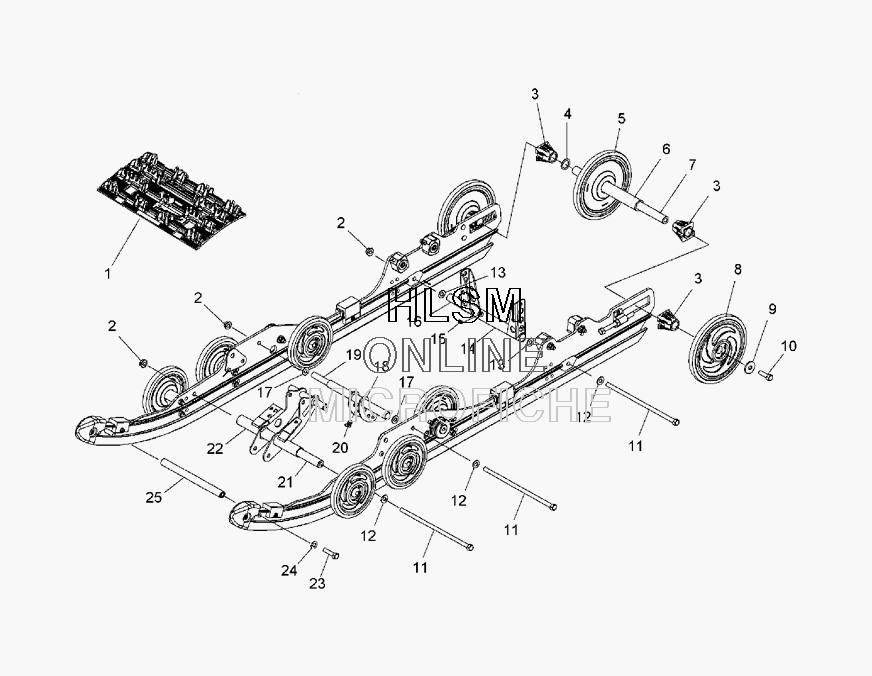

SUSPENSION - REAR для Polaris FS IQ TOURING (S09PT7ES) - 2009 года выпуска
-
№АртикулНазвание
-
15411955 TRACK, 136'' X 1.25''TRACK, 136'' X 1.25''
-
15222840 CLIP-GUIDE, CAMOPLAST TRACKCLIP-GUIDE, CAMOPLAST TRACK
-
27547263 NUT-3/8-24 NYLOKNUT-3/8-24 NYLOK
-
35432535 SPACER, IDLERSPACER, IDLER
-
47555918 BUSHINGBUSHING
-
51590388-070 ASM-WHEEL, SCRLD, 7.25, 6004, BLACKASM-WHEEL, SCRLD, 7.25, 6004, BLACK
-
53514384 BEARING-.7874X1.6535X.4724, NTNBEARING-.7874X1.6535X.4724, NTN
-
57710444 RING, RETAININGRING, RETAINING
-
65333285 SPACER, IDLER, LONGSPACER, IDLER, LONG
-
75020744 SHAFT, IDLERSHAFT, IDLER
-
81590388-244 ASM-WHEEL, SCRL, 7.25, 6004, BRSLVASM-WHEEL, SCRL, 7.25, 6004, BRSLV
-
83514384 BEARING-.7874X1.6535X.4724, NTNBEARING-.7874X1.6535X.4724, NTN
-
87710444 RING, RETAININGRING, RETAINING
-
97556130 WASHER-.406X1.25X.125WASHER-.406X1.25X.125
-
107517731 BOLT, 3/8-16X1.25BOLT, 3/8-16X1.25
-
117517921 SCR-3/8-24X9.875, HX/LP, GR8-YSCR-3/8-24X9.875, HX/LP, GR8-Y
-
127555906 WASHER, THRUSTWASHER, THRUST
-
137555893 WASHER, FLATWASHER, FLAT
-
141541928-067 REAR PIVOT ARM, 4.00, BLACKREAR PIVOT ARM, 4.00, BLACK
-
157080424 FITTING, LUBRICATIONFITTING, LUBRICATION
-
165333404 SHAFTSHAFT
-
177556242 WASHER-.385X.88X.075, FL-Y THRWASHER-.385X.88X.075, FL-Y THR
-
181542122-067 SHOCK PIVOT ARM, 2.375, BLACKSHOCK PIVOT ARM, 2.375, BLACK
-
195334162 TUBE-.397X.562X8.515, NITRIDETUBE-.397X.562X8.515, NITRIDE
-
207080510 FITTING, ZERK, 90 DEGREEFITTING, ZERK, 90 DEGREE
-
215134517 SHAFT-.795X8.665, 6066SHAFT-.795X8.665, 6066
-
221542465-329 WELD-H-BRACKET, BLACKWELD-H-BRACKET, BLACK
-
237518005 SCR-3/8-16X1.50-HX/CP-GR5-P80YSCR-3/8-16X1.50-HX/CP-GR5-P80Y
-
247556188 WASHER-FLEFT HAND390X.750X.065-YWASHER-FLEFT HAND390X.750X.065-Y
-
255134078 SHAFT-C'BORE, .688X8.665, 2045SHAFT-C'BORE, .688X8.665, 2045
