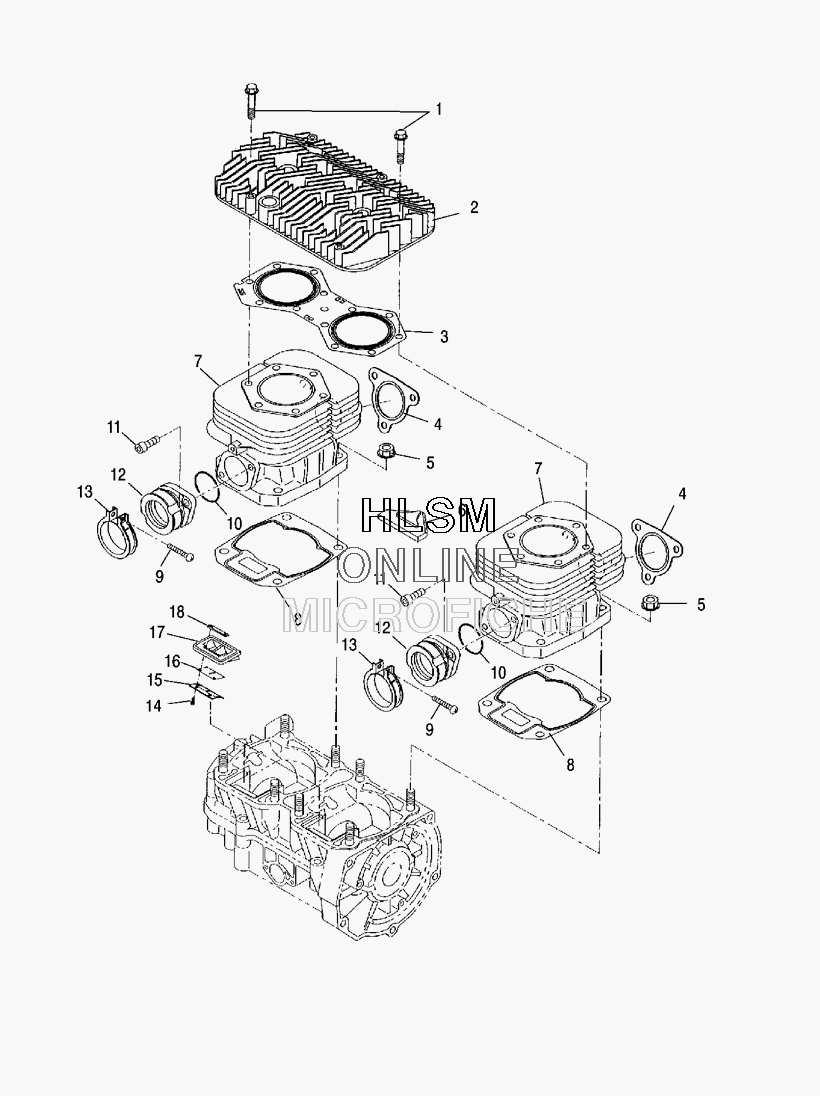

CYLINDER ASSEMBLY для Polaris TRAIL RMK ES (S09NJ5BSL) - 2009 года выпуска
-
№АртикулНазвание
-
13084271 BOLT, FLANGEBOLT, FLANGE
-
23088215 HEAD-CYLINDERHEAD-CYLINDER
-
33085704 GASKET,HEADGASKET,HEAD
-
43085714 GASKET,EXHAUSTGASKET,EXHAUST
-
53082911 NUT-FLANGENUT-FLANGE
-
63085692 COVER,CYL.BAFFLECOVER,CYL.BAFFLE
-
73089934 CYLINDER-COMPLCYLINDER-COMPL
-
83085666 GASKET,CYLINDERGASKET,CYLINDER
-
93081497 SCREW,PAN HEADSCREW,PAN HEAD
-
103085619 O-RINGO-RING
-
113081330 BOLT, SOCKET HEADBOLT, SOCKET HEAD
-
123085670 ASM.,ADAPTER (INC 10)ASM.,ADAPTER (INC 10)
-
133083166 ASM-ADAPTER BAND (INC 9)ASM-ADAPTER BAND (INC 9)
-
143085717 SCREW AND WASHER ASM.SCREW AND WASHER ASM.
-
153086387 STOPPERSTOPPER
-
163085715 VALVE, REEDVALVE, REED
-
173086386 ASM-VALVE,REED (INC 14-18)ASM-VALVE,REED (INC 14-18)
-
183085718 PLATEPLATE
