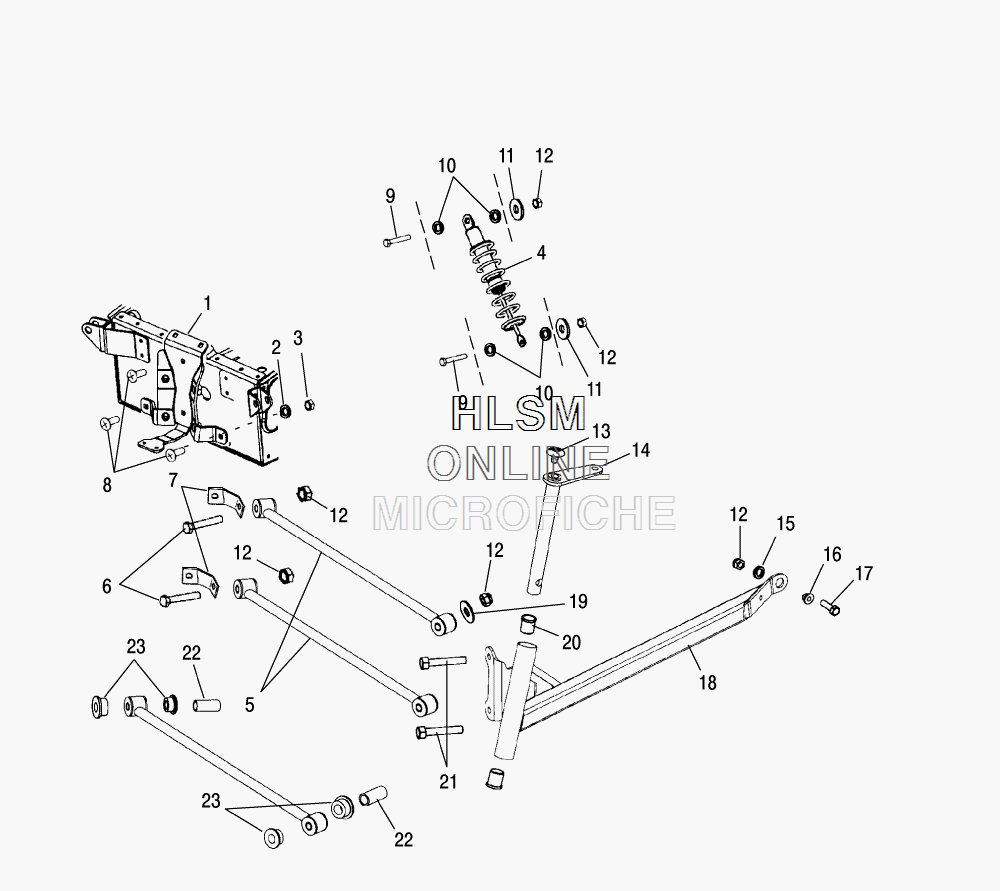

SUSPENSION- FRONT для Polaris 120 DRAGON INTERNATIONAL (2010) [S10WB1AEA] - 2010 года выпуска
-
№АртикулНазвание
-
15243858-067 BRACKET, RADIUS ROD/STEERING MOUNTBRACKET, RADIUS ROD/STEERING MOUNT
-
27558301 WASHER, FLATWASHER, FLAT
-
37542122 NUT, NYLOKNUT, NYLOK
-
41822774 ASM., SHOCK, IFS, WHITEASM., SHOCK, IFS, WHITE
-
51820780-067 ROD, RADIUS (BLACK)ROD, RADIUS (BLACK)
-
67517778 BOLTBOLT
-
75244330-067 BRACKET, SUPPORT, RADIUS RODBRACKET, SUPPORT, RADIUS ROD
-
87512193 BOLT, CARRIAGEBOLT, CARRIAGE
-
97517745 BOLT, SHOULDERBOLT, SHOULDER
-
105433624 BUSHING, SHOCK MOUNTBUSHING, SHOCK MOUNT
-
117556160 WASHERWASHER
-
127542324 NUT, NYLOKNUT, NYLOK
-
135433481-070 CAP, SPINDLECAP, SPINDLE
-
141820764 SPINDLESPINDLE
-
155410675 O-RINGO-RING
-
165132329 BUSHINGBUSHING
-
177512310 BOLTBOLT
-
181823243-067 ARM, TRAILING, LEFT HAND (BLACK)ARM, TRAILING, LEFT HAND (BLACK)
-
181823244-067 ARM, TRAILING, RIGHT HAND (BLACK)ARM, TRAILING, RIGHT HAND (BLACK)
-
197555734 WASHER, FLATWASHER, FLAT
-
203514343 BUSHING, SPINDLEBUSHING, SPINDLE
-
217512329 BOLTBOLT
-
225333834 SPACERSPACER
-
235433547 BUSHING, RADIUS RODBUSHING, RADIUS ROD
