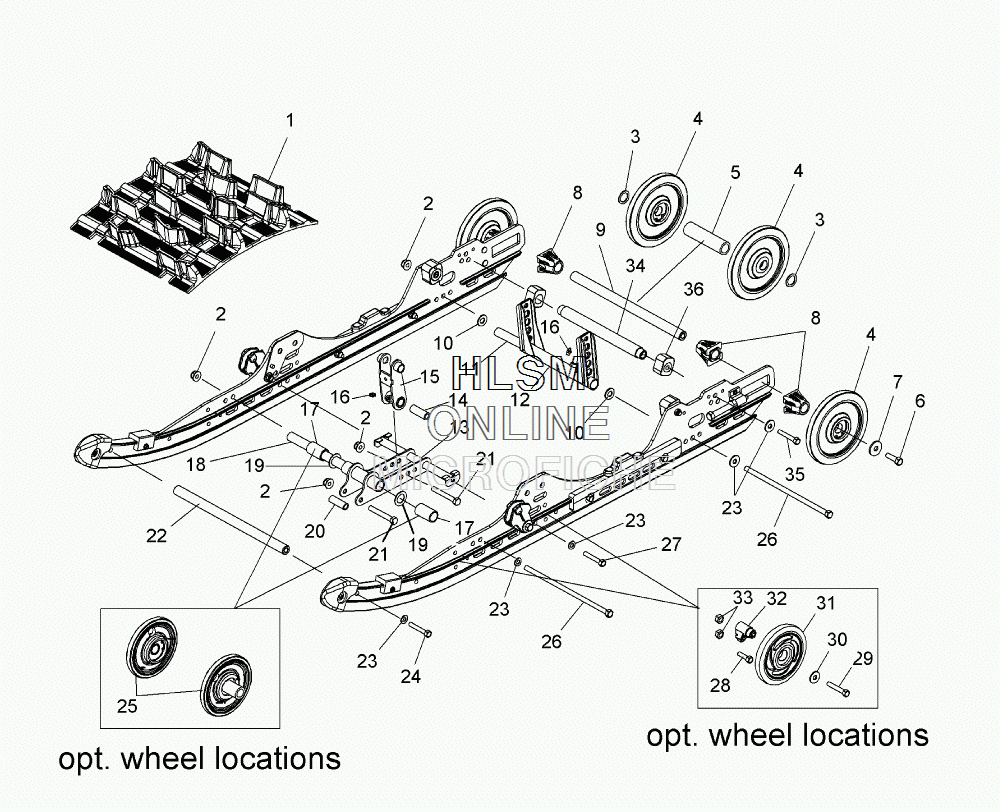

SUSPENSION- REAR для Polaris 600 IQ RACER (2010) [S10MX6JSA] - 2010 года выпуска
-
№АртикулНазвание
-
15413403 TRACKTRACK
-
15250304 CLIP, GUIDECLIP, GUIDE
-
15250313 CLIP, FLATCLIP, FLAT
-
27547263 NUT, NYLOKNUT, NYLOK
-
37555918 BUSHINGBUSHING
-
41590426 ASM., WHEELASM., WHEEL
-
55333283 SPACER, IDLER, CENTERSPACER, IDLER, CENTER
-
67517731 BOLTBOLT
-
77556130 WASHERWASHER
-
85432535 SPACER, IDLERSPACER, IDLER
-
95132066 SHAFT, IDLERSHAFT, IDLER
-
107555893 WASHER, FLATWASHER, FLAT
-
115334026 SHAFTSHAFT
-
121541713-067 ARM, PIVOT, REAR, (BLACK)ARM, PIVOT, REAR, (BLACK)
-
131541711-067 MOUNT, SHOCK, (BLACK)MOUNT, SHOCK, (BLACK)
-
145133233 BUSHINGBUSHING
-
151542055-067 ARM, SHOCK PIVOT, (BLACK)ARM, SHOCK PIVOT, (BLACK)
-
167080424 FITTING, LUBRICATIONFITTING, LUBRICATION
-
175135352 SPACER, BOGIE WHEELSPACER, BOGIE WHEEL
-
185133232 SHAFTSHAFT
-
197556301 BUSHINGBUSHING
-
205333906 SLEEVESLEEVE
-
217515417 SCREWSCREW
-
225134078 SHAFTSHAFT
-
237556188 WASHER, FLATWASHER, FLAT
-
247518005 SCREWSCREW
-
251541642 ASM., WHEEL W/HOLEASM., WHEEL W/HOLE
-
267517921 SCREWSCREW
-
277517247 SCREWSCREW
-
287515317 BOLTBOLT
-
297515346 SCREWSCREW
-
307556179 WASHER, SPRINGWASHER, SPRING
-
311590317 ASM., WHEEL BOGIEASM., WHEEL BOGIE
-
313514303 BEARINGBEARING
-
317718407 RING, RETAININGRING, RETAINING
-
325631065 BLOCK, WHEEL MOUNTBLOCK, WHEEL MOUNT
-
337542324 NUT, NYLOKNUT, NYLOK
-
345134796 SHAFT, COUPLER BLOCKSHAFT, COUPLER BLOCK
-
357515551 SCREWSCREW
-
365413272 BUMPER, PIVOT ARMBUMPER, PIVOT ARM
