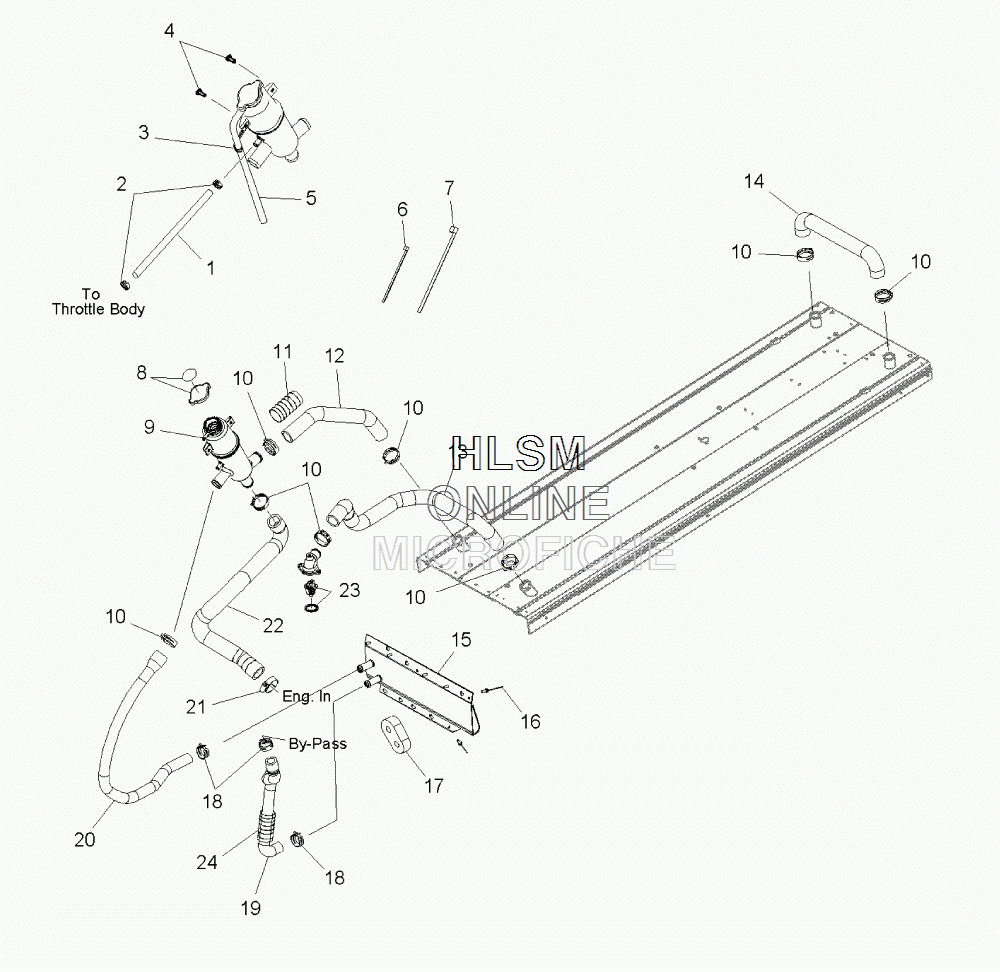

COOLING SYSTEM для Polaris 600 IQ SHIFT (2010) [S10PB6HSA] - 2010 года выпуска
-
№АртикулНазвание
-
18450123-153 LINE, FUELLINE, FUEL
-
27080534 CLAMP, HOSECLAMP, HOSE
-
37080884 J-CLIPJ-CLIP
-
47515148 SCREWSCREW
-
58450003-1525 LINE, FUELLINE, FUEL
-
67080138 CABLE TIECABLE TIE
-
77080761 CABLE TIE, 14 INCHCABLE TIE, 14 INCH
-
87170063 DECAL, WATER BOTTLE CAPDECAL, WATER BOTTLE CAP
-
81240169 CAP, PRESSURECAP, PRESSURE
-
92520479 BOTTLE, COOLANTBOTTLE, COOLANT
-
107080844 CLAMP, SPRINGBANDCLAMP, SPRINGBAND
-
115521510 TUBING, CONVOLUTEDTUBING, CONVOLUTED
-
125413045 HOSE, TUNNEL COOLER/BOTTLEHOSE, TUNNEL COOLER/BOTTLE
-
135413053 HOSE, ENGINE OUT/TUNNEL COOLHOSE, ENGINE OUT/TUNNEL COOL
-
145413240 HOSE, CROSSOVER, TUNNELHOSE, CROSSOVER, TUNNEL
-
151240263 COOLER, BULKHEADCOOLER, BULKHEAD
-
167661637 RIVETRIVET
-
175813082 SEAL, FRONT CLOSEOFF COOLERSEAL, FRONT CLOSEOFF COOLER
-
187080841 CLAMP, SPRINGBANDCLAMP, SPRINGBAND
-
195413199 HOSE, BYPASS/CENTER COOLERHOSE, BYPASS/CENTER COOLER
-
205413046 HOSE, CENTER COOLER/BOTTLEHOSE, CENTER COOLER/BOTTLE
-
217080560 CLAMP, HOSECLAMP, HOSE
-
225413006 HOSE, BOTTLE/INLETHOSE, BOTTLE/INLET
-
237052433 THERMOSTAT, 120 DEGREETHERMOSTAT, 120 DEGREE
-
235411521 O-RING, LIPSEALO-RING, LIPSEAL
-
245411396 TUBING, CONVOLUTEDTUBING, CONVOLUTED
