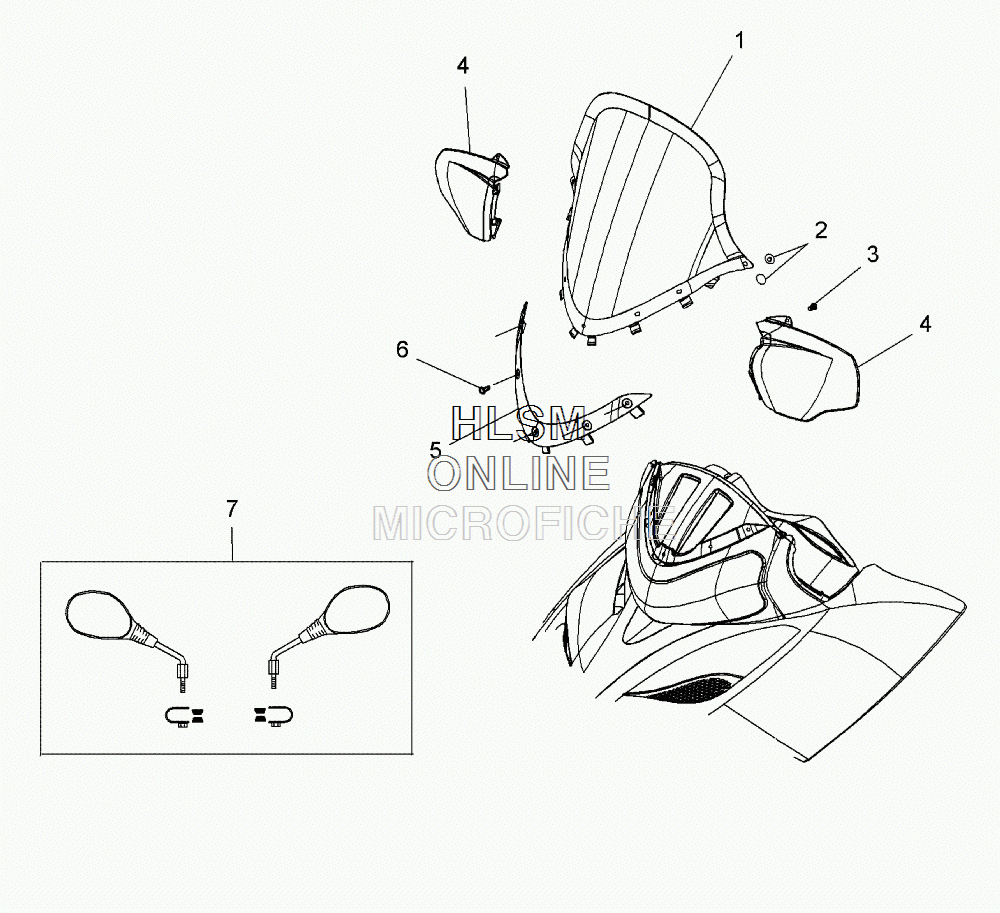

BODY- WINDSHIELD AND MIRRORS для Polaris 600 IQ TOURING - BLUE (2010) [S10PT6HSL] - 2010 года выпуска
-
№АртикулНазвание
-
15436242 WINDSHIELD, TALL, SMOKEWINDSHIELD, TALL, SMOKE
-
27661865 RIVET, SNAP, FEMALERIVET, SNAP, FEMALE
-
27661866 RIVET, SNAP, MALERIVET, SNAP, MALE
-
37670090 CLIP, PLASTIC DARTCLIP, PLASTIC DART
-
45436073 SHIELD, SIDE, SMOKE, LEFT HANDSHIELD, SIDE, SMOKE, LEFT HAND
-
45436074 SHIELD, SIDE, SMOKE, RIGHT HANDSHIELD, SIDE, SMOKE, RIGHT HAND
-
55435520 RETAINER, WINDSHIELDRETAINER, WINDSHIELD
-
67621509 RIVETRIVET
-
72876297 KIT, MIRRORS (INCL. BRACKETS, SPACERS, MIRRORS)KIT, MIRRORS (INCL. BRACKETS, SPACERS, MIRRORS)
-
71016751 BRACKET, HANDLEBAR MIRROR CLAMPBRACKET, HANDLEBAR MIRROR CLAMP
-
75136011 SPACER, HANDLEBAR MIRROR CLAMPSPACER, HANDLEBAR MIRROR CLAMP
-
72633522 ASM., MIRROR, HANDLEBAR MOUNT, LEFT HANDASM., MIRROR, HANDLEBAR MOUNT, LEFT HAND
-
72633523 ASM., MIRROR, HANDLEBAR MOUNT, RIGHT HANDASM., MIRROR, HANDLEBAR MOUNT, RIGHT HAND
