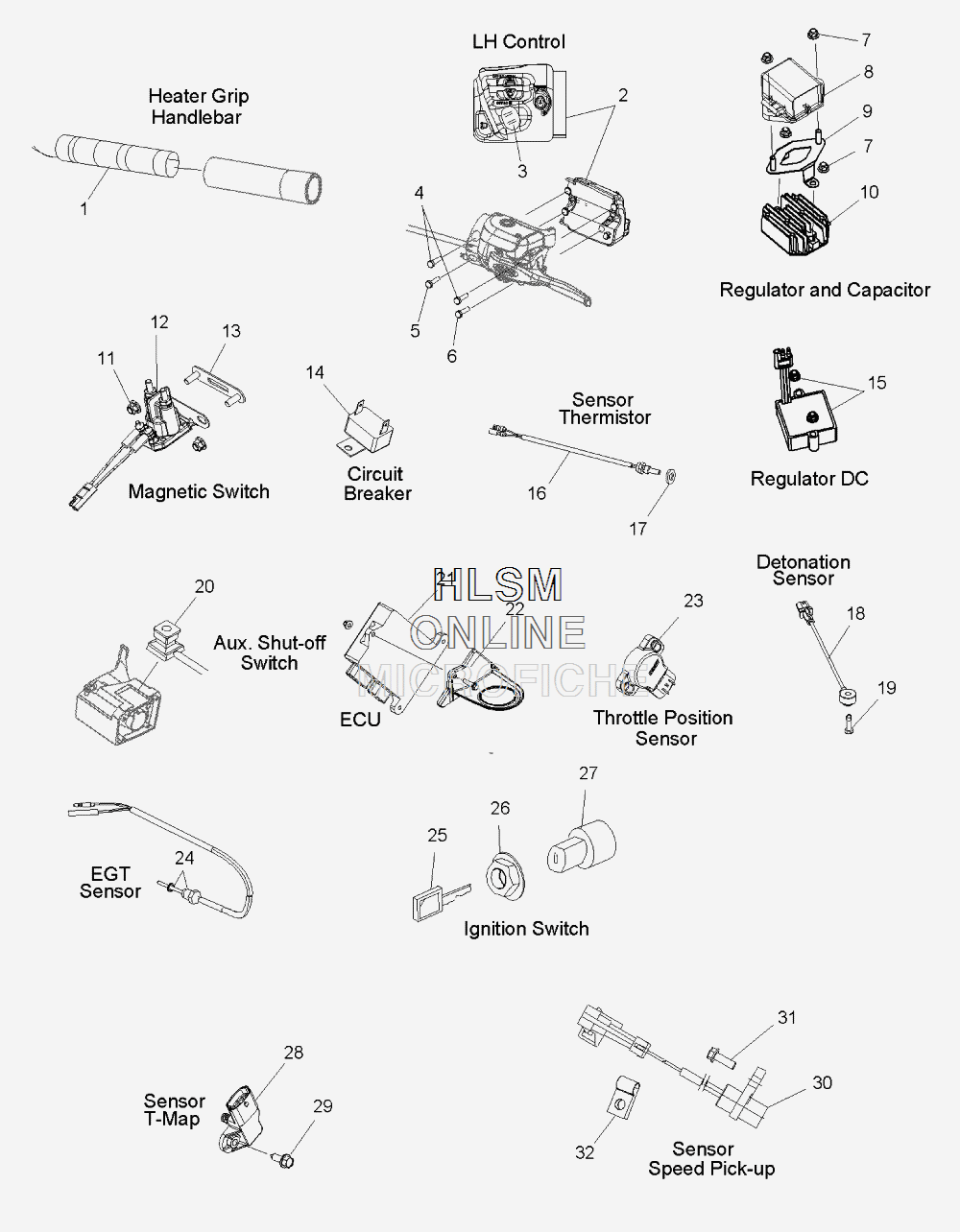

SWITCHES- SENSORS AND COMPONENTS для Polaris 600 PRO-RIDE RUSH (2010) [S10BF6KSA] - 2010 года выпуска
-
№АртикулНазвание
-
12410777 GRIP, HEATER, LO/MED/HI, SHORTGRIP, HEATER, LO/MED/HI, SHORT
-
22010290 ASM., LEFT HAND CONTROLASM., LEFT HAND CONTROL
-
35433291 BUTTON, SWITCH, HI/LO, LEFT HAND CONTROLBUTTON, SWITCH, HI/LO, LEFT HAND CONTROL
-
47517441 SCREW, .75SCREW, .75
-
57512078 SCREW, 1.12SCREW, 1.12
-
67517566 SCREW. 1.5SCREW. 1.5
-
77547339 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
84011114 CAPACITORCAPACITOR
-
91017112 ASM., MOUNT, CAPACITOR W/CLINCH NUTASM., MOUNT, CAPACITOR W/CLINCH NUT
-
104012263 REGULATOR, 20 AMP, 3 PHASE, DCREGULATOR, 20 AMP, 3 PHASE, DC
-
117512232 SCREWSCREW
-
124012358 SWITCH, MAGNETICSWITCH, MAGNETIC
-
131017255 ASM., STUD PLATEASM., STUD PLATE
-
142434009 BREAKER, CIRCUIT, 12 AMPBREAKER, CIRCUIT, 12 AMP
-
154010794 REGULATOR, AC/DC, 14.3VREGULATOR, AC/DC, 14.3V
-
164012115 SENSOR, WATER TEMPSENSOR, WATER TEMP
-
177556357 WASHER, COPPERWASHER, COPPER
-
182410369 SENSOR, DETONATIONSENSOR, DETONATION
-
197517262 SCREWSCREW
-
204012268 SWITCH, AUXILLARY SHUT-OFFSWITCH, AUXILLARY SHUT-OFF
-
214012371 ECUECU
-
225438088 MOUNT, ECUMOUNT, ECU
-
233131591 SENSOR, THROTTLE POSITIONSENSOR, THROTTLE POSITION
-
242410983 ASM., EGT SENSOR W/WASHERASM., EGT SENSOR W/WASHER
-
245335351 WASHER, EGT SENSORWASHER, EGT SENSOR
-
255410611 CAP W/KEYCAP W/KEY
-
267547035 NUT, IGNITIONNUT, IGNITION
-
272200358 KIT, IGNITION SWITCHKIT, IGNITION SWITCH
-
282410422 SENSOR, T-MAPSENSOR, T-MAP
-
297512095 SCREWSCREW
-
302410376 SENSOR, SPEED PICK-UPSENSOR, SPEED PICK-UP
-
317518280 SCREWSCREW
-
327080367 CLAMP, CABLECLAMP, CABLE
