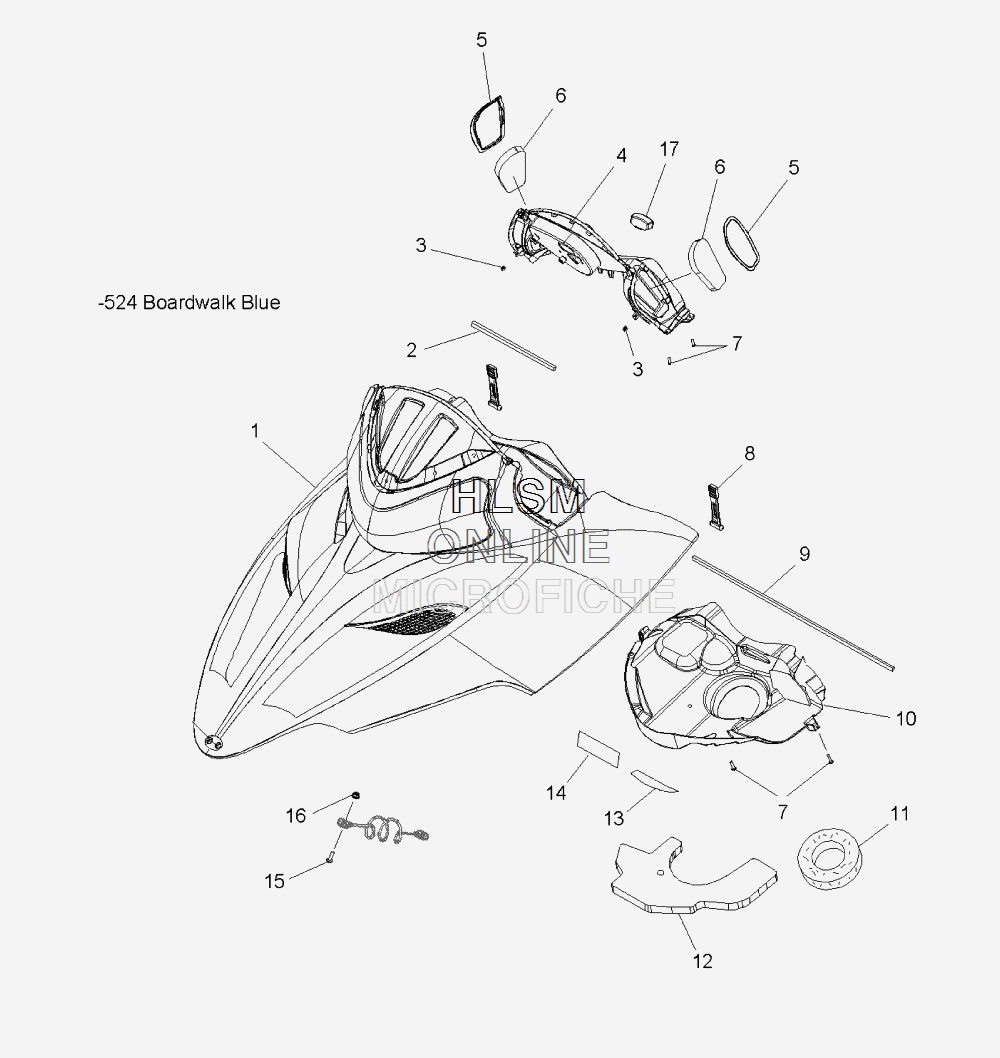

BODY- HOOD ASM. для Polaris 600 RMK 155 (2010) [S10PK6HSL] - 2010 года выпуска
-
№АртикулНазвание
-
12633730-524 ASM., HOOD (BOARDWALK BLUE) SVC (INCL. FOAM/FOIL)ASM., HOOD (BOARDWALK BLUE) SVC (INCL. FOAM/FOIL)
-
25521697-350 SEAL, BULB, 350 CMSEAL, BULB, 350 CM
-
37670112 NUT, U-TYPENUT, U-TYPE
-
45437049-070 POD, INSTRUMENT (BLACK)POD, INSTRUMENT (BLACK)
-
55437372 VENT, INTAKE, RIGHT HANDVENT, INTAKE, RIGHT HAND
-
55437371 VENT, INTAKE, LEFT HANDVENT, INTAKE, LEFT HAND
-
65813248 FOAM, FILTER, INLETFOAM, FILTER, INLET
-
77518577 SCREWSCREW
-
85433150 STRAPSTRAP
-
95812782 SEAL-FOAM, 35 IN.SEAL-FOAM, 35 IN.
-
102634005 ASM., HEADLIGHT ACCESS COVER W/HOLE (INCL. 9,11-14)ASM., HEADLIGHT ACCESS COVER W/HOLE (INCL. 9,11-14)
-
115813186 FOAM, CHIMNEYFOAM, CHIMNEY
-
125813542 FOAM, HEADLIGHT ACCESS COVER W/HOLEFOAM, HEADLIGHT ACCESS COVER W/HOLE
-
135812938 FOIL, HEADLIGHT ACCESS COVER, #2FOIL, HEADLIGHT ACCESS COVER, #2
-
145812937 FOIL, HEADLIGHT ACCESS COVER, #1FOIL, HEADLIGHT ACCESS COVER, #1
-
157518281 SCREWSCREW
-
167518287 NUTNUT
-
175438301 COVER, HEADLIGHT ADJUSTERCOVER, HEADLIGHT ADJUSTER
