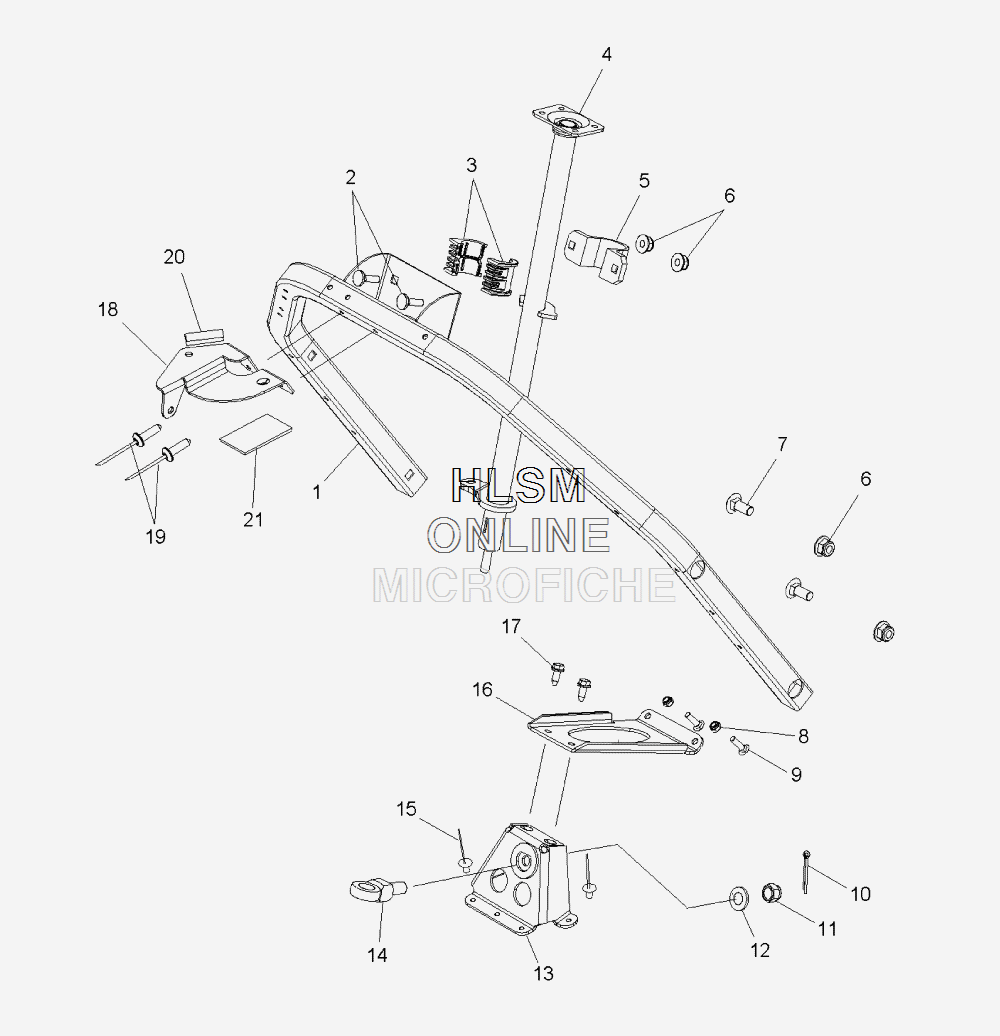

STEERING- STEERING POST ASM. AND STEERING HOOP для Polaris 600 WIDETRAK IQ (2010) [S10PU6KSL] - 2010 года выпуска
-
№АртикулНазвание
-
11017136-329 HOOP, STEERING (BLACK)HOOP, STEERING (BLACK)
-
27512331 BOLT, CARRIAGEBOLT, CARRIAGE
-
35432785 BUSHING, STEERING POSTBUSHING, STEERING POST
-
41823363-329 POST, STEERING (BLACK)POST, STEERING (BLACK)
-
55133648 BRACKET, STEERING POSTBRACKET, STEERING POST
-
67542343 NUT, FLANGENUT, FLANGE
-
77512377 BOLT, CARRIAGEBOLT, CARRIAGE
-
87542153 NUT, NYLOKNUT, NYLOK
-
97515203 BOLT, CARRIAGEBOLT, CARRIAGE
-
107661203 PIN, COTTERPIN, COTTER
-
117547066 NUT, NYLONNUT, NYLON
-
127555883 WASHERWASHER
-
131016487-329 WELD-LOWER STEERING MOUNT (BLACK)WELD-LOWER STEERING MOUNT (BLACK)
-
147061144 JOINT, BALL, STEERINGJOINT, BALL, STEERING
-
157661637 RIVETRIVET
-
165253257-329 MOUNT, LOWER STEERING POST, REINFORCEMENT (BLACK)MOUNT, LOWER STEERING POST, REINFORCEMENT (BLACK)
-
177517386 SCREWSCREW
-
185251973-329 BRACKET, OIL BOTTLE, UPPER (BLACK)BRACKET, OIL BOTTLE, UPPER (BLACK)
-
197661637 RIVETRIVET
-
205521131 TRIM,EDGE,6FT (BLACK)TRIM,EDGE,6FT (BLACK)
-
215810502 PAD, AIR BOXPAD, AIR BOX
