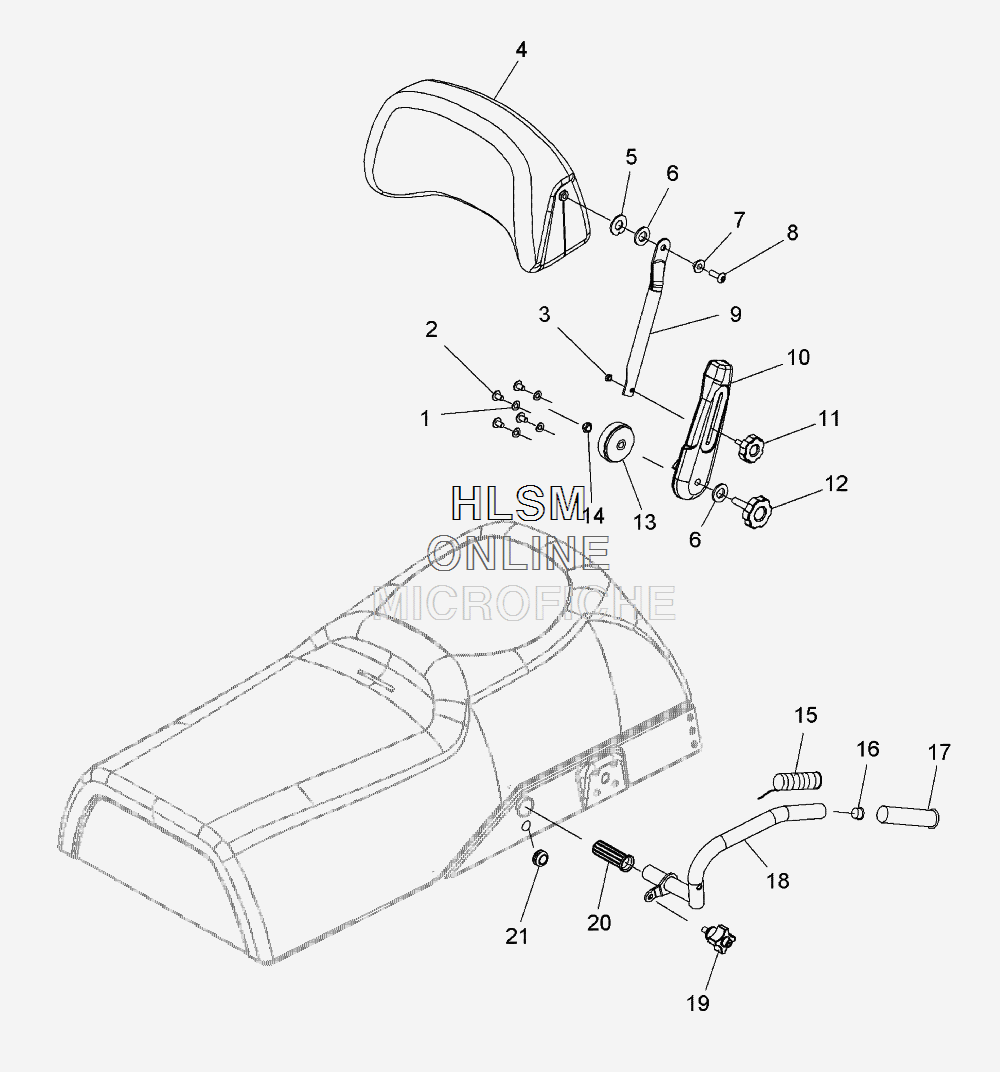

BODY- BACKREST AND GRABHANDLES для Polaris 600 WIDETRAK IQ INTERNATIONAL (2010) [S10PU6KEL] - 2010 года выпуска
-
№АртикулНазвание
-
17552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
27518798 SCREWSCREW
-
37542324 NUT, NYLOKNUT, NYLOK
-
42684071 ASM., BACKRESTASM., BACKREST
-
42684070 ASM., COVER, SEAT BACKASM., COVER, SEAT BACK
-
55250122 PLATE, BACKER W/NOTCHPLATE, BACKER W/NOTCH
-
65810291 SPACER, RUBBERSPACER, RUBBER
-
75136584 SPACER, BACKREST PIVOTSPACER, BACKREST PIVOT
-
87510004 SCREWSCREW
-
95250118-067 ARM, ADJUSTER, BACKREST (BLACK)ARM, ADJUSTER, BACKREST (BLACK)
-
105436635 MOUNT, ADJUSTER, ARMMOUNT, ADJUSTER, ARM
-
117081484 KNOB, LARGE, LOW SHOULDERKNOB, LARGE, LOW SHOULDER
-
127081344 KNOB, LARGEKNOB, LARGE
-
135135462 CYLINDER, RATCHETCYLINDER, RATCHET
-
147547376 NUT, JAMNUT, JAM
-
152410778 HEATER, GRIP, LOW/MED/HIGHHEATER, GRIP, LOW/MED/HIGH
-
165431096 PLUG, OVERFLOWPLUG, OVERFLOW
-
175435484-070 GRIP, HANDLEBAR, LONG (BLACK)GRIP, HANDLEBAR, LONG (BLACK)
-
181016586-067 GRABHANDLE, LEFT HAND (BLACK)GRABHANDLE, LEFT HAND (BLACK)
-
181016587-067 GRABHANDLE, RIGHT HAND (BLACK)GRABHANDLE, RIGHT HAND (BLACK)
-
191016690 ASM., KNOB, GRABHANDLEASM., KNOB, GRABHANDLE
-
205435997 BUSHING, GRABHANDLEBUSHING, GRABHANDLE
-
215412276 GROMMETGROMMET
