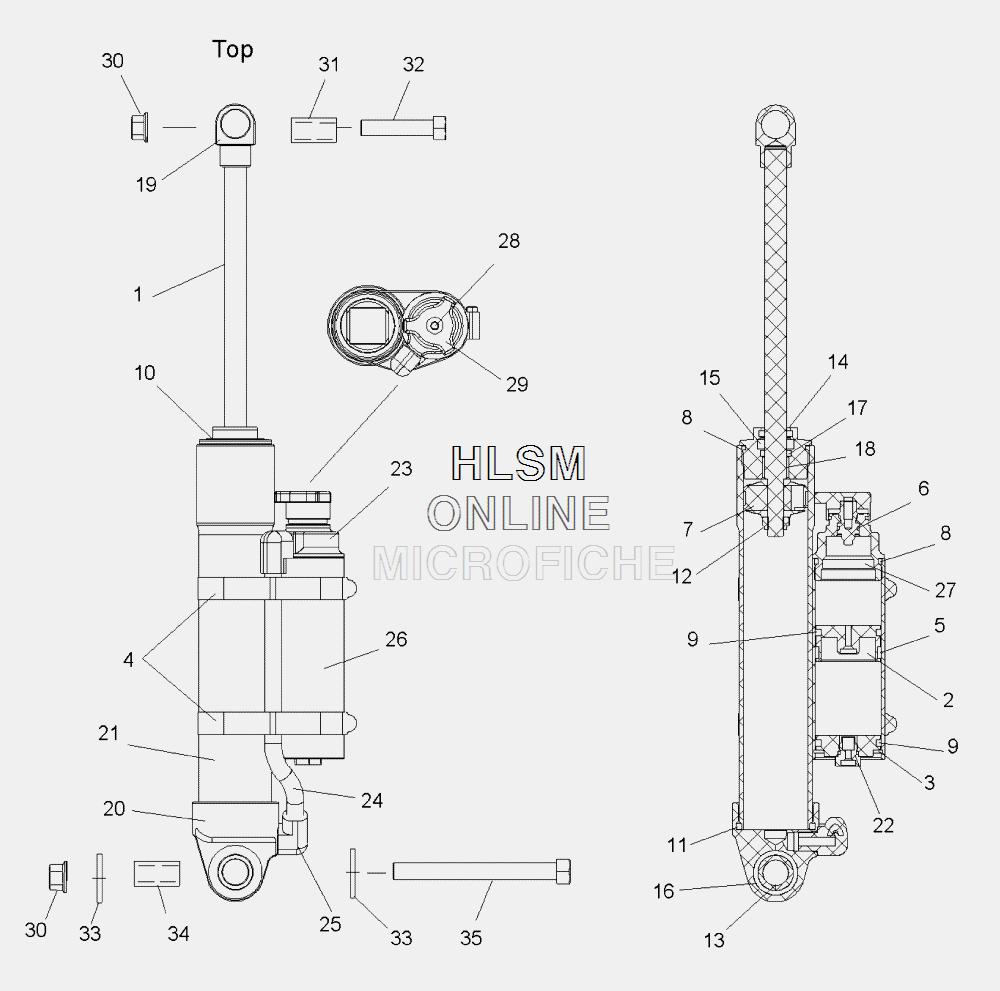

SUSPENSION- SHOCK- REAR TRACK [7043600] для Polaris 800 ASSAULT RMK INTERNATIONAL (2010) [S10PL8EEA] - 2010 года выпуска
-
№АртикулНазвание
-
87043600 SHOCK, REAR TRACKSHOCK, REAR TRACK
-
11800296 SHAFTSHAFT
-
21800281 PISTON, RESERVOIR W/BLEED SCREWPISTON, RESERVOIR W/BLEED SCREW
-
21800210 O-RING, BLEED SCREWO-RING, BLEED SCREW
-
21800211 SCREW, BLEEDSCREW, BLEED
-
31800019 RING, SNAP, RESERVOIRRING, SNAP, RESERVOIR
-
41800022 CLAMP, HOSECLAMP, HOSE
-
51800026 BAND, WEARBAND, WEAR
-
61800094 O-RINGO-RING
-
71800312 PISTON W/BANDPISTON W/BAND
-
81800027 O-RINGO-RING
-
91800028 O-RING, RESERVOIRO-RING, RESERVOIR
-
101800293 SEAL, HEADSEAL, HEAD
-
111800030 O-RINGO-RING
-
121800031 NUT, CRIMPNUT, CRIMP
-
131800032 SLEEVESLEEVE
-
141800295 SEAL, WIPERSEAL, WIPER
-
151800294 SEAL, U-CUPSEAL, U-CUP
-
161800036 BUSHING, URETHANEBUSHING, URETHANE
-
171800095 O-RINGO-RING
-
181800292 BUSHING, SHAFTBUSHING, SHAFT
-
191800096 SHAFT, EYELETSHAFT, EYELET
-
201800343 LOOP, BODYLOOP, BODY
-
211800344 BODYBODY
-
221800106 CAP, ENDCAP, END
-
221800107 VALVE, NEEDLEVALVE, NEEDLE
-
221800108 O-RINGO-RING
-
221800109 SCREW, BUTTON HEADSCREW, BUTTON HEAD
-
231800220 HOUSING, ADJUSTORHOUSING, ADJUSTOR
-
241800212 HOSEHOSE
-
251800113 ELBOW-1/8" NPT 90°ELBOW-1/8" NPT 90°
-
261800213 BODY, RESERVOIRBODY, RESERVOIR
-
271800217 PISTONPISTON
-
271800219 SCREW W/THRU HOLESCREW W/THRU HOLE
-
281800203 SCREWSCREW
-
291800284 KNOBKNOB
-
291800127 BALL, D-TENTBALL, D-TENT
-
291800128 SPRING, D-TENTSPRING, D-TENT
-
307547263 NUT, FLANGE, LOCKNUT, FLANGE, LOCK
-
315010422 BUSHINGBUSHING
-
327512410 SCREWSCREW
-
337555795 WASHER, WAVEWASHER, WAVE
-
345333905 SLEEVESLEEVE
-
357518263 SCREWSCREW
