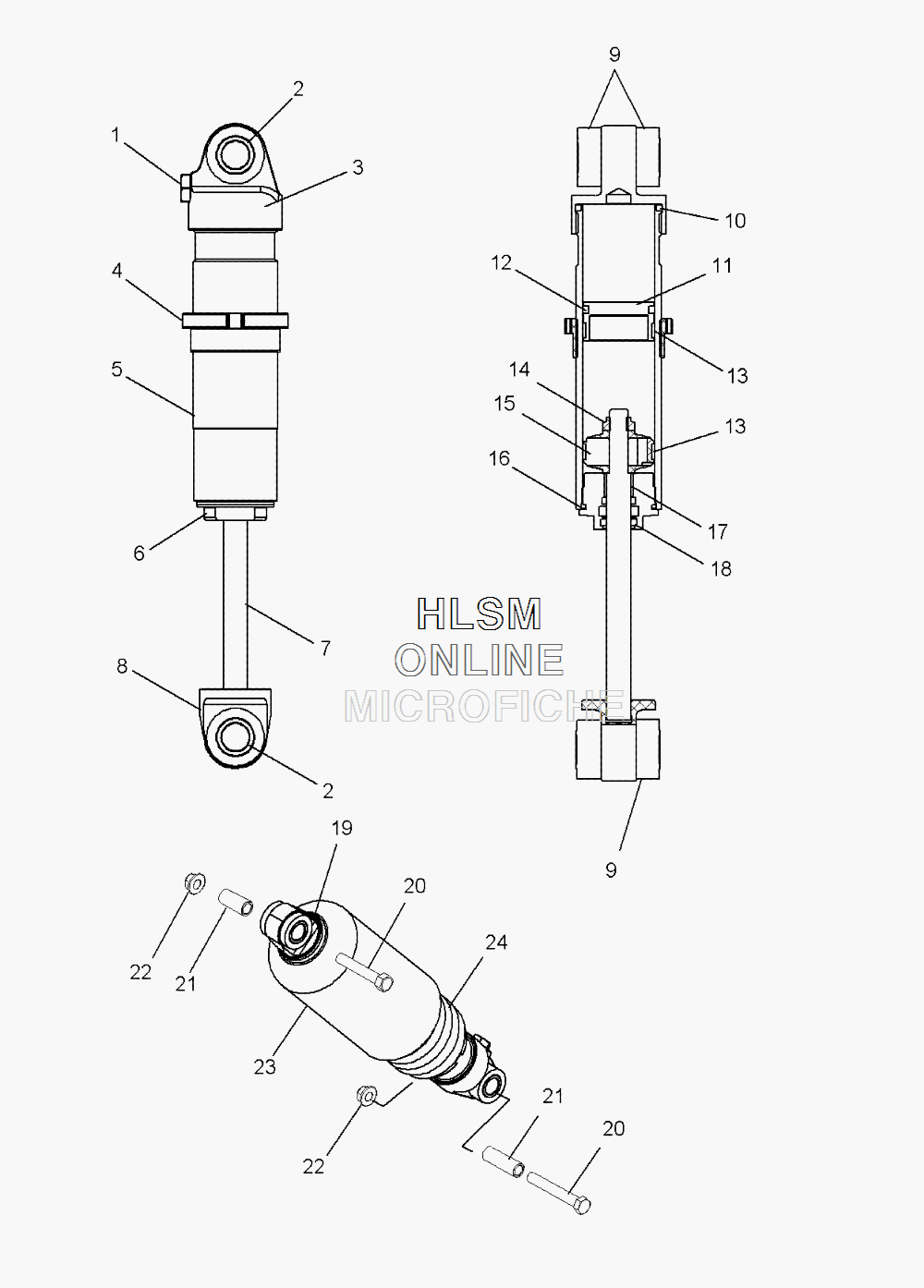

SUSPENSION- SHOCK- FRONT TRACK (7043535) для Polaris 800 DRAGON IQ/ES/INTL (2010) [S10PP8] - 2010 года выпуска
-
№АртикулНазвание
-
17043535 SHOCK, FRONT TRACKSHOCK, FRONT TRACK
-
11800329 VALVE, NEEDLEVALVE, NEEDLE
-
11800108 O-RINGO-RING
-
11800109 SCREW, BUTTON HEADSCREW, BUTTON HEAD
-
11800042 O-RING, BLEED SCREWO-RING, BLEED SCREW
-
21800039 SLEEVESLEEVE
-
31800336 BODY LOOPBODY LOOP
-
41800046 RETAINER, SPRINGRETAINER, SPRING
-
57518960 BODY, FRONT TRACKBODY, FRONT TRACK
-
61800293 SEAL, HEADSEAL, HEAD
-
71800046 SHAFTSHAFT
-
81800234 EYELET, SHAFTEYELET, SHAFT
-
91800033 BUSHINGBUSHING
-
101800030 O-RING, BODY LOOPO-RING, BODY LOOP
-
111800348 PISTON, IFPPISTON, IFP
-
121800028 O-RING, RESERVOIRO-RING, RESERVOIR
-
131800247 WEAR BANDWEAR BAND
-
141800031 NUT, CRIMPNUT, CRIMP
-
151800001 PISTONPISTON
-
161800027 O-RING, BODYO-RING, BODY
-
171800292 BUSHING, SHAFTBUSHING, SHAFT
-
181800295 SEAL, WIPERSEAL, WIPER
-
181800294 SEAL, U-CUPSEAL, U-CUP
-
195632166 RETAINER, SPRING, CONE, CASTRETAINER, SPRING, CONE, CAST
-
207518960 SCREWSCREW
-
215335719 SHAFTSHAFT
-
227547423 NUTNUT
-
235437525 SHIELD, SPRINGSHIELD, SPRING
-
247043147-067 SPRING, COMPRESSION (BLACK)SPRING, COMPRESSION (BLACK)
