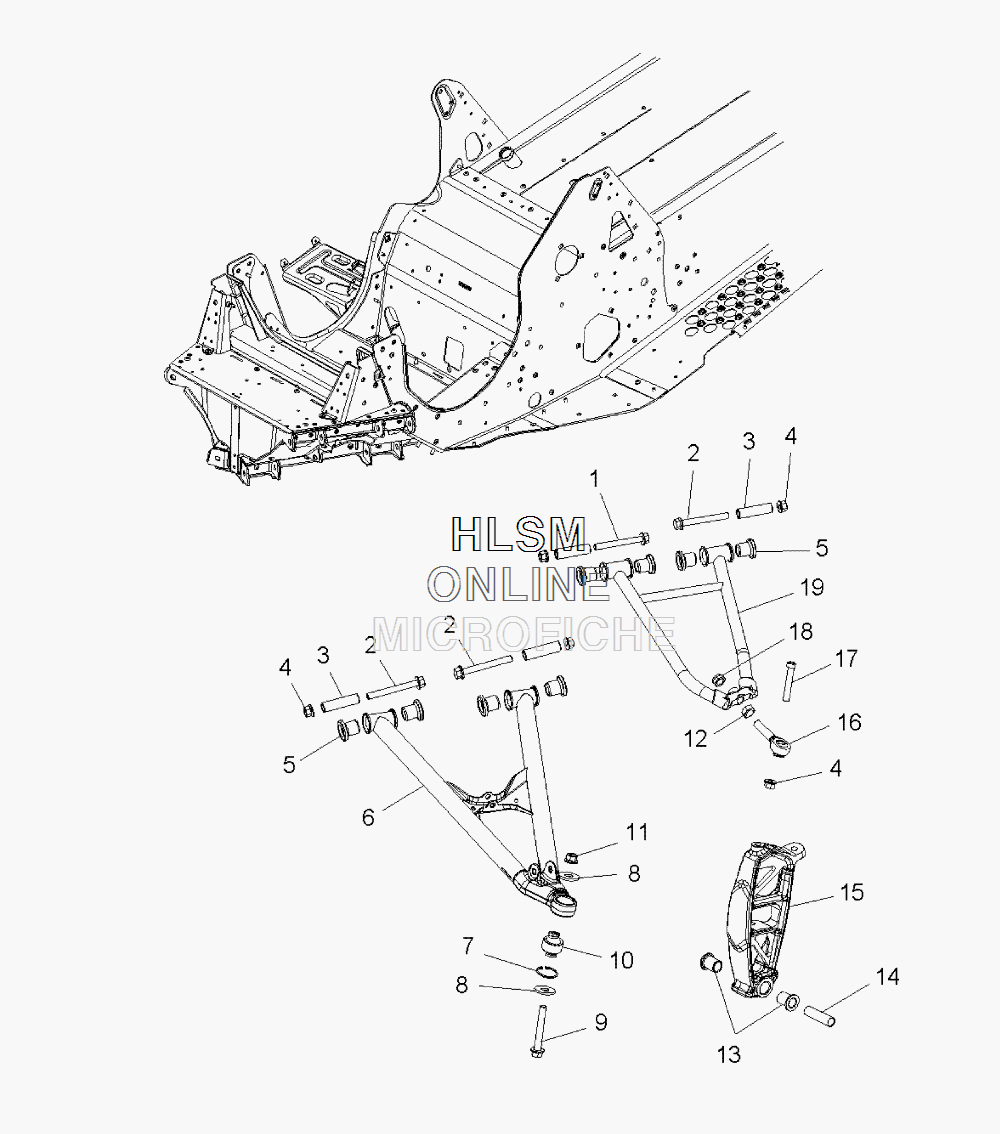

SUSPENSION- FRONT для Polaris 800 DRAGON RMK 155 (2010) [S10PG8] - 2010 года выпуска
-
№АртикулНазвание
-
17518942 SCREWSCREW
-
27518384 SCREWSCREW
-
35133860 SHAFT, PIVOTSHAFT, PIVOT
-
47547180 NUT, FLANGEDNUT, FLANGED
-
55434932 BUSHING, PIVOTBUSHING, PIVOT
-
62203971-067 KIT, LOWER CONTROL ARM, BLACK, LEFT HAND (INCL. 3-5,7,10)KIT, LOWER CONTROL ARM, BLACK, LEFT HAND (INCL. 3-5,7,10)
-
62203972-067 KIT, LOWER CONTROL ARM, BLACK, RIGHT HAND (INCL. 3-5,7,10)KIT, LOWER CONTROL ARM, BLACK, RIGHT HAND (INCL. 3-5,7,10)
-
77710539 RING, RETAININGRING, RETAINING
-
87556153 WASHERWASHER
-
97518478 SCREWSCREW
-
102203107 KIT, SPHERICAL BEARING, LOWER (INCL. 7)KIT, SPHERICAL BEARING, LOWER (INCL. 7)
-
117547344 NUTNUT
-
127542711 NUT, JAMNUT, JAM
-
135133983 BUSHING, SKI PIVOTBUSHING, SKI PIVOT
-
145010158 BUSHING, PIVOTBUSHING, PIVOT
-
151823487 ASM., SPINDLE, LEFT HAND (INCL. 13)ASM., SPINDLE, LEFT HAND (INCL. 13)
-
151823488 ASM., SPINDLE, RIGHT HAND (INCL. 13)ASM., SPINDLE, RIGHT HAND (INCL. 13)
-
167061145 ROD ENDROD END
-
177518428 SCREWSCREW
-
187547104 NUTNUT
-
192203023-067 KIT, UPPER CONTROL ARM (BLACK) LEFT HAND (INCL. 3-5,12,16,18)KIT, UPPER CONTROL ARM (BLACK) LEFT HAND (INCL. 3-5,12,16,18)
-
192203024-067 KIT, UPPER CONTROL ARM (BLACK) RIGHT HAND (INCL. 3-5,12,16,18)KIT, UPPER CONTROL ARM (BLACK) RIGHT HAND (INCL. 3-5,12,16,18)
