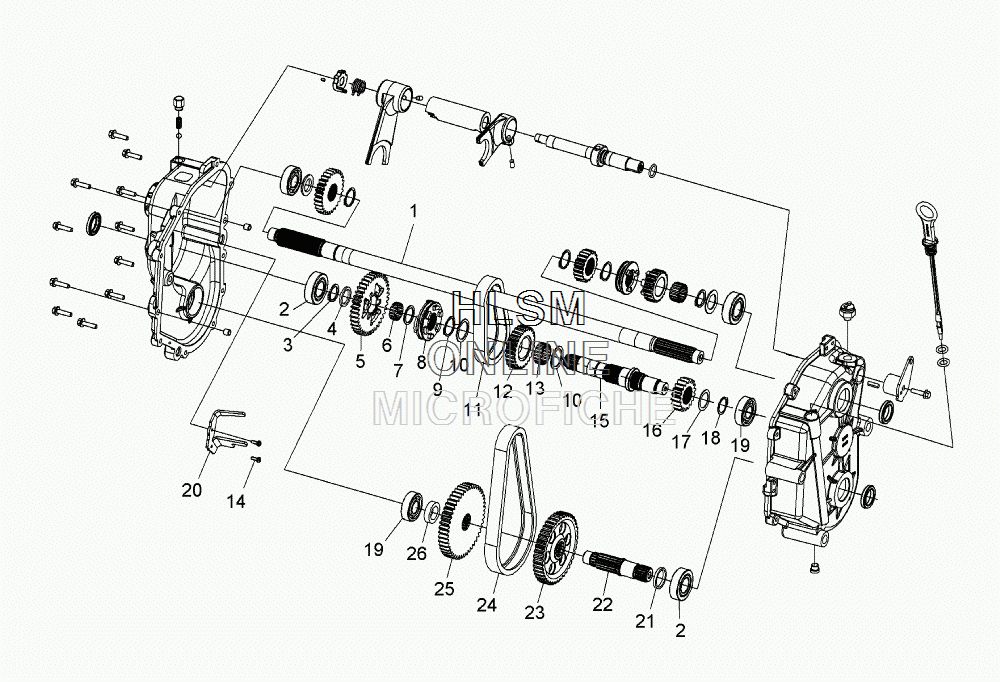

DRIVE TRAIN- GEARCASE (2 OF 2) для Polaris FS WIDETRAK IQ INTERNATIONAL (2010) [S10PU7EEL] - 2010 года выпуска
-
№АртикулНазвание
-
11332646 ASM., GEARCASE (INCL. 1-26 AND ALL FROM DRIVE TRAIN, GEARCASE (1 OF 2) PAGE.)ASM., GEARCASE (INCL. 1-26 AND ALL FROM DRIVE TRAIN, GEARCASE (1 OF 2) PAGE.)
-
16230393 JACKSHAFTJACKSHAFT
-
23514595 BEARING, BALLBEARING, BALL
-
37710602 RING, RETAINERRING, RETAINER
-
47556434 WASHER, THRUSTWASHER, THRUST
-
53233511 GEAR, 39TGEAR, 39T
-
63514589 BEARING, NEEDLEBEARING, NEEDLE
-
77556433 WASHER, THRUSTWASHER, THRUST
-
83233512 DOG, ENGAGEMENT, L/RDOG, ENGAGEMENT, L/R
-
97710606 RING, RETAININGRING, RETAINING
-
107556430 WASHER, THRUSTWASHER, THRUST
-
113222166 CHAINCHAIN
-
123233513 SPROCKET, 25TSPROCKET, 25T
-
133514590 BEARING, NEEDLEBEARING, NEEDLE
-
147518784 SCREWSCREW
-
153233514 SHAFT, REVERSESHAFT, REVERSE
-
163233515 GEAR, 18TGEAR, 18T
-
177556432 WASHERWASHER
-
187710603 RING, RETAININGRING, RETAINING
-
193514594 BEARING, BALLBEARING, BALL
-
205251122 DEFLECTOR, OILDEFLECTOR, OIL
-
215135972 SPACERSPACER
-
223233521 SHAFT, OUTPUTSHAFT, OUTPUT
-
233233519 SPROCKET, 41T, 15T SPLINESPROCKET, 41T, 15T SPLINE
-
243221113 CHAIN, SILENT, 66PCHAIN, SILENT, 66P
-
253233518 GEAR, 47TGEAR, 47T
-
265135973 SPACERSPACER
