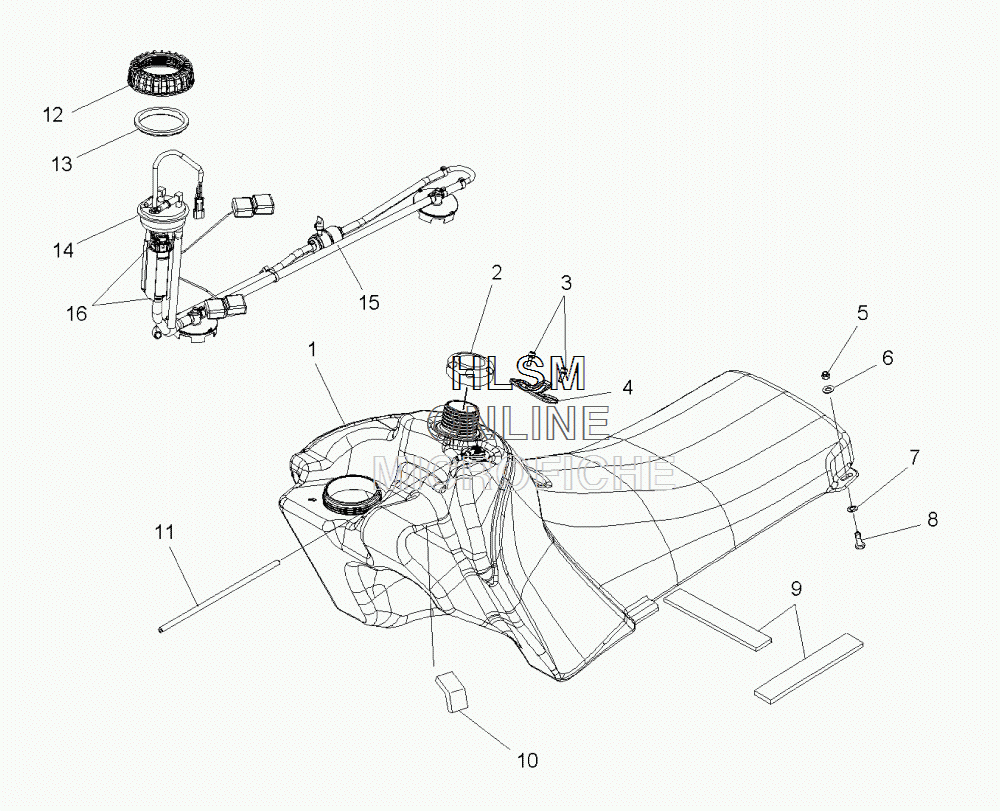

FUEL SYSTEM- FUEL TANK ASM. для Polaris FST IQ TOURING - TURBO SILVER (2010) [S10PT7FSM] - 2010 года выпуска
-
№АртикулНазвание
-
12520798 ASM., FUEL TANK, SVC (ALSO ORDER GASKET #13)ASM., FUEL TANK, SVC (ALSO ORDER GASKET #13)
-
25435534 CAP, FUEL TANKCAP, FUEL TANK
-
37515136 SCREWSCREW
-
45247431 BRACKET, SEAT MOUNTBRACKET, SEAT MOUNT
-
57542122 NUT, NYLOKNUT, NYLOK
-
67555859 WASHER, FLATWASHER, FLAT
-
77670154 RETAINER, BOLTRETAINER, BOLT
-
87515203 BOLTBOLT
-
95810290 PAD, BATTERYPAD, BATTERY
-
105813100 PAD, RUBBERPAD, RUBBER
-
118450126-72 LINE, VENTLINE, VENT
-
125436628 NUT, PFANUT, PFA
-
135413063 GASKET, PFAGASKET, PFA
-
142203302 KIT, PFA, SVCKIT, PFA, SVC
-
152877637 KIT, FUEL PICK-UP W/CLAMPS (INCL. GASKET, #13)KIT, FUEL PICK-UP W/CLAMPS (INCL. GASKET, #13)
-
167081502 CLAMP, OETIKER, 15.3CLAMP, OETIKER, 15.3
-
167081503 CLAMP, OETIKER, 14.5 (BLUE)CLAMP, OETIKER, 14.5 (BLUE)
